Doughty Super Lightweight Panel Clamp

Doughty Super Lightweight Panel Clamp

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes. Designed for holding panels with a thickness between 5mm (0.20″) and 10mm (0.39″). Available in polished silver or powder coated black.

Downloads:

User Manual

Key Features:

• Constructed from high tensile extruded aluminium
• Compatible with tube diameters from 48mm to 51mm (1.89″ – 2.01″)
• Designed to hold panels with thickness between 5mm (0.20″) and 10mm (0.39″)

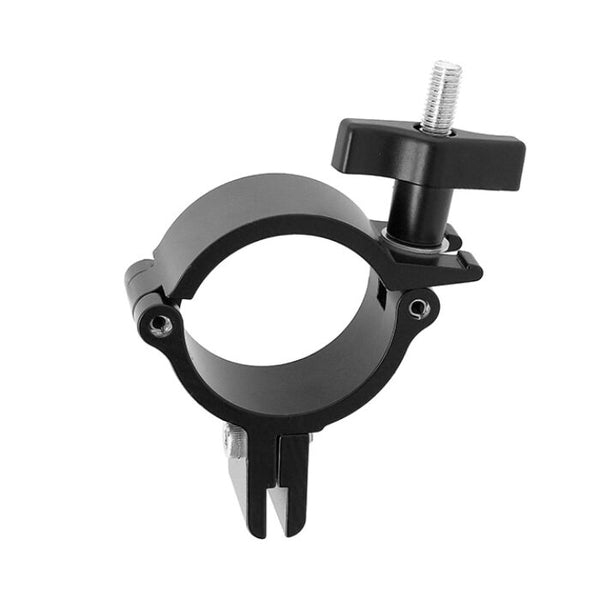

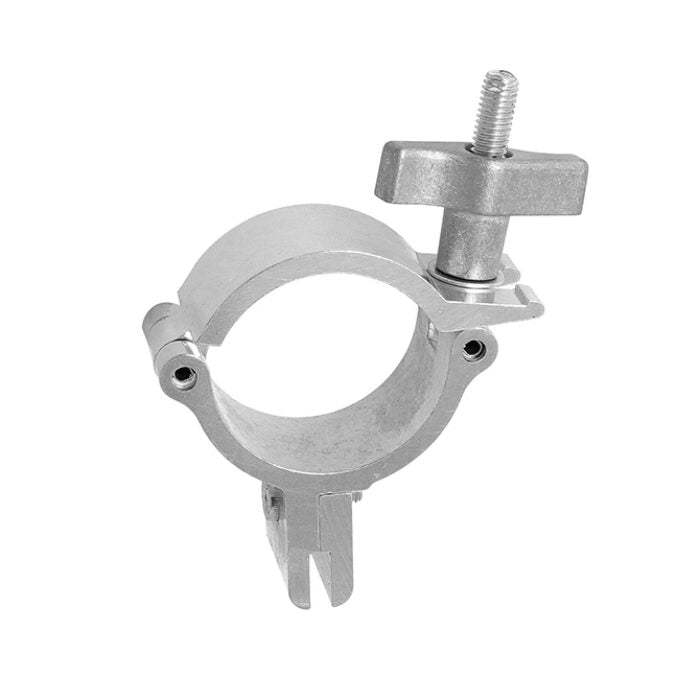

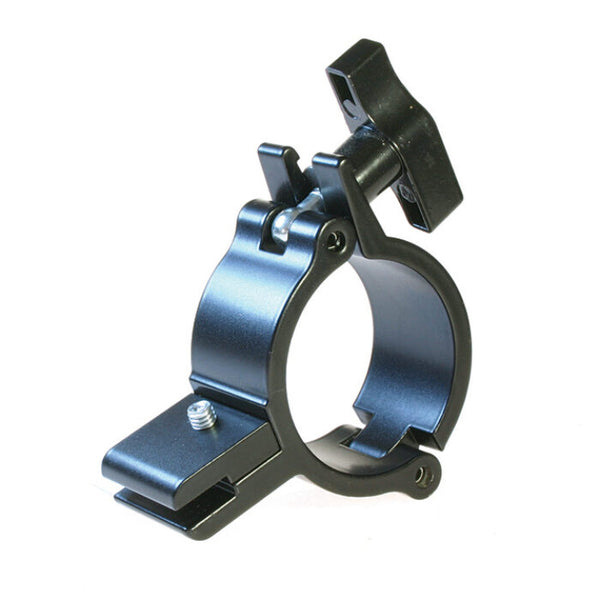

• Available in polished silver or powder coated black finish
• Compact clamp width of 30mm (1.18")

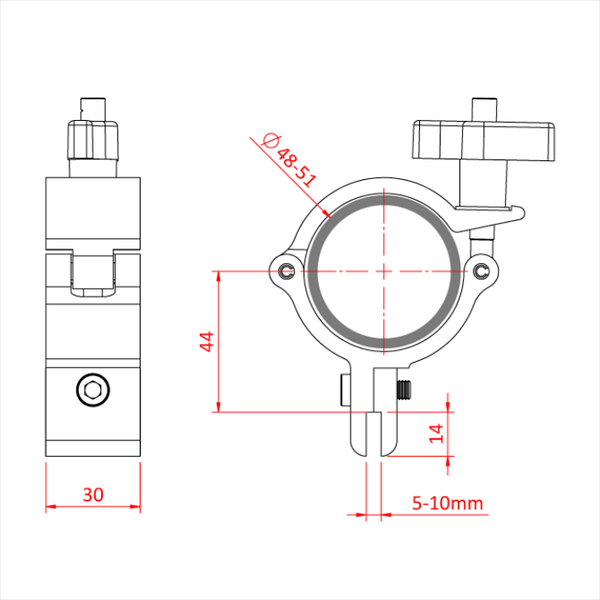

Specifications:

• WLL: NA
• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Panel Thickness Compatibility: 5mm (0.20″) – 10mm (0.39″)

References:

• Doughty Super Lightweight Panel Clamp Technical Data
• Doughty Engineering Product Catalogue
• Product Code: T58130 / T5813001
