Doughty Scaff Boom Arms

Doughty Scaff Boom Arms

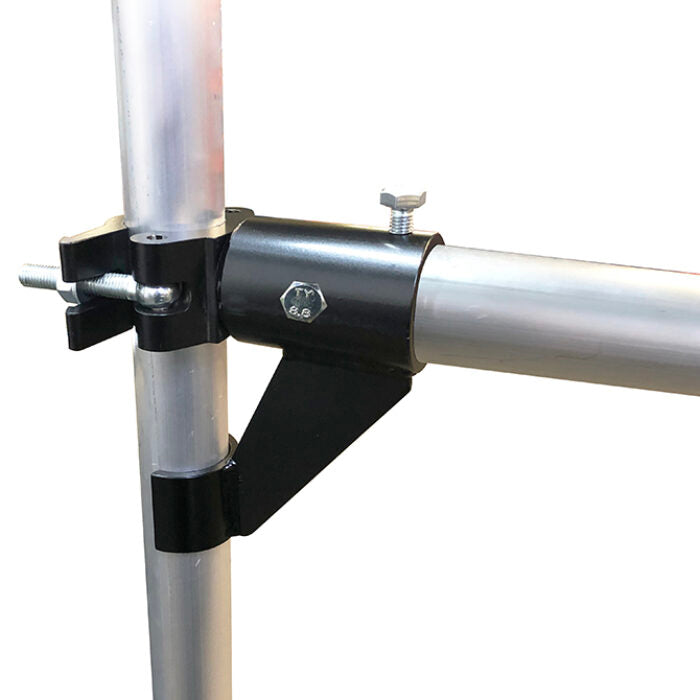

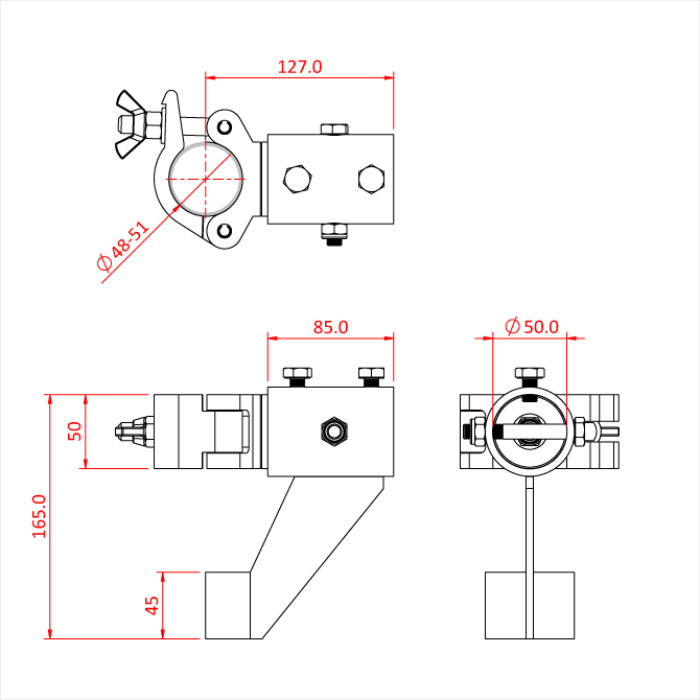

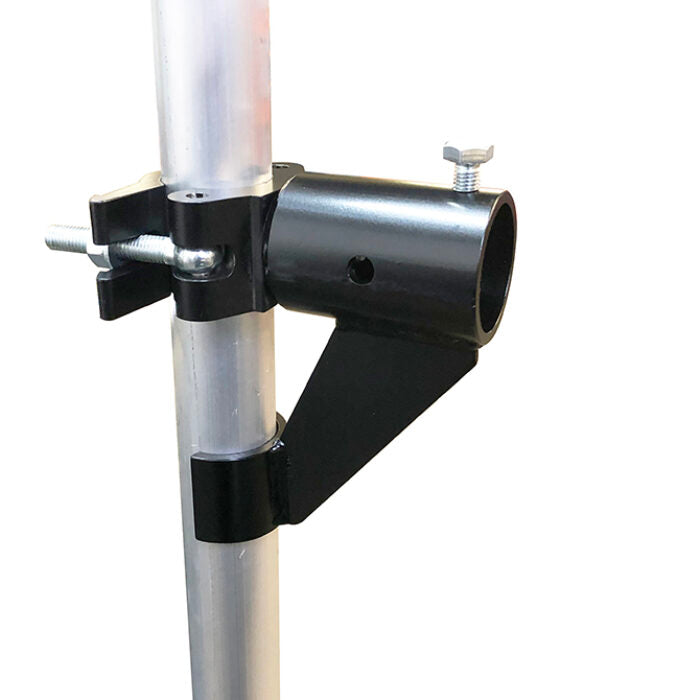

The Scaff Boom Arm enables you to create a Boom Arm to suit your needs. Featuring a 48mm (1.89″) receiver, lengths of 48.3mm (1.90″) diameter Aluminium Barrel or Galvanised Scaff Tube can be cut and drilled to suit.

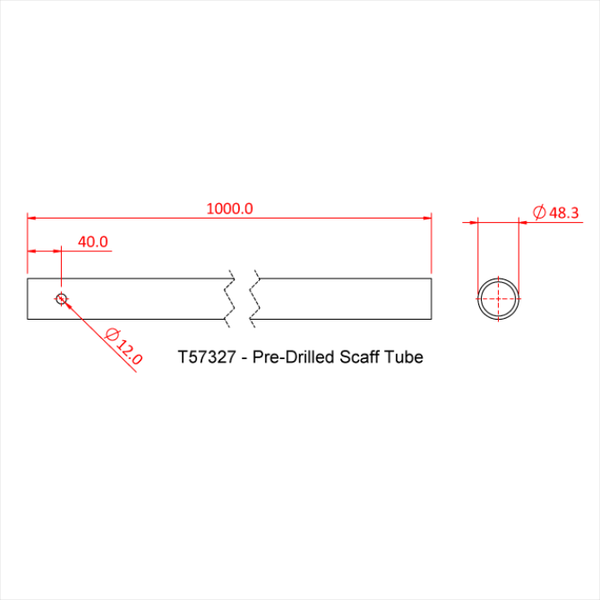

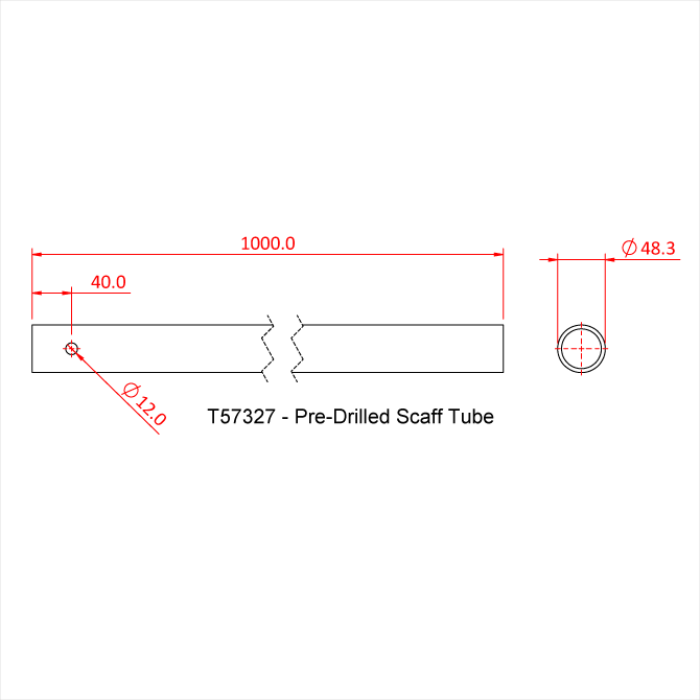

Suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tube. A pre-drilled 1m length of Aluminium Barrel which can be cut down to your requirements is available from stock (T57327).

Ideal for rigging small/medium moving heads and speakers etc.

Downloads:

User Manual

Key Features:

• Compatible with 48mm to 51mm (1.89″ – 2.01″) diameter tubing
• 48mm (1.89″) receiver for secure connection
• Use with Aluminium Barrel or Galvanised Scaff Tube
• Pre-drilled 1m Aluminium Barrel available (T57327)
• Perfect for rigging small/medium moving heads and speakers

Specifications:

• Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
• Clamp Width: 50mm (1.97")

References:

• Product Code: T57327
• Material Options: Aluminium Barrel or Galvanised Scaff Tube
• Receiver Size: 48mm (1.89″)
