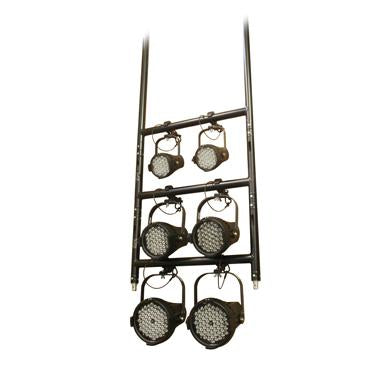

The H Frames are part of the Doughty Modular Rigging System designed to provide a safe and flexible rigging method for suspending luminaires from trusses or fixed tubes and barrels.

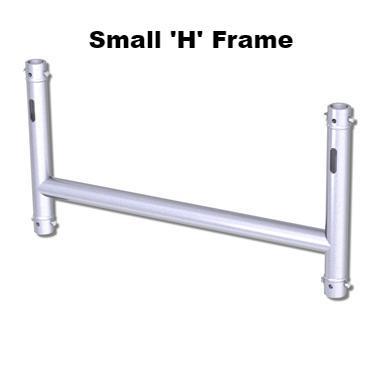

One Aluminum 'H' Frame is fitted with four conical couplers. Supplied with four tapered pins, these 'H' Frames can be connected together or connected to the large ‘H' Frames. Connections are made with Doughty's T45755 Connector.

A range of clamps/couplers are available fitted with a conical connector for suspension. Tank Trap Adapters are also available enabling the ‘H' Frames to be floor-standing.

Downloads:

User Manual

Key Features:

• Part of the Doughty Modular Rigging System for flexible luminaire suspension
• Constructed from aluminum and fitted with four conical couplers
• Includes four tapered pins for secure assembly and compatibility with large ‘H’ Frames
• Compatible with T45755 Connector for easy expansion
• Supports floor-standing setup using Tank Trap Adapters

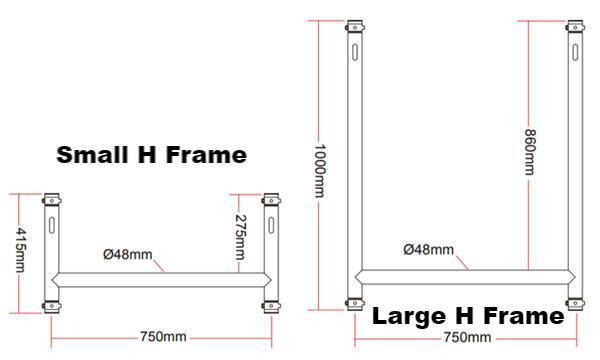

Specifications:

• SWL: 441 lbs, for both sizes
• Length: 30'', for both sizes
• Diameter: 2'', for both sizes
• Material: Aluminum
• Finish: Powder-painted in silver or Satin black

References:

• Doughty Modular Rigging System
• Doughty Connector T45755
• Doughty Tank Trap Adapter

Doughty Engineering, established in 1985, is a leading UK manufacturer specializing in rigging, suspension, and lifting equipment for the entertainment industry. As a member of ESTA and PLASA, Doughty upholds the highest standards in product safety and quality.
