Adaptive Technologies Group MM-705-WM JBL 705P Studio Monitor Audio Mount
Adaptive Technologies Group MM-705-WM JBL 705P Studio Monitor Audio Mount $176.00

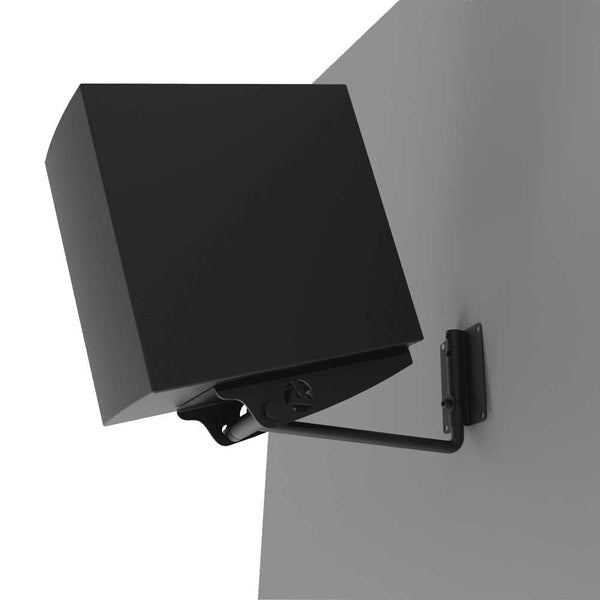

  • Adaptive Technologies Group MM-705-WM wall mount with studio monitor aimed level, arm below the speaker

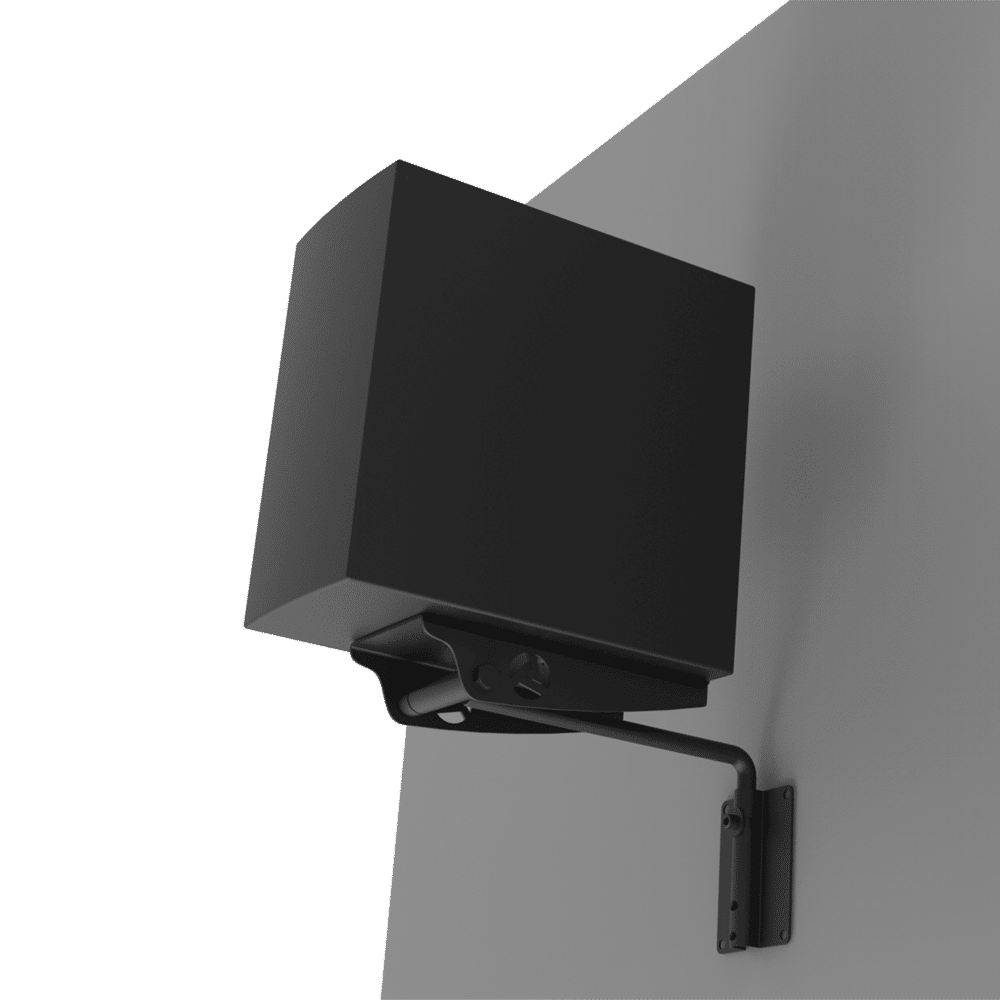

  • Adaptive Technologies Group MM-705-WM wall mount holding a black studio monitor tilted upward - imagen 2

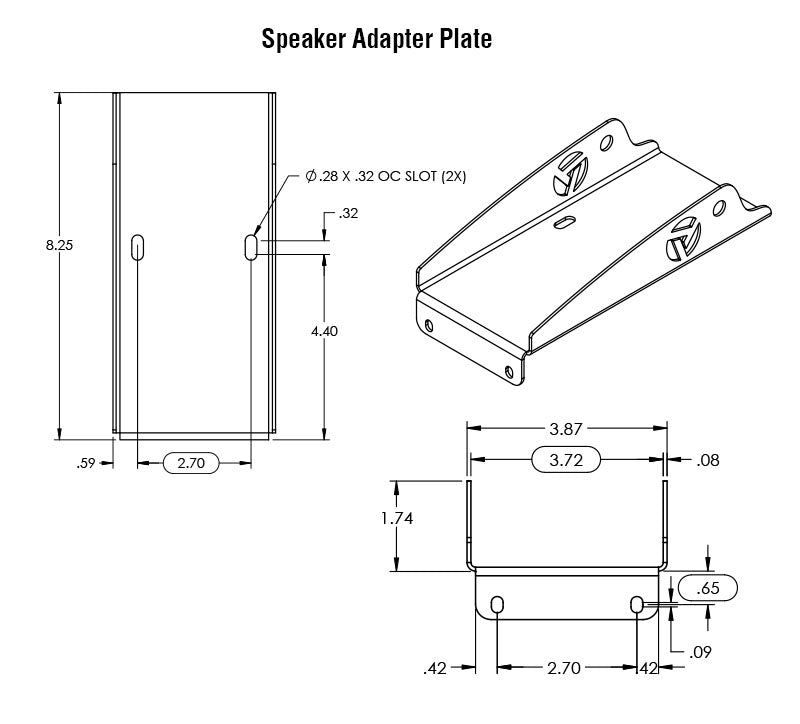

  • Adaptive Technologies Group MM-705-WM speaker adapter plate dimension drawing - imagen 3

Adaptive Technologies Group MM-705-WM JBL 705P Studio Monitor Audio Mount

Adaptive Technologies Group |
SKU: MM-705-WM
$176.00
  • Made for the JBL 705P: Matched adapter plate gives a clean, secure fit with no extra parts.
  • Pan and tilt with locking: Aim each monitor at the mix position for accurate stereo imaging.
  • 25 lb (11.3 kg) WLL at 7:1: High safety margin for permanent studio wall installs.
  • Frees desk space: Moves monitors off the console and onto the wall in studios and edit suites.
View Full Description Technical Data
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa

Often Bought Together

Select items you want to add together

Included
Adaptive Technologies Group MM-705-WM JBL 705P Studio Monitor Audio Mount
+
Adaptive Technologies Group SC-188 Safety Cable Silver
Please select country
Please enter correct zip code
Test heading

Adaptive Technologies Group MM-705-WM JBL 705P Studio Monitor Wall Mount

The Adaptive Technologies Group MM-705-WM is a pan and tilt studio monitor wall mount designed for the JBL 705P. This dedicated JBL 705P wall mount frees up desk and counter space and lets you aim and lock each monitor for accurate stereo and surround listening.

It is rated 25 lb (11.3 kg) at a 7:1 design factor and weighs 3 lb (1.3 kg). Each mount holds one monitor, so order two for a stereo pair.

Key Features and Highlights

  • Made for the JBL 705P: Matched adapter plate.
  • Pan and tilt: Independent adjustments that lock in place.
  • 25 lb (11.3 kg) WLL: 7:1 design factor.
  • Complete kit: Wall plate, support arm, pivot rod and hardware.

What's in the Box

  • 1 adapter plate
  • 1 wall plate bracket
  • 1 support arm
  • 1 pivot rod
  • 1 hardware kit

Who Is This Product For?

Ideal for: Recording studios, post production rooms and other reference listening spaces that need a secure JBL 705P mount on the wall.

Important: Always install safety cables.

Specifications

  • Part Number: MM-705-WM
  • Compatible Speaker: JBL 705P
  • WLL (Working Load Limit): 25 lb (11.3 kg) max
  • Design Factor: 7:1
  • Material: Steel alloy components
  • Finish: Black powder coat
  • Net Weight: 3 lb (1.3 kg)

Explore Adaptive Technologies Group Equipment

Explore the complete Adaptive Technologies Group collection for professional rigging and loudspeaker mounting equipment.

Shop more speaker and studio monitor mounts in our Brackets collection and the full Rigging Hardware for Live Events range.

For bulk orders, project requirements or pricing, Request a Quote. Have questions about compatibility or product selection? Contact Us.

Frequently Asked Questions

Does the MM-705-WM fit speakers other than the JBL 705P?
The MM-705-WM is designed specifically for the JBL 705P, with an adapter plate matched to that monitor. For other loudspeakers, choose a MultiMount model that matches your speaker’s mounting pattern and weight.
How many MM-705-WM studio monitor wall mounts do I need?
Each MM-705-WM holds one JBL 705P monitor. For a standard stereo setup, order two mounts. For a surround system, order one mount for every JBL 705P you plan to install on the wall.
What is included with the MM-705-WM?
The MM-705-WM comes as a complete kit with an adapter plate, wall plate bracket, support arm, pivot rod and hardware kit. Safety cables are not listed in the kit, so order them separately for a secure installation.
