8' FT-X™ EdgeCore™ Class 2 Leading Edge Personal SRL, Single-leg with Steel Snap Hook
Product No. 84108SP1
Regular price
$368.38 USD
Shipping calculator
Please enter correct zip code
Payment methods
Product details
8' FT-X™ EdgeCore™ Class 2 Leading Edge Personal SRL, Single-leg with Steel Snap Hook
FEATURES
- Innovative EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cable used in most Class 2 SRL-P’s
- Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
- Features comprehensive fall clearance charts and tables inside the energy absorber cover
- Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively

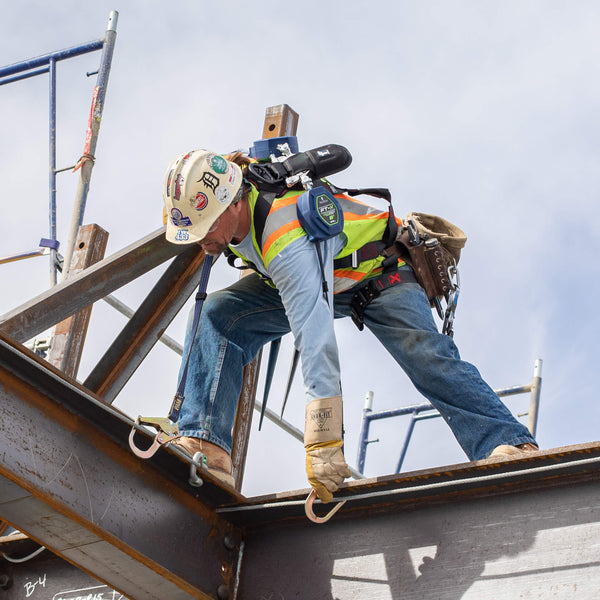

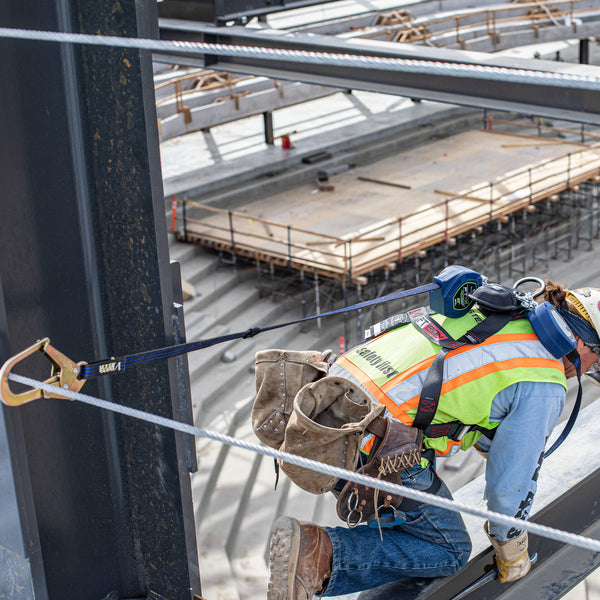

- Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
- Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
- Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper
MATERIAL SPECIFICATIONS
Lifeline: EdgeCore™; 5,000 lb min. static strength
Energy Absorber: Polyester tear-away
Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Dorsal Connector: Aluminum alloy; 3,600 lb min.
PERFORMANCE SPECIFICATIONS
Static Strength: 3,600 lb min.
ANSI SRL Class/Type: Class 2 SRL-P
Avg. Arrest Force: 1,350 lb max.
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 42"
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 420 lb max.
DOWNLOADS
COMPLIANT WITH:
ANSI Z359.14-2021
OSHA 1926.502 and 1910.66
