• Single-leg with Steel Snap Hook

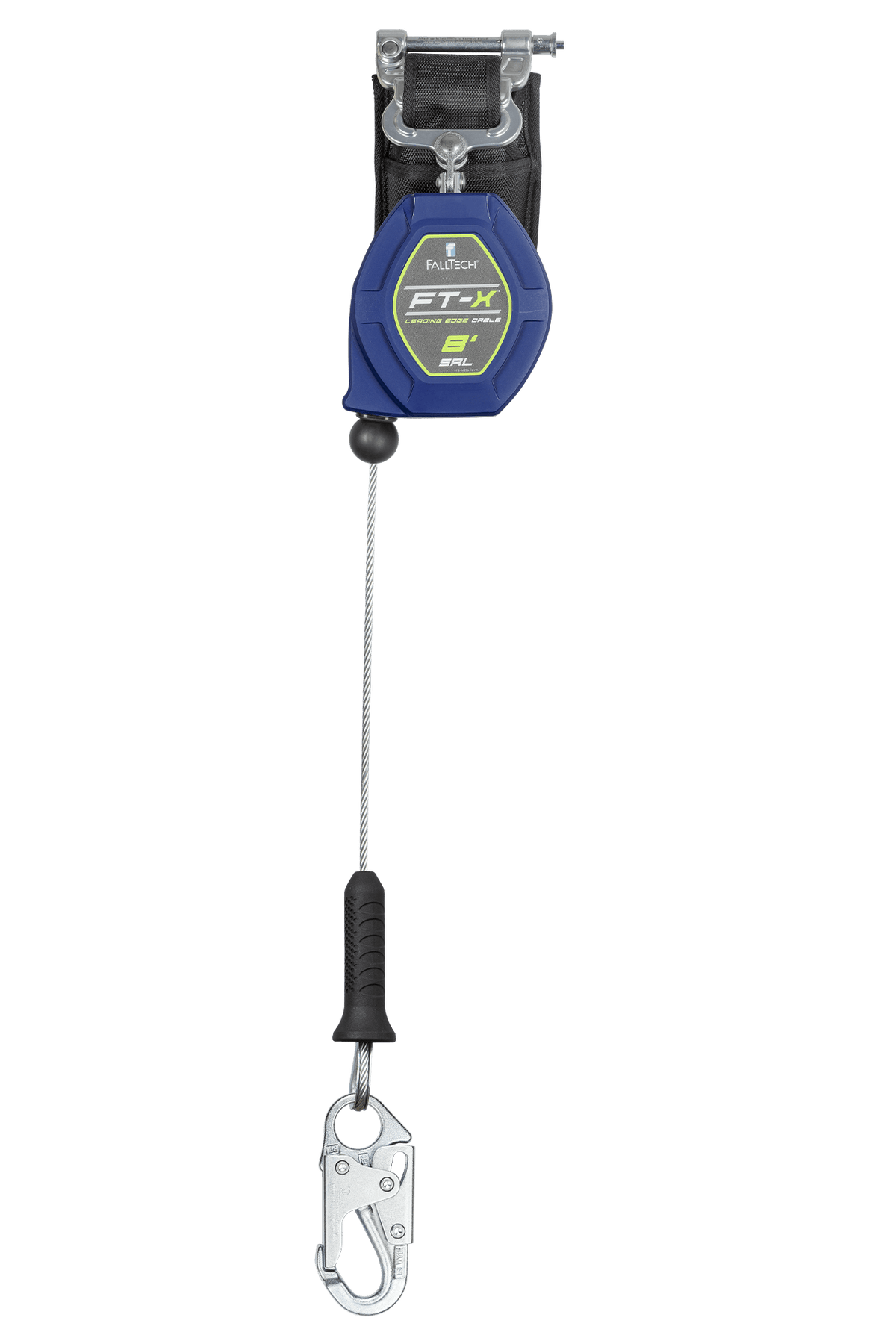

8' FT-X™ Cable Class 2 Leading Edge Personal SRL, Single-leg with Steel Snap Hook

Product No. 82808SP1

Regular price $320.40 USD
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

8' FT-X™ Cable Class 2 Leading Edge Personal SRL, Single-leg with Steel Snap Hook


FEATURES

  • Lightest SRL in its class with less than 5 lbs. of effective weight on the back while device is in use
  • Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
  • Features comprehensive fall clearance charts and tables inside the energy absorber cover
  • Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
  • Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
  • Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
  • Complies with ANSI Z359.14-2021 Class 2 SRL-P.

MATERIAL  SPECIFICATIONS

Cable:                                  3/16" galvanized steel; 3,600 lb min. static strength
Energy Absorber:              Polyester tear-away
Anchorage Connector:     Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
Dorsal Connector:            Aluminum alloy; 3,600 lb min.

PERFORMANCE  SPECIFICATIONS

Static Strength:                        3,600 lb min.
ANSI SRL Class/Type:            Class 2 SRL-P
Avg. Arrest Force:                    1,350 lb max.
Max. Arrest Force:                   1,800 lb
Max. Arrest Distance:              42"
ANSI User Capacity:                130 to 310 lb max.
OSHA User Capacity:              130 to 420 lb max.

DOWNLOADS


COMPLIANT  WITH:

OSHA 1926.502 and 1910.66
ANSI Z359.14-2021
