3M™ DBI-SALA® ExoFit STRATA™ Construction Style Positioning Harness (Tri-Lock Revolver™)

• DESCRIPTION
• SPECIFICATIONS
• FEATURES
• VIDEO + RESOURCES

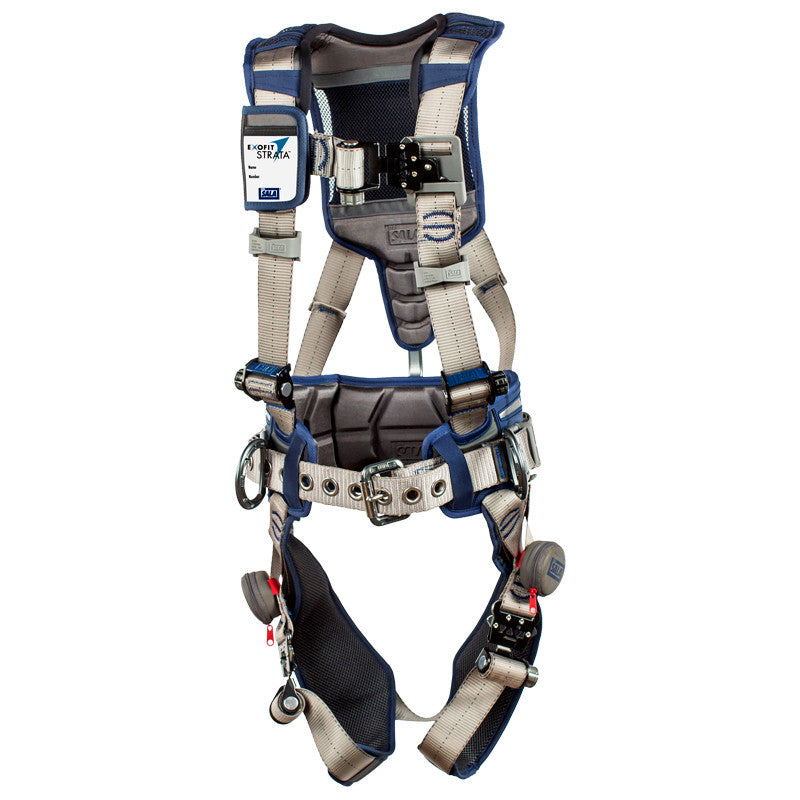

3M™ DBI-SALA® ExoFit STRATA™ Construction Style Positioning Harness

The 3M™ DBI-SALA® ExoFit STRATA™ Construction Style Positioning Harness is a multi-purpose harness, perfect for a variety of jobs and applications. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. While no two construction sites are the same, they all share similar obstacles and hazards. This harness has features for all-day comfort and characteristics that address specific challenges on construction sites, including protective shoulder caps, EZ-Link™ Technology for simple SRL connections, and comfort belt and back pad for lumbar support that delivers advanced breathability. This harness also includes a triple-lock revolving torso buckle, a stand-up lightweight aluminum dorsal D-ring, Tri-Lock Revolver™ quick connect buckles, body belt/hip pad with thermoformed EVA padding and lightweight aluminum side D-rings, a revolving vertical torso buckle as well as integrated suspension trauma straps.

With its exclusive weight distribution system, this harness literally takes the weight off your shoulders and redistributes it down to your hips, dramatically reducing shoulder strain and fatigue. The ExoFit STRATA™ Construction Style Positioning Harness includes great features for the hardest working professionals.

For full list of ExoFit STRATA™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit STRATA™

The ExoFit™ STRATA™ brand of full-body harnesses are the most innovative safety harnesses on the market. PolarMesh™ Padding allows for great airflow that also increases user comfort. The ExoFit™ STRATA™ Full-Body Harnesses are ideal for workers looking for a light-wearing harness that wear personal SRLs.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1112535 - 7.75 lbs
  1112536 - 7.8 lbs
  1112537 - 7.85 lbs
  1112538 - 7.9 lbs
• Tensile Strength: 6000 lbs
• Body Belt: Yes
• Subpelvic Strap: Yes
• Buckle Type: Tri-Lock Revolver™ Quick Connect
• D-ring Material: Aircraft Grade Anodized Forged Aluminum
• Chest Buckle Material: Zinc Plated Steel
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Back/Hip, Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Oil & Gas, Transportation
• Standards: ANSI Z359.1, ANSI Z359.11, OSHA 1910.66, OSHA 1926.502

FEATURES

• LIFTech™ weight distribution system
• PolarMesh™ breathable mesh back pad
• EZ-Link™ personal SRL adapter

• Tri-Lock Revolver™ quick connect buckles
• Triple-lock revolving torso buckle
• Stand-up lightweight aluminum dorsal D-ring
• Body belt/hip pad with thermoformed EVA padding and lightweight aluminum side D-rings
• Repel™ webbing
• Built-in lanyard keepers that automatically reset
• Revolving vertical torso buckle
• Impact Indicator
• Integrated suspension trauma straps
• Customizable name tag
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)
