3M™ DBI-SALA® ExoFit NEX™ Construction Style Positioning/Climbing Harness

• DESCRIPTION
• SPECIFICATIONS
• FEATURES
• VIDEO + RESOURCES

3M™ DBI-SALA® ExoFit NEX™ Construction Style Positioning/Climbing Harness

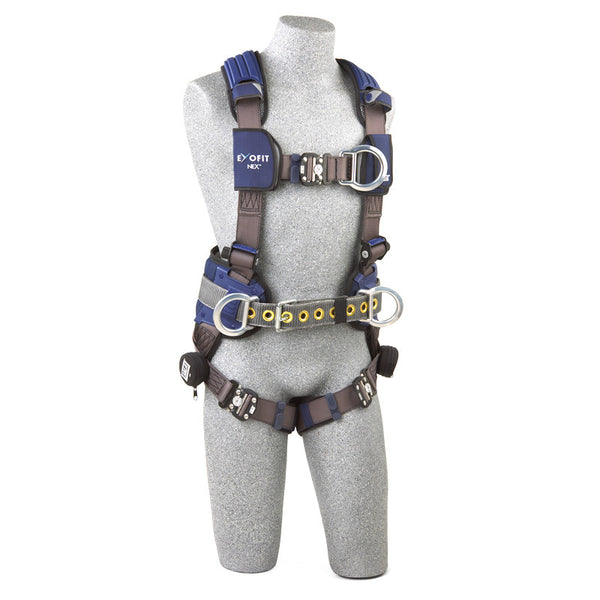

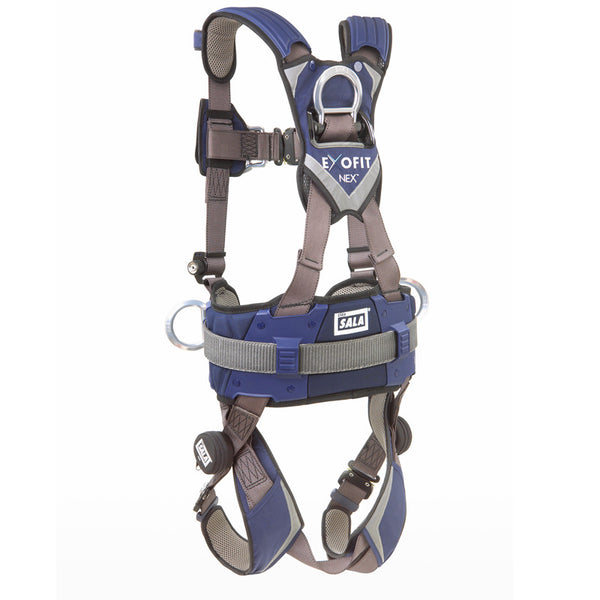

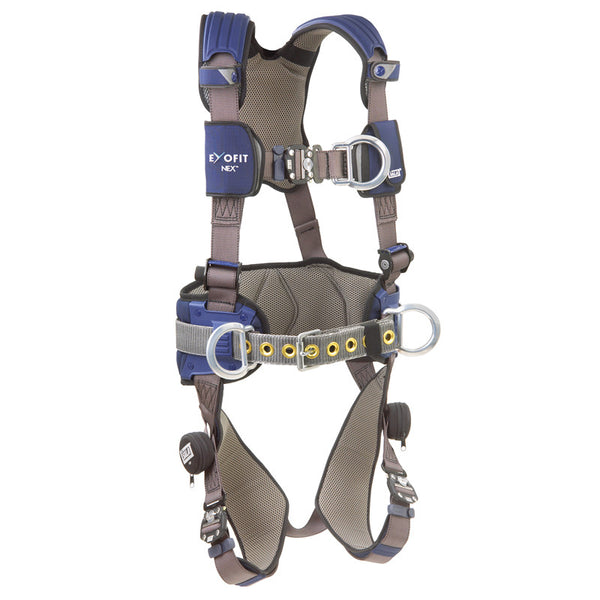

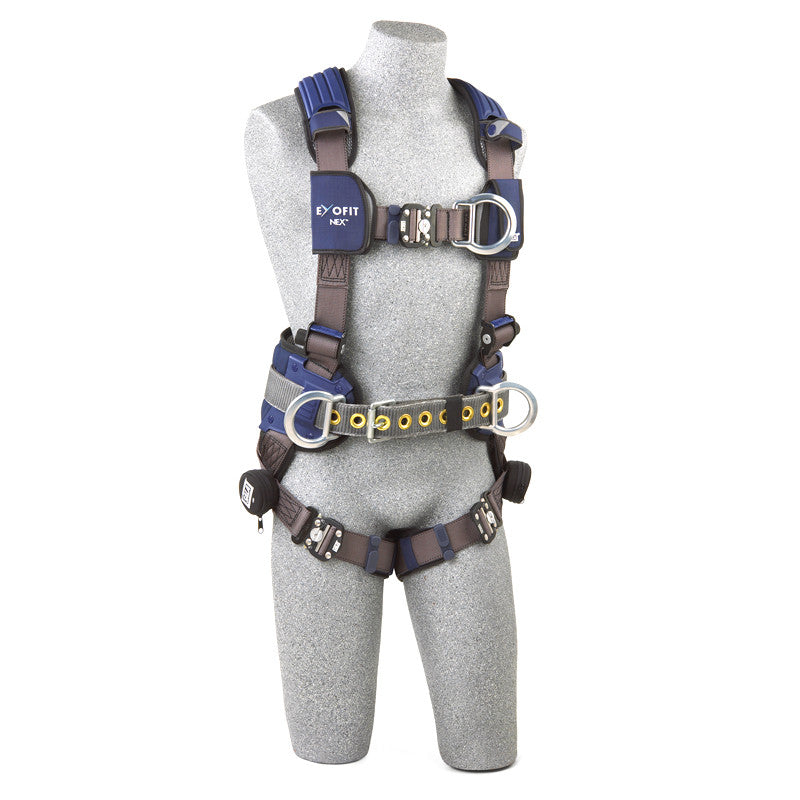

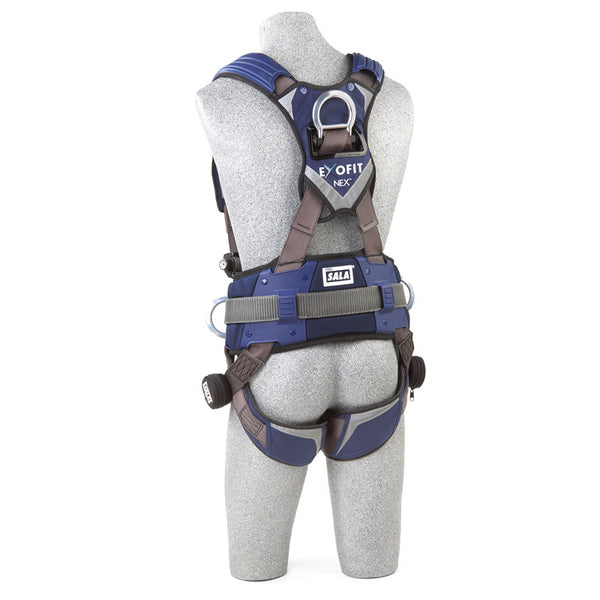

The 3M™ DBI-SALA® ExoFit NEX™ Construction Style Positioning/Climbing Harness is a versatile design that is ideal for general construction work. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. It features hybrid shoulder, back and leg comfort padding, a stand-up lightweight aluminum back D-ring, lightweight aluminum front D-ring, Duo-Lok™ quick connect chest and leg straps, protective shoulder caps, a revolving vertical torso buckle as well as integrated trauma straps. This harness also has excellent tool carrying capabilities thanks to its body belt/hip pad with lightweight aluminum side D-rings which prevent equipment and tool pouches from sagging, ultimately reducing abrasion in vulnerable areas. The ExoFit Nex™ Construction Style Positioning/Climbing Harness is easy to wear and includes great features for the hardest working professionals.

For a full list of ExoFit NEX™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit NEX™

ExoFit NEX™ harnesses are the most advanced safety harnesses in the industry. These fall protection products are the result of years of experience and ongoing research to identify the best materials and features for the worker’s benefit. These harnesses are manufactured to be lightweight with speed and efficiency as product requirements. ExoFit NEX™ full-body harnesses provide the freedom and confidence for workers to perform at their maximum potential.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1113151 - 6.5 lbs
  1113154 - 6.65 lbs
  1113157 - 6.9 lbs
  1113160 - 7 lbs
• Body Belt: Yes
• Buckle Type: Duo-Lok™ Quick Connect
• Chest Buckle Material: Zinc Plated Steel
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Back/Hip, Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.3, ANSI Z359.4, OSHA 1910.66, OSHA 1926.502

FEATURES

• Hybrid shoulder, back and leg comfort padding

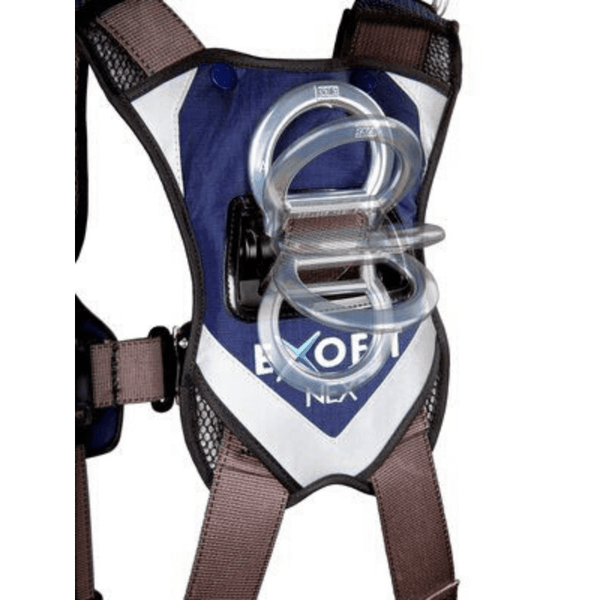

• Stand-up lightweight aluminum back D-ring
• Duo-Lok™ quick connect chest and leg straps
• Lightweight aluminum front D-ring
• Body belt/hip pad with lightweight aluminum side D-rings
• Repel™ webbing
• Protective shoulder caps
• Built-in lanyard keepers
• Revolving vertical torso buckle
• Impact Indicator
• Integrated trauma straps
• Built-in reflective materials
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

ExoFit NEX™ Full Body Harness Instructions

Certificates

1113151: Certificate of Compliance, Declaration of Conformity

1113154: Certificate of Compliance, Declaration of Conformity

1113157: Certificate of Compliance, Declaration of Conformity

1113160: Certificate of Compliance, Declaration of Conformity
