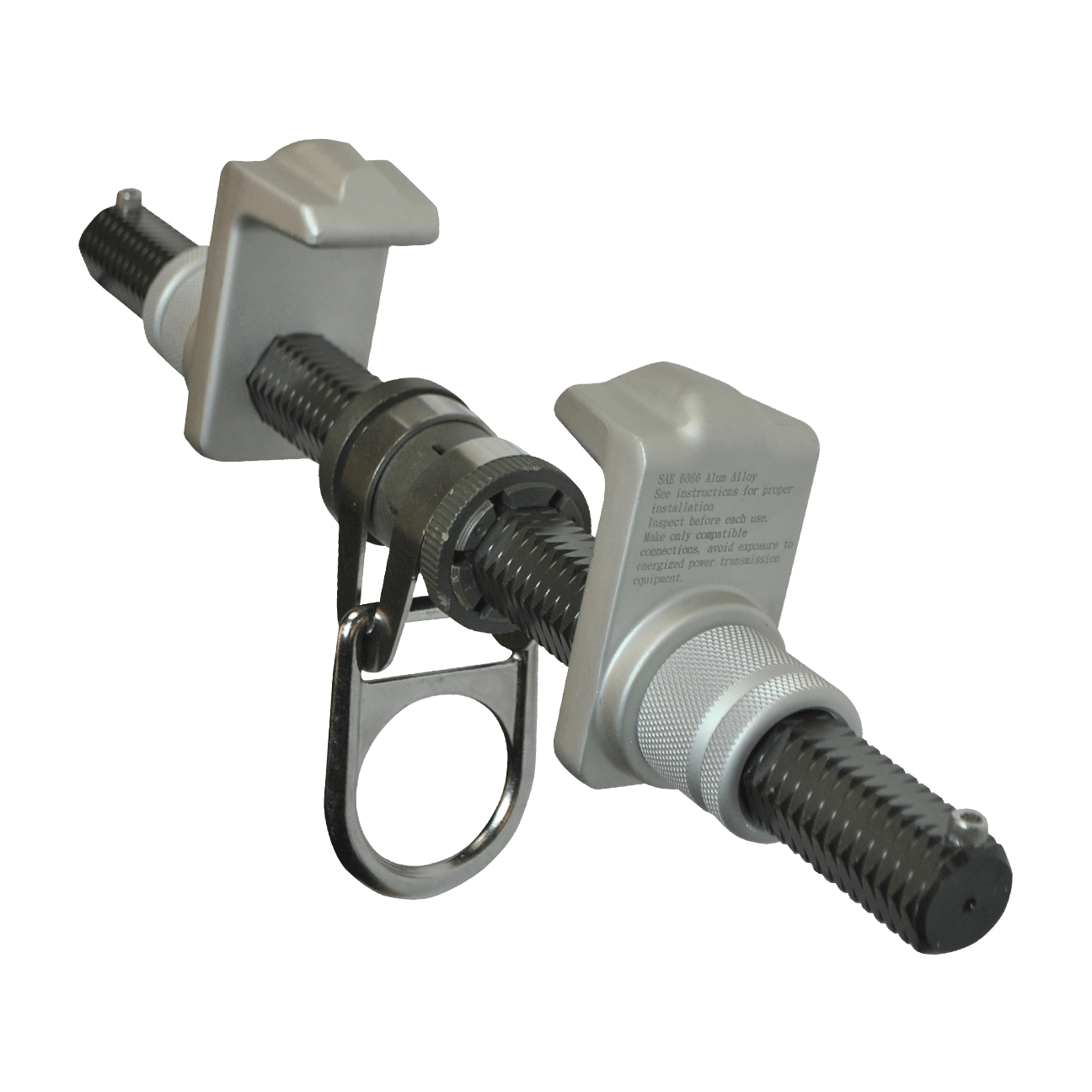

18 ¼" Trailing Beam Anchor with Dual-clamp Adjustment

Product No. 7534

Regular price $375.19 $375.19

Save up to $50 this Labor Day Weekend. Details Here .

Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Product details

18 ¼" Trailing Beam Anchor with Dual-clamp Adjustment

FEATURES

  • Features threaded aluminum crossbar and jaws with knurled rings for fine adjustment
  • Exclusive recessed under-jaw ball bearings provide improved mobility.
  • Fits beam flanges from 3" to 18-1/4" wide and up to 1" thick
  • For temporary mobile use on horizontal I-beams
  • Complies with ANSI Z359.18-2017

MATERIAL  SPECIFICATIONS

D-ring:                                           Plated alloy steel; 5,000 lb min. static strength
Crossbar:                                      Aluminum alloy
Clamp Jaws:                                Aluminum alloy

PERFORMANCE  SPECIFICATIONS

Static Strength:                                     5,000 lb min.
ANSI User Capacity:                            130 to 310 lb max.
OSHA User Capacity:                           130 to 425 lb max.

DOWNLOADS

Instruction Manual
Declaration of Conformity

COMPLIANT  WITH:

ANSI Z359.18-2017
OSHA 1926.502 and 1910.66
