CM Limit Switch Shaft Assembly - 44 Tpi (V1)
Product No. 00000521
Regular price
$117.20
$117.20
Price match policy guaranteed
Save $25 when you subscribe to our newsletter (for orders over $250).
Subscribe now
Shipping calculator
Please enter correct zip code
Payment methods
Product details

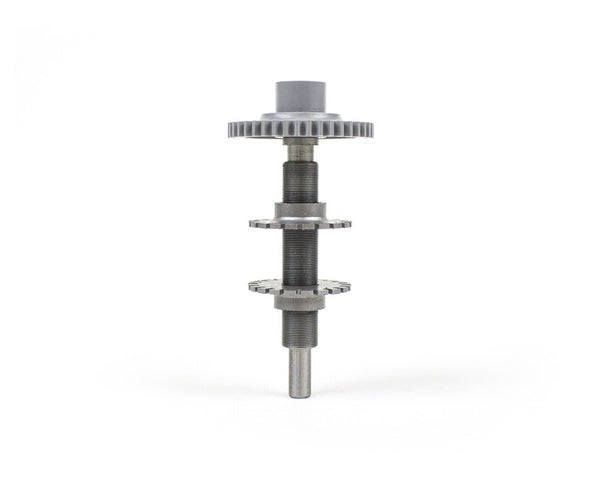

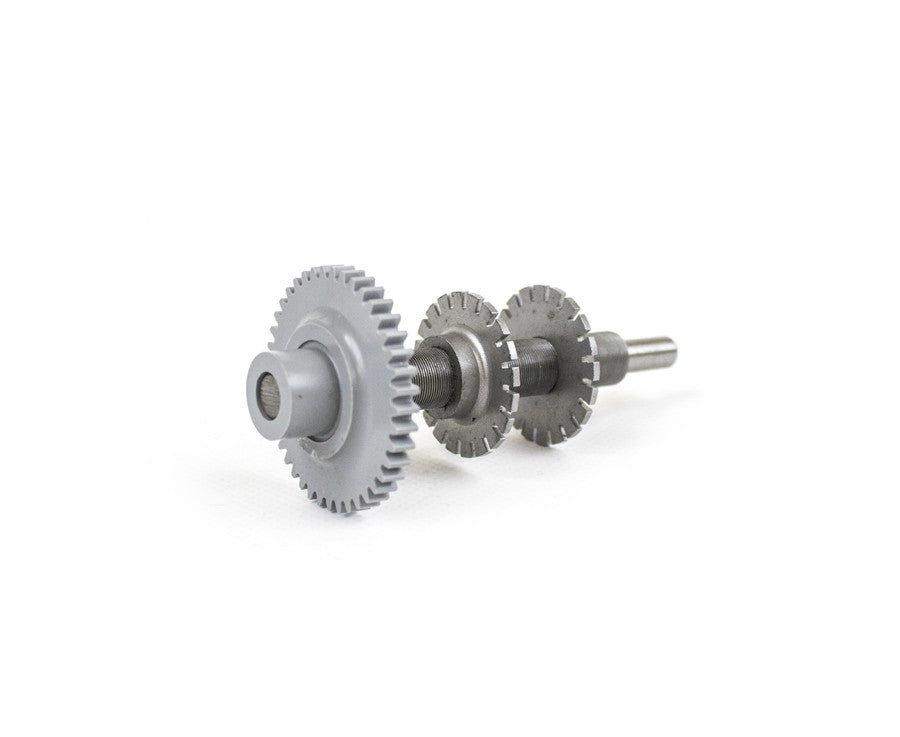

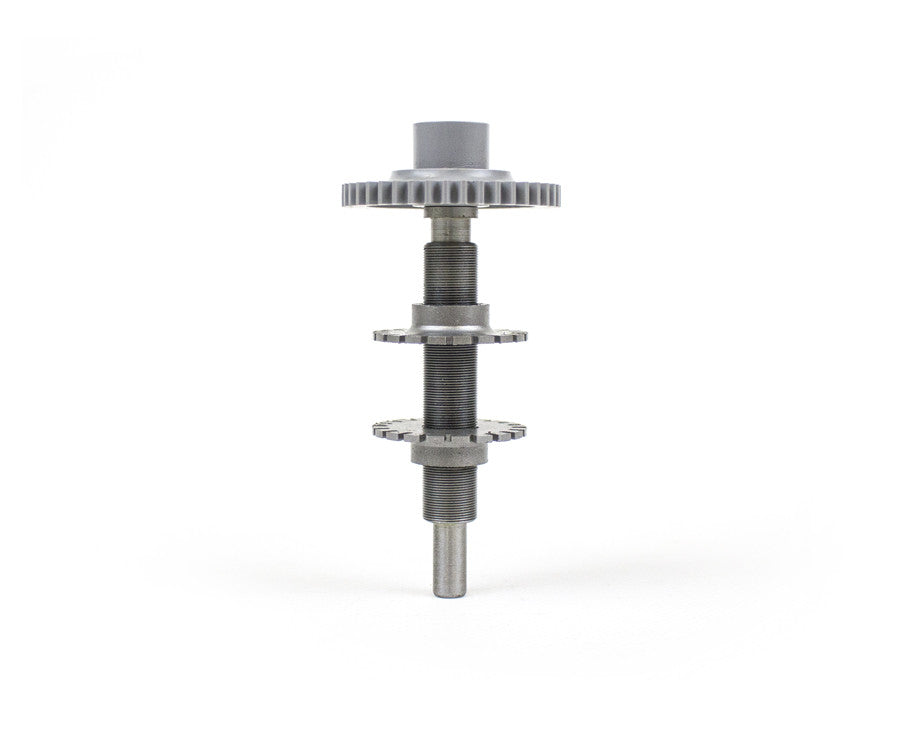

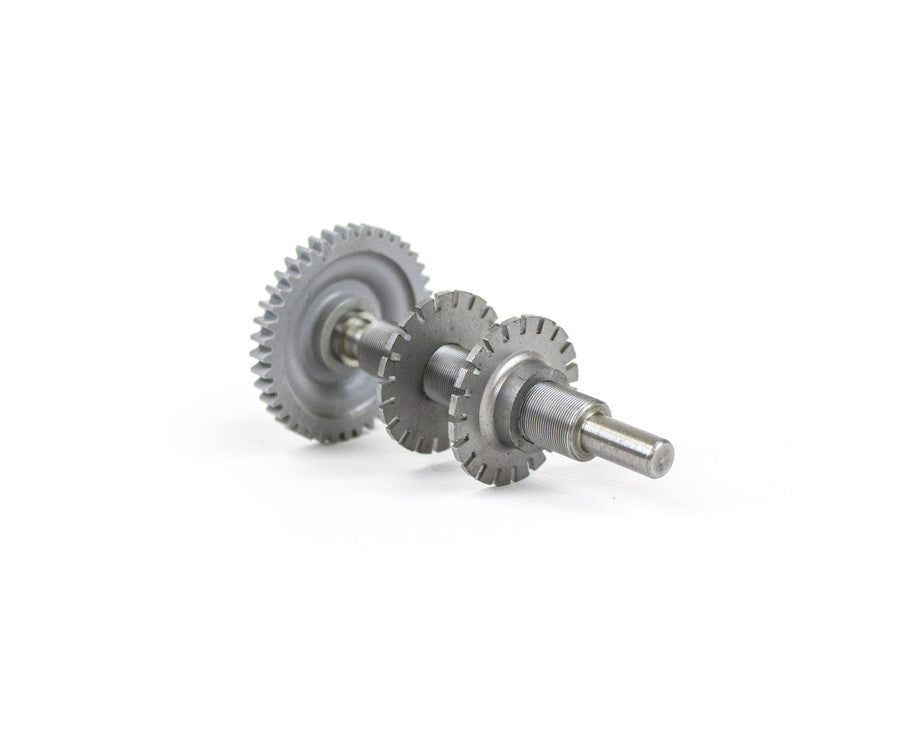

This Limit Switch Shaft assembly contains a 44 TPI shaft and gearing for Small Frame Next Gen Lodestar hoists. This assembly allows the hoist to have a maximum lift of 105' for Model B & F hoists and 206' for Model C hoists. Reference the chart below for the maximum lift of different Limit Switch Shafts:
| Maximum Lift - 44 TPI Shaft | Maximum Lift - 56 TPI Shaft | Maximum Lift - 64 TPI Shaft | ||||
| Hoist Model | meters | feet | meters | feet | meters | feet |
| B & F | 32 | 105 | 41 | 133 | 46 | 152 |
| C | 63 | 206 | 80 | 262 | 91 | 299 |
