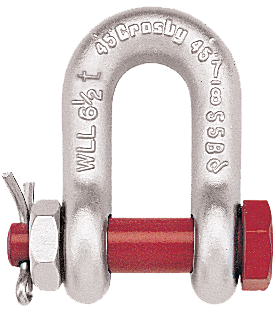

Crosby G-2150 Galvanized Bolt Type Chain Shackles

Product No. 1019793

Regular price $39.90 USD Sale price $33.92 USD
SIZE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

Look for the Red Pin®. . . the mark of genuine Crosby quality.

FEATURES

  • 2 thru 85 metric tons, grade 6.
  • Working Load Limit and grade “6” permanently shown on every shackle.
  • Forged — Quenched and Tempered, with alloy bolts.
  • Hot Dip galvanized.
  • Fatigue rated (1/2t - 55t).
  • Shackles 25t and larger are RFID EQUIPPED.
  • Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F). • 3.25t through 25t bow and bolt are certified to meet charpy impact testing of 42 joules (31 ft-Ibs.) min. avg. at -20 degree C (-4 degree F)
  • Meets or exceeds all requirements of ASME B30.26.
  • Sizes 1/2 - 25t meet the performance requirements of EN13889:2003.
  • Shackles 55 metric tons and smaller can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order.
  • Type Approval certification in accordance with ABS 2007 Steel Vessel Rules 1-11-17.7 and ABS Guide for Certification on Cranes available. Certificates available when requested at time of order and may include additional charges.
  • All 2150 shackles can meet charpy requirements of 42 joules (31 ft-Lbs) avg at -20 degree C (-4 degree F) upon special request.

SPECIFICATIONS

Dimensions (in) Tolerance (+/-)
Nominal Size (in) Working Load Limit (metric tons) Weight (lb) A B D F G K M P R G A
1/4 1/2 0.13 0.47 0.31 0.25 0.62 0.91 1.59 0.97 1.56 0.25 0.06 0.06
5/16 3/4 0.23 0.53 0.38 0.31 0.75 1.07 1.91 1.15 1.82 0.31 0.06 0.06
3/8 1 0.33 0.66 0.44 0.38 0.92 1.28 2.31 1.42 2.17 0.38 0.13 0.06
7/16 1-1/2 0.49 0.75 0.50 0.44 1.06 1.48 2.67 1.63 2.51 0.44 0.13 0.06
1/2 2 0.75 0.81 0.64 0.50 1.18 1.66 3.03 1.81 2.80 0.50 0.13 0.06
5/8 3-1/4 1.47 1.06 0.77 0.63 1.50 2.04 3.76 2.32 3.56 0.63 0.13 0.06
3/4 4-3/4 2.52 1.25 0.89 0.75 1.81 2.40 4.53 2.75 4.15 0.81 0.25 0.06
7/8 6-1/2 3.85 1.44 1.02 0.88 2.10 2.86 5.33 3.20 4.82 0.97 0.25 0.06
1 8-1/2 5.55 1.69 1.15 1.00 2.38 3.24 5.94 3.69 5.39 1.00 0.25 0.06
1-1/8 9-1/2 7.60 1.81 1.25 1.13 2.69 3.61 6.78 4.07 5.90 1.25 0.25 0.06
1-1/4 12 10.81 2.03 1.40 1.25 3.00 3.97 7.50 4.53 6.69 1.38 0.25 0.06
1-3/8 13-1/2 13.75 2.25 1.53 1.38 3.31 4.43 8.28 5.01 7.21 1.50 0.25 0.13
1-1/2 17 18.50 2.38 1.66 1.50 3.62 4.87 9.05 5.38 7.73 1.62 0.25 0.13
1-3/4 25 31.40 2.88 2.04 1.75 4.19 5.78 10.97 6.38 9.33 2.12 0.25 0.13
2 35 46.75 3.25 2.30 2.10 5.00 6.77 12.74 7.25 10.41 2.36 0.25 0.13
2-1/2 55 85.00 4.12 2.80 2.63 5.68 8.07 14.85 9.38 13.58 2.63 0.25 0.25
3 85 124.25 5.00 3.25 3.00 6.50 8.56 16.87 11.00 15.13 3.50 0.25 0.25
