Vestil Manufacturing Corp Low Profile Electric Lift Tables
Product No. EHU-2
Shipping calculator
Payment methods
Product details
Vestil Manufacturing Corp Low Profile Electric Lift Tables

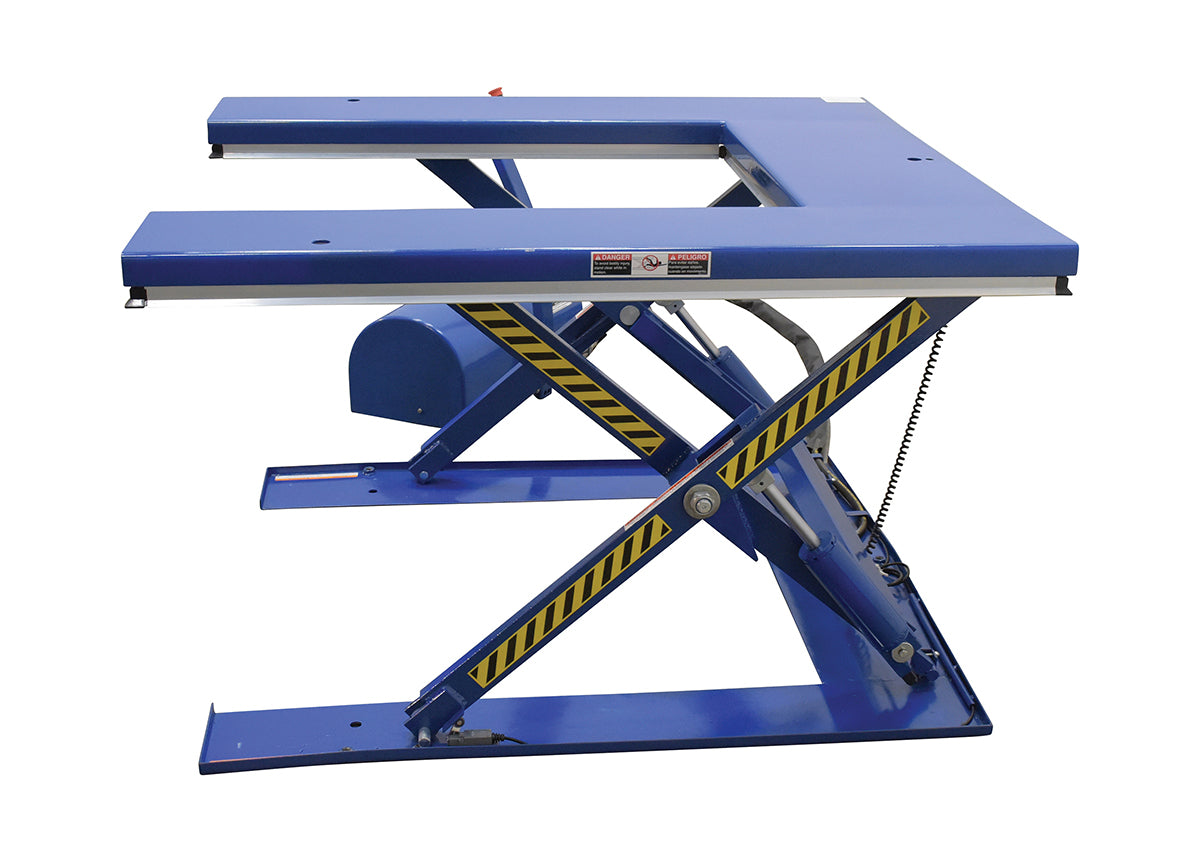

The open center on the "U" Type Electric Lift Tables, series EHU, enable a pallet truck to place a load on the platform. Series "EHE" center support beam helps to prevent the pallet from deflecting downward in the center. Units feature an external power pack equipped with a pressure relief valve that prevents overloading and a flow control valve that controls the lowering speed. Remote power pack comes complete with a cover to protect the motor from dust and debris. Raise and lower the unit using the UP and DOWN push buttons on the 24V control box. Safety features include electric toe guards, safety velocity fuse in cylinders, safety maintenance props, and an emergency stop button on the control box. Power supply is 115V single phase with pedestal mounted push buttons. When used in conjunction with a standard pallet jack, only open bottom pallets are to be used.
Manuals
EHU Owners Manual
EHE Owners Manual
Testing Certificates
SDS Sheets
Hydraulic Oil SDS Sheet for: EHU-2
