Lift Products Inc U-Lift Table
Product No. LPBLU
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Payment methods
Product details

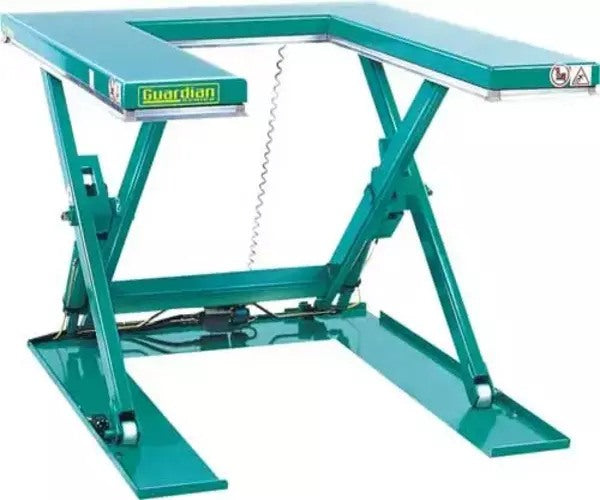

U-Lift Table
The Guardian U-Lift Tables have all the safety features of our Low Profile Guardian Series Lift Tables. The low profile feature provides greater flexability for tall pallet applications and operator height differences.
The "U" shaped low profile table is ideal for handling wire baskets, containers, plastic and wooden open bottom pallets. This design allows loading with either a 21" wide manual or electric pallet truck without the need for a loading ramp.
Installation costs are reduced since the need for a floor pit is eliminated. In addition, any potential tripping hazard that a ramp might pose is removed.
Standard Features
-
Load and unload pallets without the need for a loading ramp
-
Meets and exceeds both U.S. (ANSI) and EU safety standards
-
Upper platform fitted with safety perimeter which prevents descent on contact
-
Low-tension (24V) control box with up-down buttons
-
Electric circuit reset button in case the safety perimeter is actuated
-
External power pack equipped with a relief valve against overloading
-
Compensated flow valve for controlling lowering speed
-
External power pack is supplied with 8' long hoses
-
Upper limit switch
-
Designed for use with a 21" wide pallet jack
-
115 voltage single phase standard
-
230/460 voltage three phase available
-
Single acting cylinders with drainage system
-
Check valve to stop the lift table lowering in case of hose burst
-
Safety clearance between scissors to prevent trapping during operations
-
Mechanical blocks for safe maintenance operations
-
Self-lubricating bushings on pivot points
-
Removable lifting eye(s) to facilitate installation of the lift table
Options
- Stainless Galvanized
- Foot Controls
Specifications
| Model | Vertical Travel |
Capacity | Height | Platform Size |
Base Frame |
Up Speed |
|
|---|---|---|---|---|---|---|---|
| Lower | Upper | ||||||
| LPBLU-20 | 30.75" | 2,200 lbs | 3.13" | 33.88" | 50" x 55.88" | 42" x 52" | 18 sec |
| LPBLU-30 | 29.5" | 3,300 lbs | 3.63" | 33.88" | 45.63" x 59.88" | 43" x 56.25" | 25 sec |
