TLS Quad Coupler 1.5 90 Degree

• ** Note - Dues to supply delays this product currently has a lead time of 6-8 weeks**

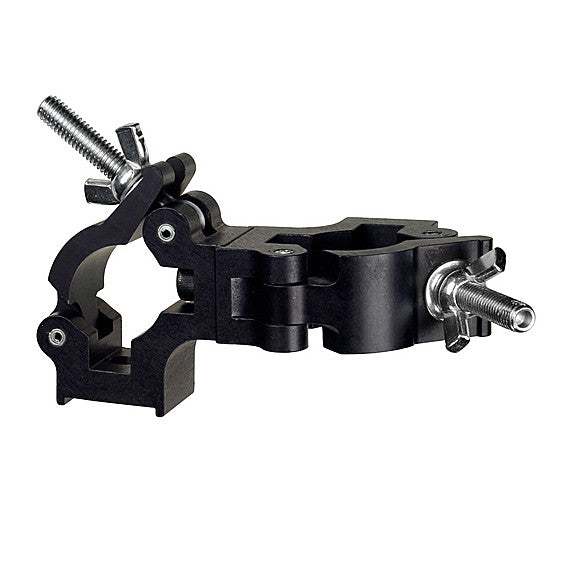

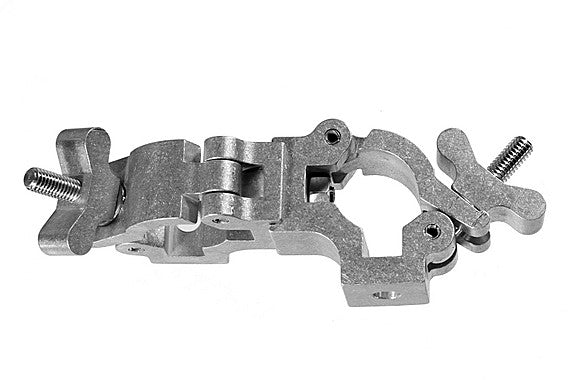

The Quad Coupler 1.5 90 Degree is made by bolting two Quad Couplers together with the keyed sides facing and interlocking with each other.

Minimum Size
1.25" OD tube, 1" pipe, 1.315" OD pipe

Maximum Size
1.5" OD tube, 1-1/4" pipe

Working Load Limit
770 Pounds

Hardware
3/8" – 16 tpi x 1.25" Socket Head Cap Screw.
2 way nylon locking nut.

Dimensions
1/2" thick each coupler

Weight
1 lb.

Case Quantities
12
