TLS Mega-Gridlock
Product No. MGB
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Payment methods
Shipping information
- ** Note - Dues to supply delays this product currently has a lead time of 6-8 weeks**
Product details

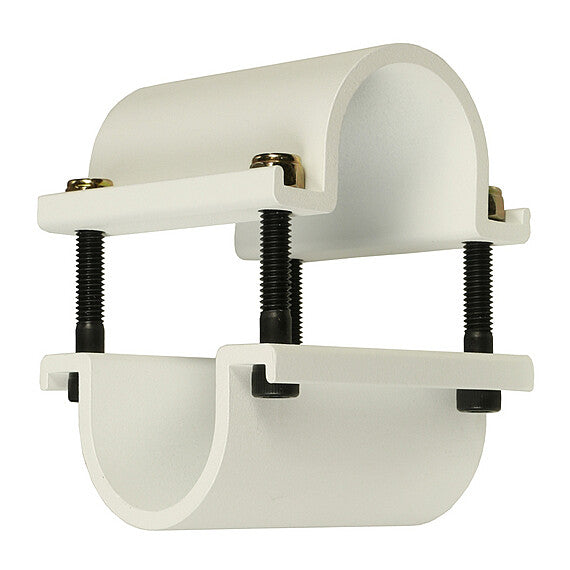

Designed for permanent pipe grid installations in studios and theaters. Joins 2 overlapping pipes together in a 90 degree joint. Grooves act as a wrench holding the nut from turning while installing. Installs with a hex key tool in a battery drill.
Fastens any combination of 1-1/2" pipe (1.9" OD), 1-1/4" pipe (1.66" OD), and 2" OD Tube. (Tight fit on 2" OD tube)
The Mega-Gridlock can be used on curved track down to a radius of 3 feet (or a circle with a diameter of 6 feet).
Tighten the bolts to 11 foot pounds, which is about as tight as as can be done with a 6" hex key wrench.
Minimum Size
1.25" pipe, 1.66" OD pipe
Maximum Size
1.5" pipe, 1.90" OD pipe, 2" OD truss tube
Working Load Limit
1250 lb 568kg
Hardware
4 each – 5/16″ × 2″ socket head cap screws
4 each – 5/16" Nylock nuts
Dimensions
3.65″ × 3.65″ x 4.375 tall max (.375" plus the thckness of the 2 pipes joined.)
Weight
15 oz
Case Quantities
12
