Doughty Studio Rail - 3 Point Receiver

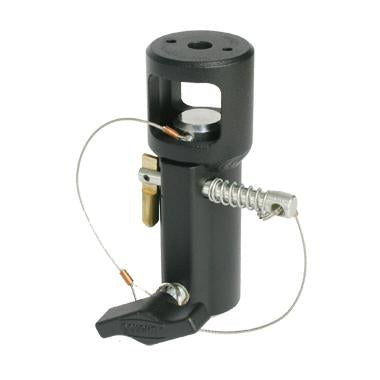

The Doughty 3 Point Receiver Studio Rail is manufactured from high tensile aluminum and designed with a leading TV/Grip supplier. It has been carefully designed to incorporate the following three safety points.

• A 0.24'' diameter pin designed to take the initial load quickly and safely.
• A standard sword pin which allows 360° rotation.
• A Doughty knob which enables the luminaire to be locked at a chosen point of rotation.

This receiver can be factory fitted to the majority of Doughty's aluminum clamp range and is also fitted to pantographs on request. This 3 Point Receiver is also a key part of Doughty's Studio Rail System fitted to the 6 Wheel Carriages. Available in either powder coated black or polished aluminum.

For any inquiries, please contact us via chat.

 SPECIFICATIONS

• SWL: 220 lbs
• Mounting Hole: 2 x 0.24'' diameter & 1 x 0.47'' diameter
• Size: Accepts 1.1'' Spigots of either Euro or Din spec.
• Material: Aluminum
• Finish: Powder Coated Black or Polished Aluminum

Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.

Quality and safety are key issues for Doughty. As a member of PLASA (Professional Light and Sound Association) and ESTA (Entertainment Services and Technology Association), Doughty adheres strictly to the standards of trading expected.
