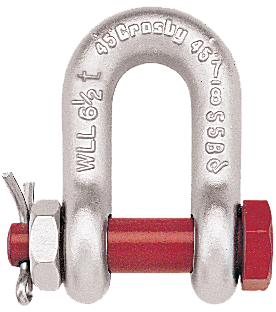

Crosby G-2150 Galvanized Bolt Type Chain Shackles

Look for the Red Pin®. . . the mark of genuine Crosby quality.

FEATURES

2 thru 85 metric tons, grade 6.
Working Load Limit and grade “6” permanently shown on every shackle.
Forged — Quenched and Tempered, with alloy bolts.
Hot Dip galvanized.
Fatigue rated (1/2t - 55t).
Shackles 25t and larger are RFID EQUIPPED.
Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F). • 3.25t through 25t bow and bolt are certified to meet charpy impact testing of 42 joules (31 ft-Ibs.) min. avg. at -20 degree C (-4 degree F)
Meets or exceeds all requirements of ASME B30.26.
Sizes 1/2 - 25t meet the performance requirements of EN13889:2003.
Shackles 55 metric tons and smaller can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order.
Type Approval certification in accordance with ABS 2007 Steel Vessel Rules 1-11-17.7 and ABS Guide for Certification on Cranes available. Certificates available when requested at time of order and may include additional charges.
All 2150 shackles can meet charpy requirements of 42 joules (31 ft-Lbs) avg at -20 degree C (-4 degree F) upon special request.

SPECIFICATIONS

			Dimensions (in)									Tolerance (+/-)
Nominal Size (in)	Working Load Limit (metric tons)	Weight (lb)	A	B	D	F	G	K	M	P	R	G	A
1/4	1/2	0.13	0.47	0.31	0.25	0.62	0.91	1.59	0.97	1.56	0.25	0.06	0.06
5/16	3/4	0.23	0.53	0.38	0.31	0.75	1.07	1.91	1.15	1.82	0.31	0.06	0.06
3/8	1	0.33	0.66	0.44	0.38	0.92	1.28	2.31	1.42	2.17	0.38	0.13	0.06
7/16	1-1/2	0.49	0.75	0.50	0.44	1.06	1.48	2.67	1.63	2.51	0.44	0.13	0.06
1/2	2	0.75	0.81	0.64	0.50	1.18	1.66	3.03	1.81	2.80	0.50	0.13	0.06
5/8	3-1/4	1.47	1.06	0.77	0.63	1.50	2.04	3.76	2.32	3.56	0.63	0.13	0.06
3/4	4-3/4	2.52	1.25	0.89	0.75	1.81	2.40	4.53	2.75	4.15	0.81	0.25	0.06
7/8	6-1/2	3.85	1.44	1.02	0.88	2.10	2.86	5.33	3.20	4.82	0.97	0.25	0.06
1	8-1/2	5.55	1.69	1.15	1.00	2.38	3.24	5.94	3.69	5.39	1.00	0.25	0.06
1-1/8	9-1/2	7.60	1.81	1.25	1.13	2.69	3.61	6.78	4.07	5.90	1.25	0.25	0.06
1-1/4	12	10.81	2.03	1.40	1.25	3.00	3.97	7.50	4.53	6.69	1.38	0.25	0.06
1-3/8	13-1/2	13.75	2.25	1.53	1.38	3.31	4.43	8.28	5.01	7.21	1.50	0.25	0.13
1-1/2	17	18.50	2.38	1.66	1.50	3.62	4.87	9.05	5.38	7.73	1.62	0.25	0.13
1-3/4	25	31.40	2.88	2.04	1.75	4.19	5.78	10.97	6.38	9.33	2.12	0.25	0.13
2	35	46.75	3.25	2.30	2.10	5.00	6.77	12.74	7.25	10.41	2.36	0.25	0.13
2-1/2	55	85.00	4.12	2.80	2.63	5.68	8.07	14.85	9.38	13.58	2.63	0.25	0.25
3	85	124.25	5.00	3.25	3.00	6.50	8.56	16.87	11.00	15.13	3.50	0.25	0.25
