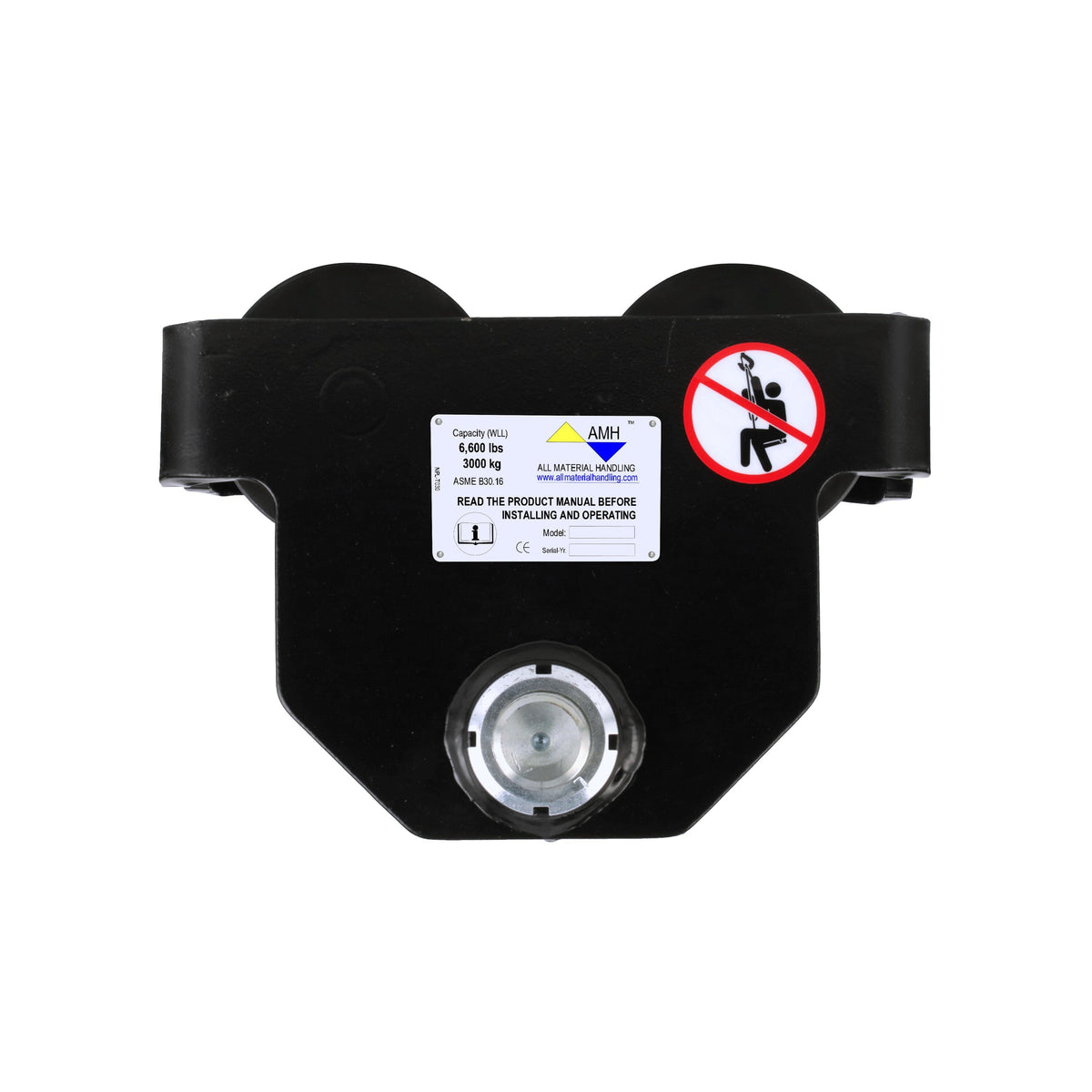

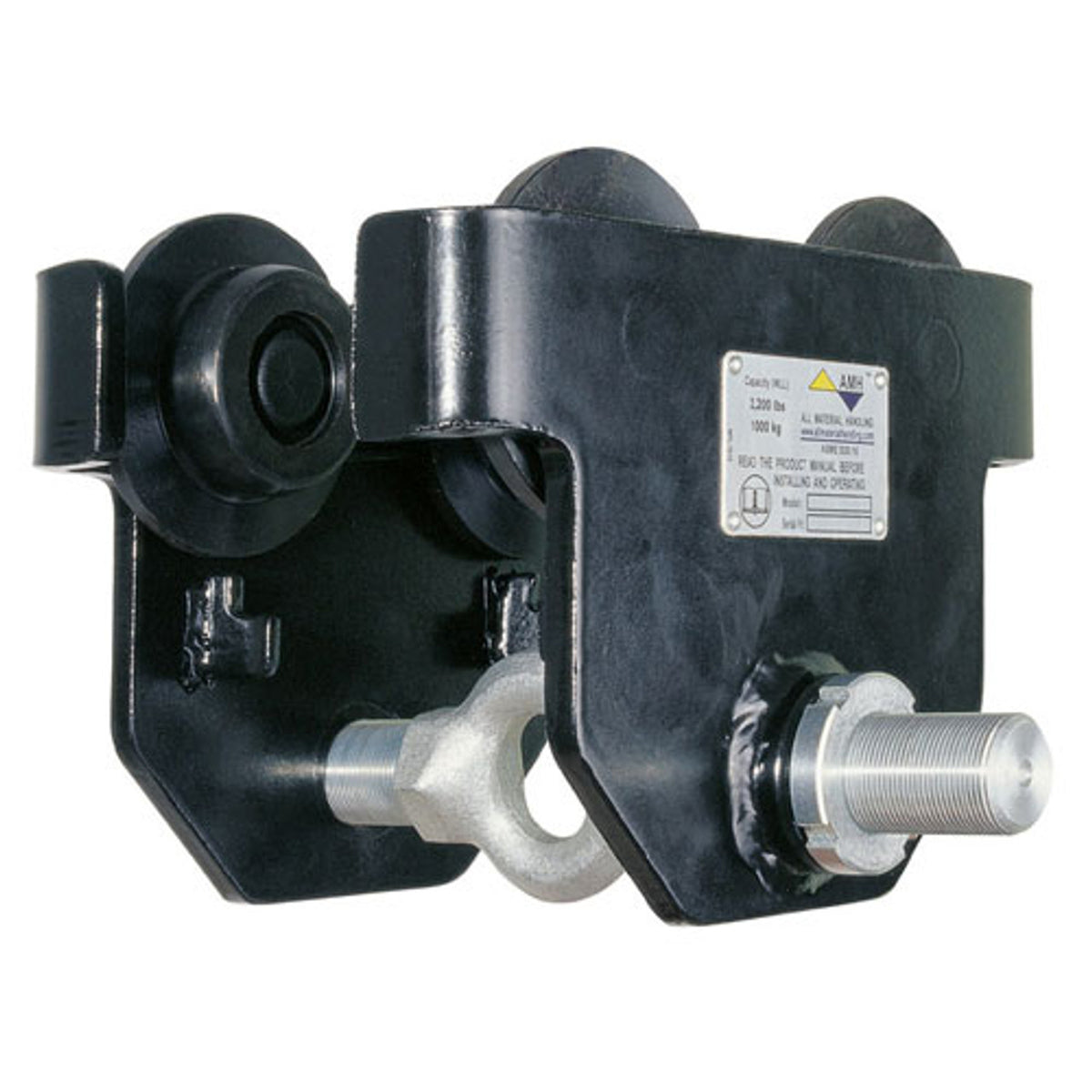

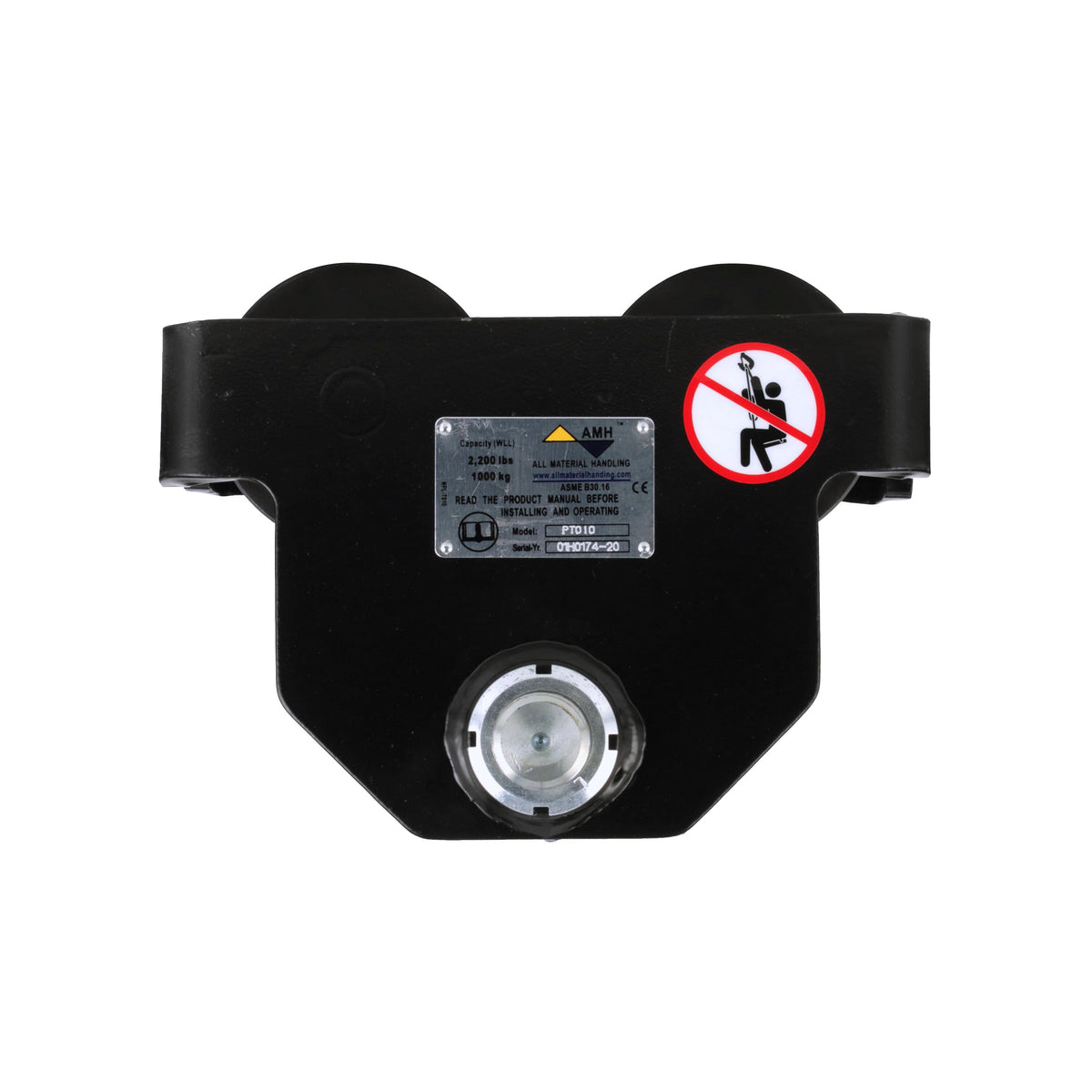

AMH Push Trolley 0.5t to 16t

Product No. PT005

No reviews
Regular price $96.46 USD
LOAD CAPACITY
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
american_express apple_pay diners_club discover facebook_pay google_pay master shopify_pay visa
Product details

AMH Push Trolley 0.5t to 16t

Our AMH Geared Trolley is the solution to all your trolley installation needs with its hassle-free and efficient installation process. Whether you're looking for a trolley that can handle ½ to 5t or 10-30t, our product can handle it all.

  • Easy Installation and Storage: With our product, trolley installation and adjustment is as simple as rotating the threaded hanger shaft. Installation for 10-30t trolleys can be done from just one side, with hanger shafts fixed mounted to the opposite side plate. This feature makes our trolley the perfect choice for tight spaces, allowing for easy operation and storage.
  • 5:1 or 4:1 Design Factor: Our trolleys up to 5t have a 5:1 design factor for use with powered or manual hoists, while trolleys 10t and greater have a 4:1 design factor and must be derated for use with powered hoists.
  • Machined Cast Iron Wheels: Machined cast iron wheels with universal tread designed to fit flat or tapered beam flanges ensure that our trolley is the perfect choice for your material handling needs.
  • Premium Quality and Smoother Operation: Our trolley is designed with a low headroom design and precision sealed "lubed for life" bearings to assure smooth operation, while the durable all-steel construction with standard safety lugs provides maximum safety and longevity.
  • Meets Several Safety Standards and Certifications: Our product meets a range of safety standards, including ASME/ANSl B30.16, OSHA, NASA-STD-8719.9, and EU Directives: 2006/42/EC, making it a reliable choice for any material handling application. In addition, it is ATEX rated ATEX certified II 3 GD c IIB 54º C X for limited use in Hazardous Environments, giving you added peace of mind.

Choose our trolley for the easiest and most efficient trolley installation process, backed by the highest quality standards and safety certifications.



AMH Push Trolley 0.5t to 16t Specifications:

Brand: All Material Handling (AMH)
Trolley Type: Push/ Manual

0.5t 1t 2t 3t 5t 10 16t
Load Capacity (in lbs) 1,100 2,200 4,400 6,600
11,000
22,000 35,200
Beam Flange Width 1.97-8.66" 2.28-8.66" 2.60-8.66 2.91-8.66" 3.54-8.66 4.9-12.0" 5.4-12.0"
Design Factor 5:1
5:1 5:1 5:1 5:1 4:1 4:1
