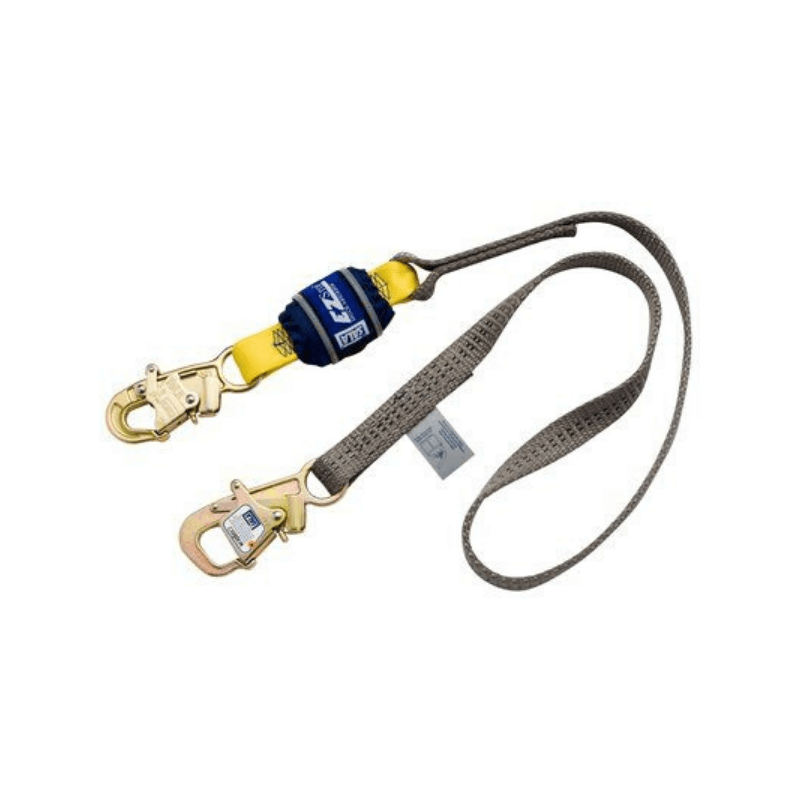

3M™ DBI-SALA® WrapBax™2 Tie-Back Shock Absorbing Lanyard

The 3M™ DBI-SALA® WrapBax™2 Tie-Back Shock Absorbing Lanyard is specifically designed to withstand the forces that can occur during tie back use. This lanyard features a 5,000 lb. (22 kN) gated hook and heavy duty abrasion resistant 13,000 pound (58 kN) tensile strength webbing, making it ideal for the rigors of tie back use. The DBI-SALA® Tie-Back Shock Absorbing Lanyard eliminates the need for a separate anchorage connector, thus reducing inventory and cost, simplifying inspections, training and improving compliance.

This lanyard features the world’s smallest and lightest shock absorber and exclusive Hi 10™ Vectran™ energy management materials that provide second to none abrasion, cut and chemical resistance and efficient shock absorption. Should a fall occur, the lanyard and its unique energy absorbing system will activate stopping the fall and reducing the forces imposed on the user to safe levels. This lanyard also features 3M™ patented self locking snap hooks which are widely recognized in the industry for their user friendly operation and are preferred by safety professionals and workers alike. Specifically designed to allow you to open and connect the hook without getting your thumb or fingers in the way even with gloves on. The 3M™ DBI-SALA® WrapBax™2 Tie-Back Shock Absorbing Lanyard represents the culmination of decades of design, research, manufacturing know how and on the job performance.

For any inquiries please contact us via Chat.

SPECIFICATIONS

• Capacity: 130-310 lbs
• Weight: 2.6 lbs

• Lanyard Length: 6 ft
• Lanyard Type: Fixed
• Harness Connection Type: Snap Hook
• Anchor Connection Type: Tie-Back Hook

• Lanyard Material: Polyester Web
• Harness Connection Hook Material: Zinc Plated Steel
• Anchor Hook Material: Zinc Plated Steel

• Energy Absorber Class:  6 ft (1.8 m) Free Fall/MAAF 900 lbs (4 kN)
• Leg Count: Single-Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Oil & Gas, Utilities
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.13, OSHA 1910.66, OSHA 1926.502

FEATURES

• 6 ft (1.8m) single-leg lanyard
• Tie-back designed and rated
• Extremely compact and lightweight
• Exclusive Vectran™ energy absorption system
• Heavy duty abrasion resistant web
• User friendly self locking snap hook and tie-back hook
• Built-in reflective materials
• Impact indicator
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

3M™ DBI-SALA® Energy Absorbing Lanyards Instruction Manual

Certificate

1246229: Certificate of Compliance
