3M™ DBI-SALA® Sliding Beam Anchor (Small & Large Options)
Product No. 2104710
*The minimum order value for 3M products is $250. Any order below this will be cancelled.*
Shipping calculator
Payment methods
Product details

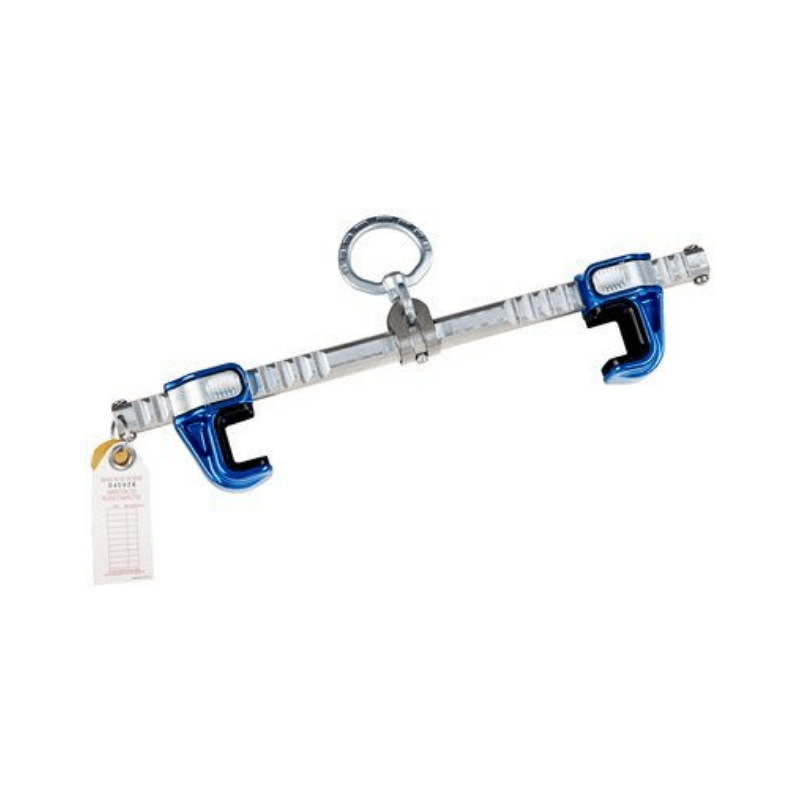

3M™ DBI-SALA® Sliding Beam Anchor
The 3M™ DBI-SALA® Sliding Beam Anchor has a compact and lightweight design that makes transportation a breeze. Once you secure it to the beam using the redesigned adjustment buttons, simply connect your Self-Retracting Lifeline (SRL)* or lanyard to the swiveling D-ring and you’re ready to work. The anchor point slides effortlessly behind you.
Built to last, this anchorage device features a 360-degree swiveling D-ring for hands-free mobility, a locking mechanism to reduce the chances of accidental disengagement as well as a fully adjustable integrated dual ratcheting adjustment system. With the 3M™ DBI-SALA® Sliding Beam Anchor you get the best of both worlds.
For foot level tie-off, use 3M™ DBI-SALA® Nano-Lok™ Edge Twin-Leg Quick Connect Self Retracting Lifeline (3500225, 3500227 & 3500228).
For any inquiries please contact us via Chat.SPECIFICATIONS
• Capacity: 420 lbs
• Weight:
- 2104710 & 2104712 - 3.5 lbs
- 2104713 & 2104715 - 7.5 lbs
• Anchor Install Type: Reusable
• Anchor Hook Material: Metal
• Housing Material: Aluminum & Stainless Steel
• Mounting Type: Reusable
• Product Color: Blue
• For Use With: I-Beams
• iSafe Equipped: No
• Recommended Industry: Construction
• Standards: OSHA 1910.140, OSHA 1926.502
FEATURES
- Hands-free Mobility - 360-degree swiveling D-ring optimizes your mobility on the beam
- Rugged Durability - Corrosion-resistant construction meets ANSI standards for weather, environmental and storage conditions
- Visible Adjustability - Dual ratcheting adjustment buttons are accessible above the beam, while locking mechanism is located on the side to reduce accidental disengagement
- Lightweight - Compact size and lightweight materials make transportation a breeze
- Easy Pad Replacement - Snap-in design of wear pads allows them to be replaced quickly in the field
- Compliant - Meets ANSI Z359.18 Anchorage Connector standard; OSHA 420 lbs / ANSI 310 lbs ratings
- Versatile - Size ranges to fit a variety of beams
- Applications: • Bridge work • Buildings • Warehouses • Arenas • Parking ramps
RESOURCES
Catalog
3M™ DBI-SALA® Fall Protection For Tools Product Catalog
3M™ DBI-SALA® Sliding Beam Anchor Brochure
Instructions
3M™ DBI-SALA® Sliding Beam Anchor Instructions
Certificates
2104710: Declaration of Conformity
2104715: Declaration of Conformity
