3M™ DBI-SALA® Shockwave™2 Arc Flash Shock Absorbing Lanyard

The 3M™ DBI-SALA® Shockwave™2 Arc Flash Shock Absorbing Lanyard is a worker at height's best friend. It incorporates a unique, stretchable design that gives the worker complete freedom of movement while reducing trip hazards, dragging or snagging. This lanyard expands to 6' and contracts to 4-1/2'. The Shockwave2 Arc Flash Shock Absorbing Lanyard is compliant with OSHA and ASTM standards.

This lanyard is lightweight, yet durable and extremely safe, with a rugged construction that is arc flash rated thanks to Nomex®/Kevlar® fiber webbing. In the event of a fall, the lanyard's inner core extends and absorbs energy, limiting the fall arrest forces to safe levels. Self-locking snap hooks patented by 3M™ DBI-SALA® have become revered in the industry for their ease of use and effectiveness. The Shockwave2 Arc Flash Shock Absorbing Lanyard incorporates a built-in impact indicator to easily identify if a lanyard has been involved in a fall.

For any inquiries please contact us via Chat.

SPECIFICATIONS

• Capacity: 130 lbs - 310 lbs
• Weight:
  1244610 - 2.6 lbs
  1244611 - 1.8 lbs

• Lanyard Length: 6 ft
• Lanyard Type: Variable/Elastic
• Harness Connection Type:
  1244610 - Snap Hook
  1244611 - Web Loop
• Anchor Connection Type: Snap Hook

• Lanyard Material: Nomex®/Kevlar®  Fiber Web
• Harness Connection Hook Material: Zinc Plated Steel
• Anchor Hook Material: Zinc Plated Steel

• Energy Absorber Class: 6 ft (1.8 m) Free Fall/MAAF 900 lbs (4 kN)
• Leg Count: Single-Leg
• iSafe Equipped: Yes
• Recommended Industry: Utilities
• Standards: ASTM F887, ASTM F887-2005, OSHA 1910.66, OSHA 1926.502

FEATURES

• Arc flash rated

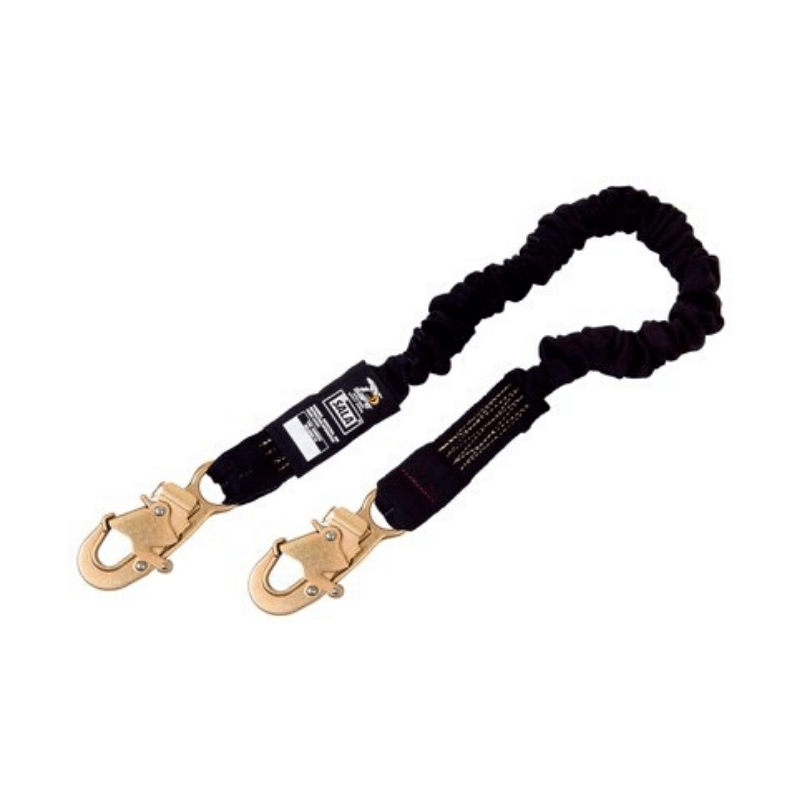

• 1244610 - User friendly self-locking snap hooks at each end

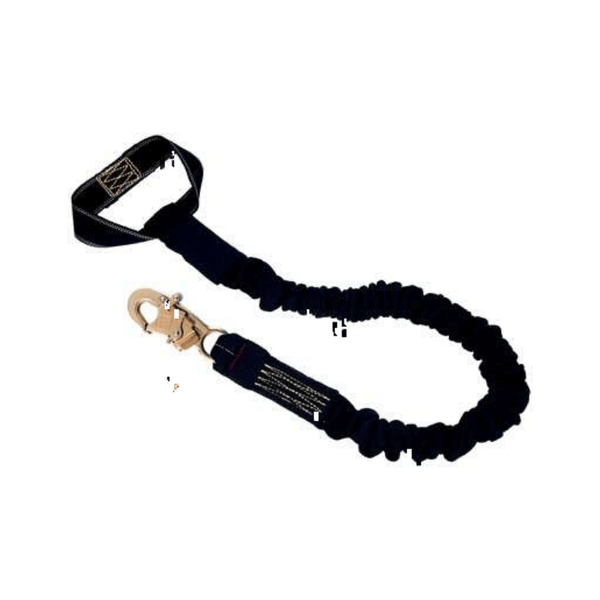

• 1244611 - User friendly self-locking snap hook at one end and web loop choker at other end
• 6 ft. (1.8m) single-leg lanyard
• Stretches in reaction to your movements
• Nomex®/Kevlar® fiber webbing
• Energy absorbing design limits fall arrest forces
• Built-in impact indicator
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)
