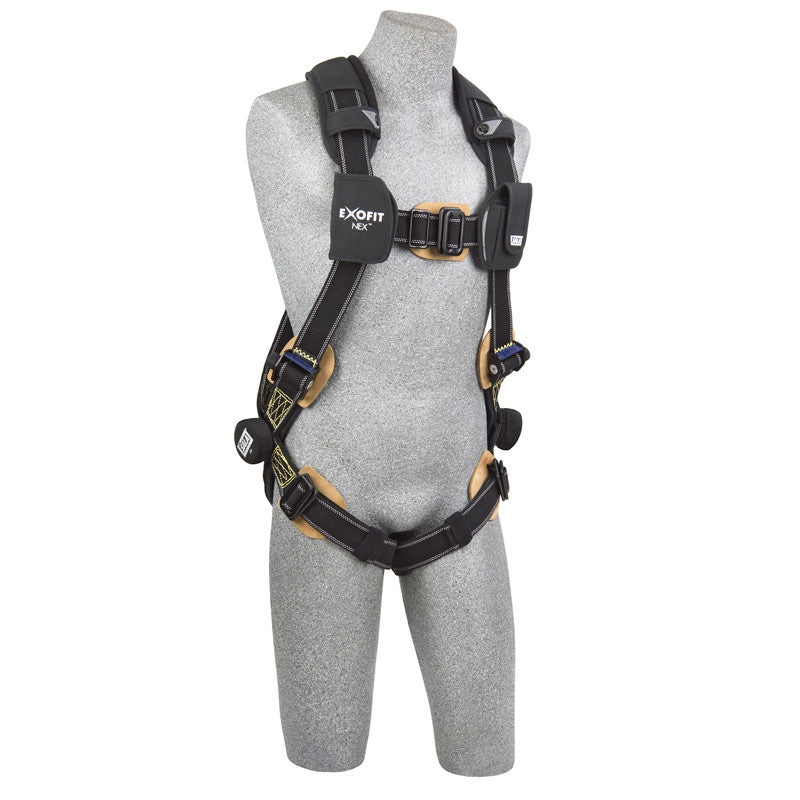

3M™ DBI-SALA® ExoFit NEX™ Arc Flash Vest-Style Harness

The 3M™ DBI-SALA® ExoFit NEX™ Arc Flash Vest-Style Harness delivers confidence when working around high voltage electricity or hot-work. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. It features Nomex®/Kevlar® fiber webbing and comfort padding, PVC coated pass-through buckle leg straps, leather insulators, belt loops, a revolving vertical torso buckle as well as integrated flame resistant trauma straps. The ExoFit Nex™ Arc Flash Vest-Style Harness features a flame resistant and non-conductive construction in addition to the comfort, function, and durability that the ExoFit NEX™ brand is known for.

For a full list of ExoFit NEX™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit NEX™

ExoFit NEX™ harnesses are the most advanced safety harnesses in the industry. These fall protection products are the result of years of experience and ongoing research to identify the best materials and features for the worker’s benefit. These harnesses are manufactured to be lightweight with speed and efficiency as product requirements. ExoFit NEX™ full-body harnesses provide the freedom and confidence for workers to perform at their maximum potential.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1113335 - 3.7 lbs
  1113336 - 3.8 lbs
  1113337 - 3.9 lbs
  1113338 - 4 lbs
• Body Belt: No
• Buckle Type: Pass-through
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material: PVC Coated Steel
• Padding Location: Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Oil & Gas, Transportation, Utilities
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.4, ASTM F887, OSHA 1910.66, OSHA 1926.502

FEATURES

• Arc flash rated
• Nomex®/Kevlar® material provides shoulder, back and leg comfort padding
• PVC coated Aluminum Stand-up Back D-ring
• PVC coated pass-through buckle leg straps
• Leather insulators
• Nomex®/Kevlar® fiber webbing
• Belt loops
• Built-in lanyard keepers
• Revolving vertical torso buckle
• Impact Indicator
• Integrated flame resistant trauma straps
• Built-in reflective materials
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

ExoFit NEX™ Full Body Harness Instructions

Certificates

1113335: Certificate of Compliance, Declaration of Conformity

1113336: Certificate of Compliance, Declaration of Conformity

1113337: Certificate of Compliance, Declaration of Conformity

1113338: Certificate of Compliance, Declaration of Conformity
