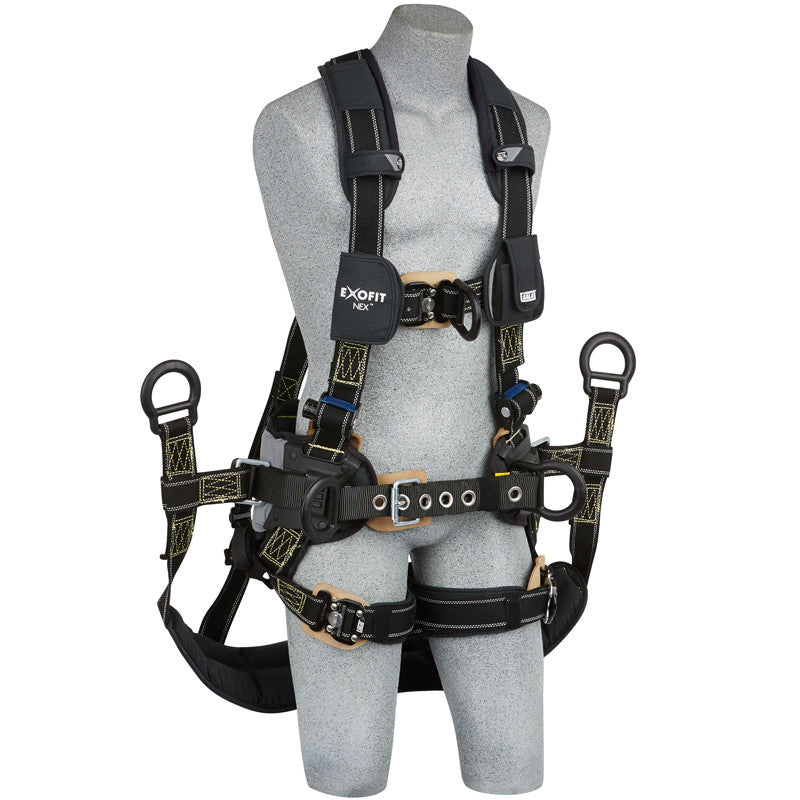

3M™ DBI-SALA® ExoFit NEX™ Arc Flash Tower Climbing Harness

The 3M™ DBI-SALA® ExoFit NEX™ Arc Flash Tower Climbing Harness is designed for workers who are at height for long periods of time. This comfortable and light wearing safety harness is easy to don, thanks to its vest-style design. It features Nomex®/Kevlar® fiber webbing and comfort padding, a lightweight aluminum stand-up PVC coated back D-ring, lightweight aluminum PVC coated front D-ring, body belt/hip pad with lightweight aluminum PVC coated side D-rings, Duo-Lok™ quick connect chest and leg straps, a revolving vertical torso buckle as well as integrated flame resistant trauma straps. This full-body harness is also equipped with a removable seat sling with aluminum board and lightweight aluminum PVC coated suspension D-rings that allows workers to comfortably position and sit in the harness to reduce fatigue. The ExoFit Nex™ Arc Flash Tower Climbing Harness delivers confidence when working around high voltage electricity or hot-work and features a flame resistant and non-conductive construction in addition to the comfort, function, and durability that the ExoFit NEX™ brand is known for.

For a full list of ExoFit NEX™ features, click here.

For any inquiries please contact us via Chat.

About ExoFit NEX™

ExoFit NEX™ harnesses are the most advanced safety harnesses in the industry. These fall protection products are the result of years of experience and ongoing research to identify the best materials and features for the worker’s benefit. These harnesses are manufactured to be lightweight with speed and efficiency as product requirements. ExoFit NEX™ full-body harnesses provide the freedom and confidence for workers to perform at their maximum potential.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1113357 - 9.7 lbs
  1113358 - 9.9 lbs
  1113368 - 10.1 lbs
  1113369 - 10.2 lbs
• Body Belt: Yes
• Buckle Type: Duo-Lok™ Quick Connect
• Chest Buckle Material: Zinc Plated Steel
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Back/Hip, Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Oil & Gas, Transportation, Utilities
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.3, ANSI Z359.4, ASTM F887, ASTM F887-11, OSHA 1910.66, OSHA 1926.502

FEATURES

• Arc flash rated
• Nomex®/Kevlar® material provides shoulder, back and leg comfort padding
• Lightweight aluminum stand-up PVC coated back D-ring
• Lightweight aluminum PVC coated front D-ring
• Body belt/hip pad with PVC coated lightweight aluminum side D-rings
• Removable seat sling with aluminum board and lightweight aluminum PVC coated suspension D-rings
• Duo-Lok™ quick connect chest and leg straps
• Leather insulators
• Nomex®/Kevlar® fiber webbing
• Built-in lanyard keepers
• Revolving vertical torso buckle
• Impact Indicator
• Integrated flame resistant trauma straps
• Built-in reflective materials
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)
