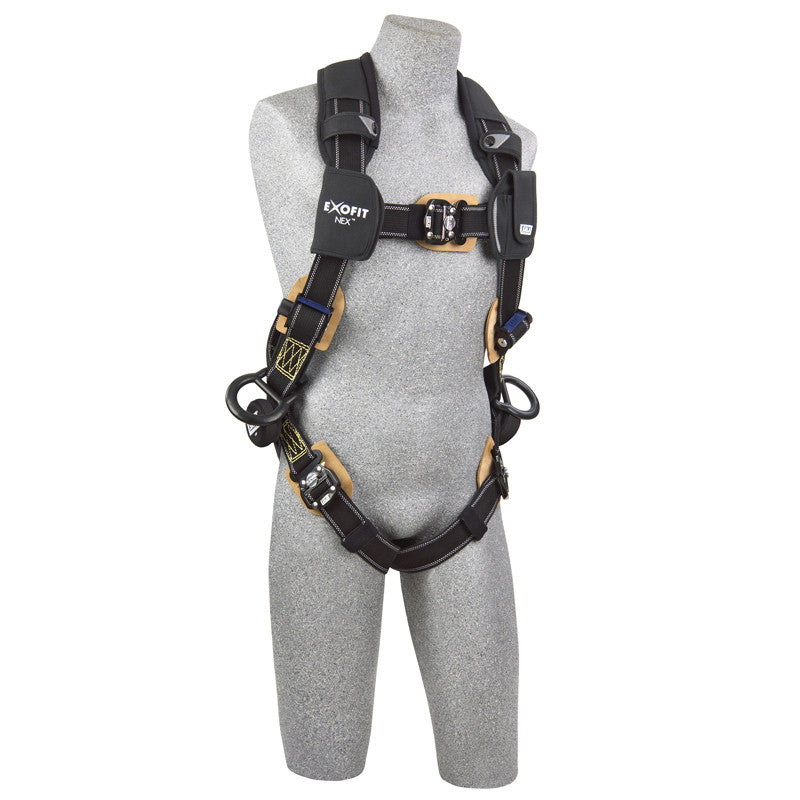

3M™ DBI-SALA® ExoFit NEX™ Arc Flash Positioning Harness

The 3M™ DBI-SALA® ExoFit NEX™ Arc Flash Positioning Harness delivers confidence when working around high voltage electricity or hot-work. This safety harness features flame resistance and non-conductive construction in addition to Nomex®/Kevlar® material shoulder, back and leg comfort padding ensuring the comfort, function, and durability that the ExoFit NEX™ brand is known for. This harness also includes lightweight aluminum stand-up PVC coated back and side D-rings, web-locking quick-connect chest and leg straps as well as a revolving vertical torso buckle. When speed and efficiency are project requirements, ExoFit NEX™ will provide the freedom and confidence to function at your maximum potential.

For a full list of ExoFit NEX™ features, click here.

For any inquiries please contact us via Chat.

ABOUT EXOFIT NEX™

ExoFit NEX™ harnesses are the most advanced safety harnesses in the industry. These fall protection products are the result of years of experience and ongoing research to identify the best materials and features for the worker’s benefit. These harnesses are manufactured to be lightweight with speed and efficiency as product requirements.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1103070 - 4.8 lbs
  1103071 -  4.85 lbs
  1103072 - 4.9 lbs
  1103073 - 4.95 lbs
• Body Belt: No
• Buckle Type: Duo-Lok™ Quick Connect
• Chest Buckle Material: Zinc Plated Steel
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material: Zinc Plated Steel
• Padding Location: Shoulder/Back and Leg
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Transportation, Utilities
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.4, OSHA 1910.66, OSHA 1926.502

FEATURES

• Arc flash rated
• Nomex®/Kevlar® material provides shoulder, back and leg comfort padding
• Lightweight aluminum stand-up PVC coated aluminum back D-ring
• Lightweight aluminum PVC coated side D-rings
• Web-locking quick-connect chest and leg straps
• Leather insulators
• Nomex®/Kevlar® fiber webbing
• Belt loops
• Built-in lanyard keepers
• Revolving vertical torso buckle
• Impact Indicator
• Integrated flame resistant trauma straps
• Built-in reflective materials
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

ExoFit NEX™ Full Body Harness Instructions

Certificates

1103070: Certificate of Compliance, Declaration of Conformity

1103071: Certificate of Compliance, Declaration of Conformity

1103072: Certificate of Compliance, Declaration of Conformity

1103073: Certificate of Compliance, Declaration of Conformity
