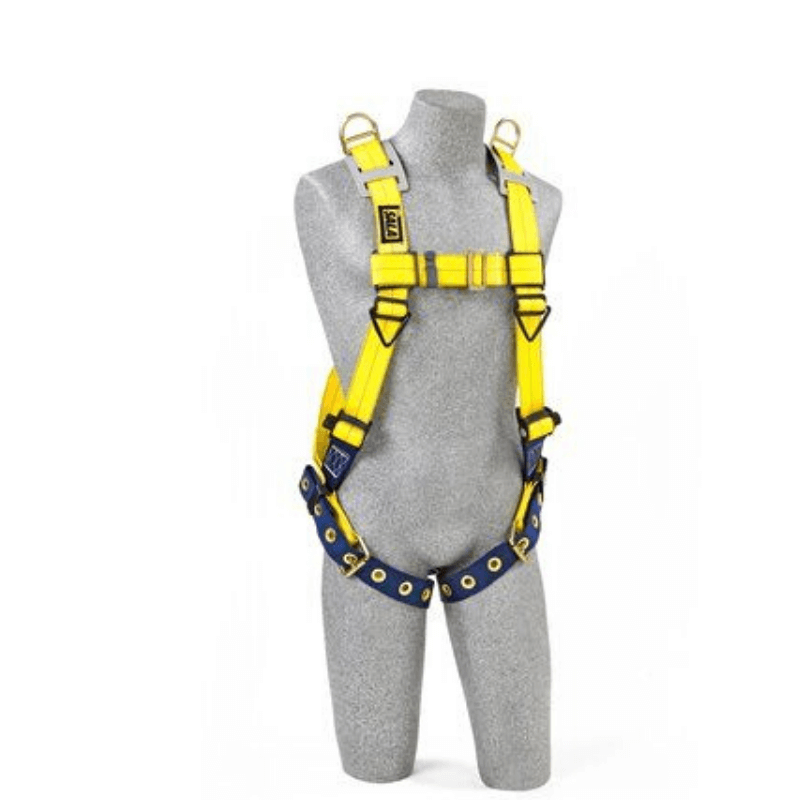

3M™ DBI-SALA® Delta™ Vest-Style Retrieval Harness

The 3M™ DBI-SALA® Delta™ Vest-Style Retrieval Harness, thanks to its patented triangular design, has a shape of its own making it quick and easy to don. This safety harness is used by workers in a wide range of industries and professions due to its no-tangle design. This vest-style harness also includes stand-up back and side D-rings as well as a Delta™ pad that incorporates a web spreading design, positioning webbing wider apart on shoulder straps to eliminate abrasion on the wearer's neck. With coated, corrosion-resistant hardware, and abrasion-resistant webbing, this Delta™ harness has a build quality that is second to none.

The Delta™ Vest-Style Retrieval Harness is available in an XL and Universal size with the choice of Tongue Buckles, Quick Connect Buckles or Pass-Through Buckles.

For a full list of Delta™ features, click here.

For any inquiries please contact us via Chat.

About Delta™

Delta™ harnesses combine a set of “industry-first” advancements, with popular features making them the workhorse of the industry. Today’s Delta™ represents the culmination of more than twenty years of design, research, manufacturing know-how and on-the-job performance.

SPECIFICATIONS

• Capacity: 420 lbs
• Weight:
  1101254 & 1101257 - 4.2 lbs
  1101781 & 1101794 - 3.2 lbs
  1110602 & 1110608 - 3.8 lbs
• Tensile Strength: 6000 lbs
• Body Belt: No
• Subpelvic Strap: Yes
• Buckle Type:
  1101254 & 1101257 - Tongue Buckle
  1101781 & 1101794 - Pass-Through
  1110602 & 1110608 - Tech-Lite™ Quick Connect
• Chest Buckle Material: Zinc Plated Steel
• Torso Buckle Material: Zinc Plated Steel
• Leg Buckle Material:
  1101254 & 1101257 - Stainless steel Grommet
  1101781 & 1101794 - Zinc Plated Steel
  1110602 & 1110608 - Tech-Lite™ Aluminum
• Padding Location: None
• iSafe Equipped: Yes
• Recommended Industry: Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
• Standards: ANSI A10.32, ANSI Z359.1, ANSI Z359.4, OSHA 1910.66, OSHA 1926.502

FEATURES

• No-tangle design
• Stand-up back D-ring
• Shoulder D-rings
• Tongue buckle leg straps, pass-thru buckle leg straps or lightweight aluminum quick connect buckle leg straps
• Repel™ webbing
• Built-in lanyard keepers
• Revolver™ vertical torso adjusters
• Protected labels, equipped with 3M™ Connected Safety ID (CSID)

RESOURCES

• 9 Things to Consider When Looking for a Safety Harness

Catalog

3M™ DBI-SALA Fall Protection Full Line Catalog

Instructions

Delta III™ Full Body Harness User Instructions

Certificates

1101254: Certificate of Compliance, Declaration of Conformity

1101257: Certificate of Compliance, Declaration of Conformity

1101781: Certificate of Compliance, Declaration of Conformity

1101794: Certificate of Compliance, Declaration of Conformity

1110602: Certificate of Compliance, Declaration of Conformity

1110608: Certificate of Compliance, Declaration of Conformity
