Lex 60 Amp Stage Pin Extension
$287.53
Lex 60 Amp Stage Pin Extension
$287.53
Length:
25'
Please enter correct zip code

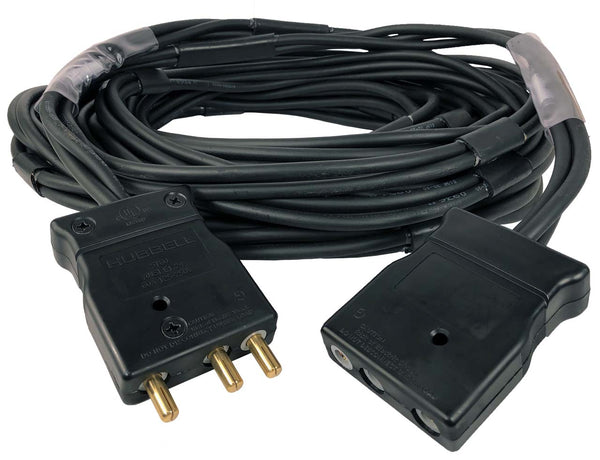

Lex 60 Amp Stage Pin Extension
60 Amp stage pin extensions are primarily used to power lights rated between 2kW and 7.2kW. These extensions can also be used to feed 60 Amp distribution boxes commonly found on set.
Specifications
- Rating: 60 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC
- Male/Female Connector: 60 Amp stage pin
- Cable: (3) #6 AWG Type SC
Features
- Extensions are made with single conductor type SC cable and are banded every 2 feet with heavy-duty type head shrink tubing
- Extensions feature stage pin connectors machined from high temperature phenolic material
- Double set screw terminals for secure terminations
- Stage pin connectors are ETL Listed
