Theatre Curtain Track (Six Track) Kit - Line Operated System with Overlap

Doughty Theatre Curtain Track, known as Six Track, is a modular curtain track system suitable for a wide range of stage and theatre applications.

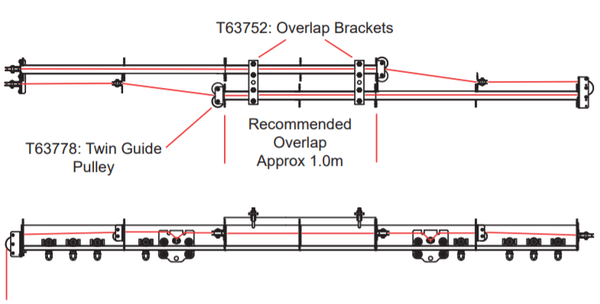

Six Track line-operated systems can be installed in an overlap configuration, requiring the use of overlap brackets and twin guide pulleys (See the diagram). The recommended overlap length is approximately 3.3'. The overlap track system can be extended to 59' in length, suitable for the wide venues that need a curtain to run across.

This Theatre Curtain Track Kit includes all the components required to install your chosen track length. It comprises of a track, end stops, ball-raced runners, adjustable support brackets, a nut and bolt set, master runners, pulleys, hauling line, line supports, overlap brackets, overlap pulleys and a weighted hand pulley.

A wide range of track lengths is in stock.

We also supply walk-along and regular line-operated system.

User Manual - Applications of Doughty Curtain Track - Blog on Theatre Curtain Track

COMPONENTS OF THE THEATRE CURTAIN TRACK KIT (LINE-OPERATED OVERLAP)

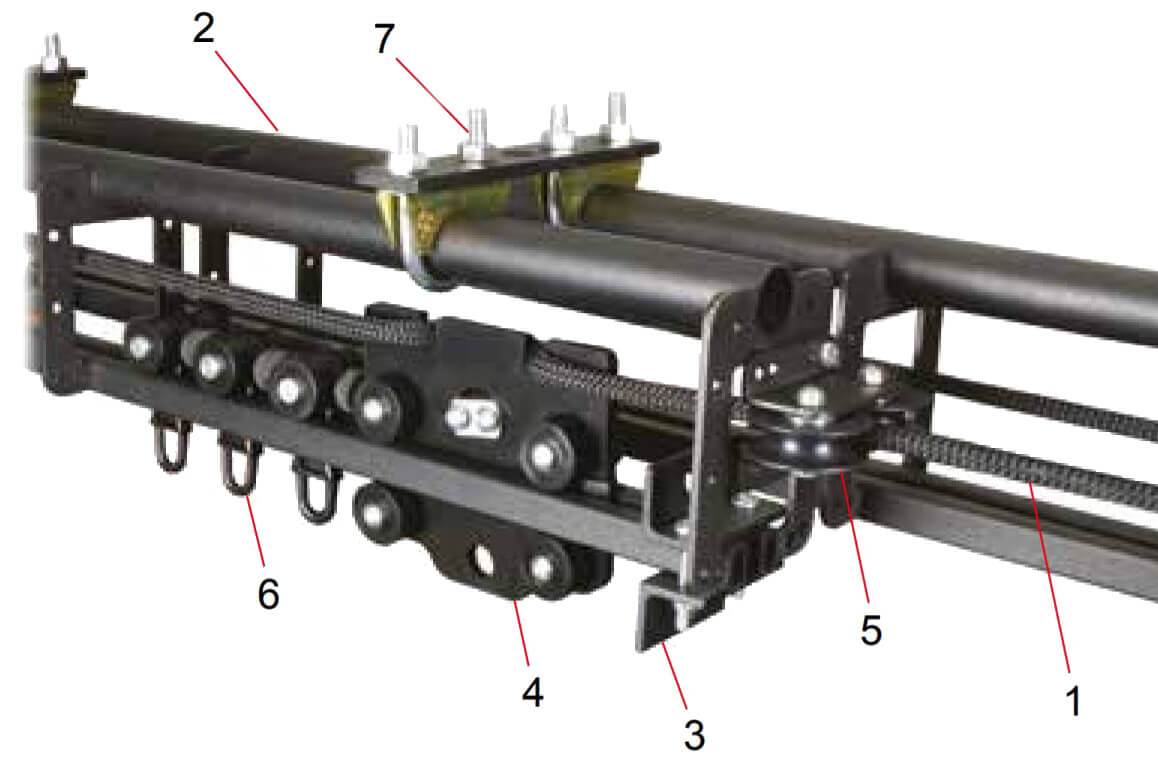

The name of different parts:

1. Hauling Line
2. Straight track
3. End stops (2 pairs per kit)
4. Master runner (2 per kit)
5. Pulleys (2 guide pulleys, 1 return pulley & 1 twin head pulley)
6. Ball raced runners (1 per 300mm / 11.8'' of Track)
7. Overlap brackets (2 per Kit)

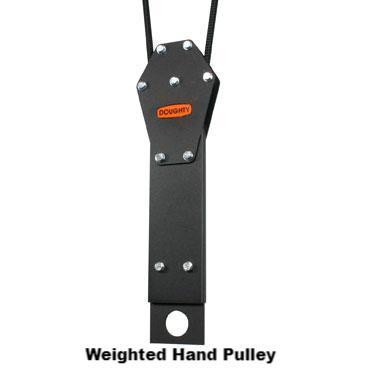

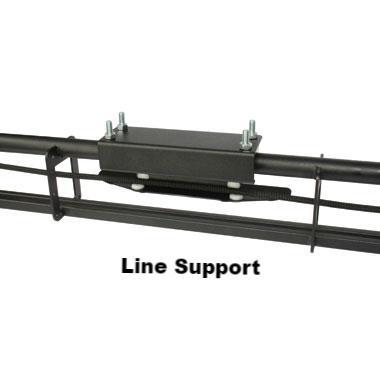

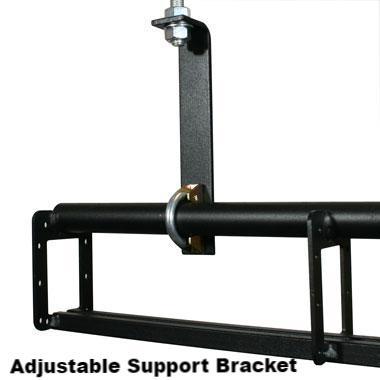

8. Line supports, weighted hand pulley and adjustable support brackets

Note:
1/ Other support brackets and fasteners may be required depending on individual installation methods.
2/ The maximum recommended length of a single span track is 10 m / 32.8' and 18.0 m / 59.1' for an overlap track system
3/ If space is a concern for your track installation, Doughty Rail System, a low profile and semi-professional product, can be a great and budget solution to small venues where space is tight.
