Doughty Theatre Curtain Track (Six Track) Kit- Walkalong System

Doughty Theatre Curtain Track (Six Track) Kit- Walkalong System

Designed for professional stage and theatre applications, the Doughty Theatre Curtain Track (Six Track) Kit - Walkalong System is a modular and versatile curtain track solution. As the most popular and cost-effective option, this walk-along kit allows manual curtain operation by simply pulling the curtain by hand to open or close it along the track.

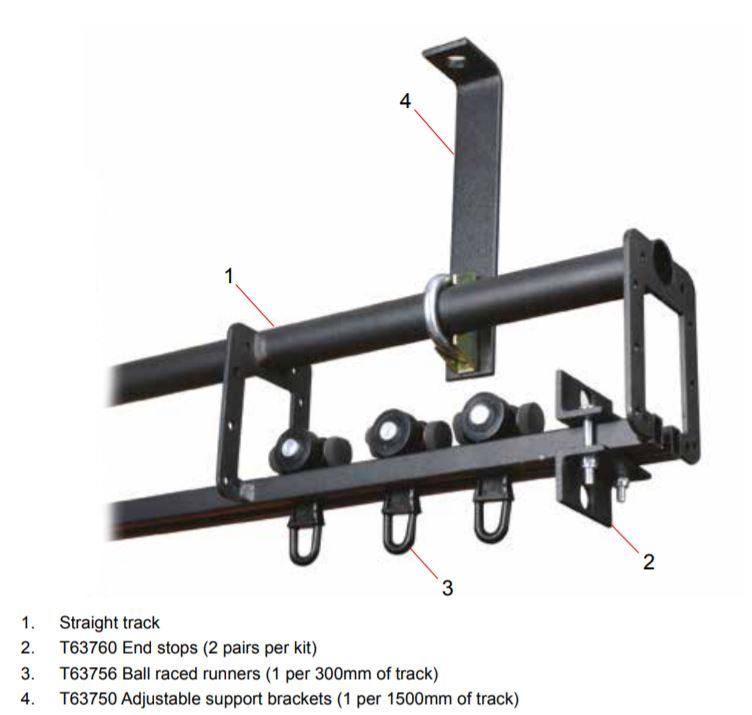

Whether installed in a straight or curved configuration, this system is engineered for durability and ease of use. It includes all essential components such as track sections (available in various lengths), end stops, ball raced runners, adjustable support brackets, and a fixing kit for seamless installation.

Manufactured by Doughty Engineering, a trusted name in theatrical rigging equipment, this kit ensures safety, reliability, and high performance in demanding stage environments. Please contact us via chat, email at shopmtn@mountainproductions.com, or call (888) 516-0737 to place your order.

Downloads:

User Manual

Key Features:

• Modular walk-along curtain track system for manual operation
• Compatible with both straight and curved stage configurations
• Includes all necessary components for installation
• Cost-effective solution for theatres and performance venues
• Manufactured by Doughty Engineering with TÜV-approved components

Specifications:

• Material: Strong steel fabrication using a tubular top hanging bar and rectangular section tube rails

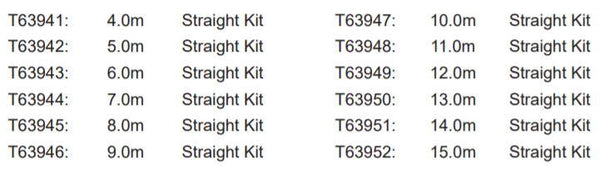

• Length: 13' - 49'
• Finish: Black powder coated
• Ball Raced Runners (T63756): 6kg WLL per runner, 1 per 300mm of track
• Adjustable Support Brackets (T63750): Recommended quality, 1 per 1500mm of track

References:

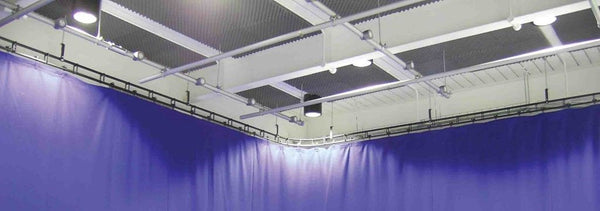

• Theatre Curtain Track Application
• Theatre Curtain Track Blog
• Line-operated Track Kit

Manufactured by Doughty Engineering, a UK-based leader in rigging and suspension equipment since 1985, the Six Track Kit is built to meet the highest standards of safety and performance. Doughty is a proud member of ESTA and PLASA and adheres to rigorous quality assurance protocols.
