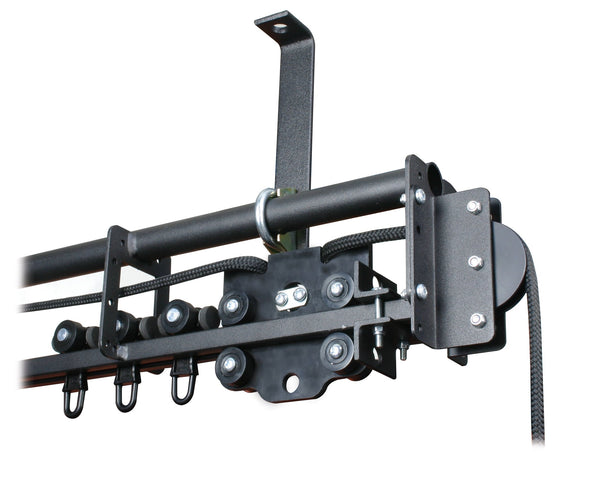

  • Doughty Stage Curtain Track (Six Track) Kit - Line Operated System. 4m-15m Length. Supplied by MTN Shop EU
  • Doughty Stage Curtain Track (Six Track) Kit - Line Operated System. 4m-15m Length. Supplied by MTN Shop EU

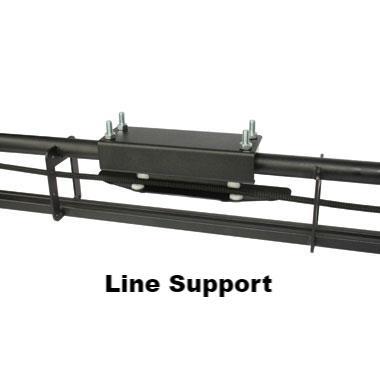

  • Doughty Line Support.

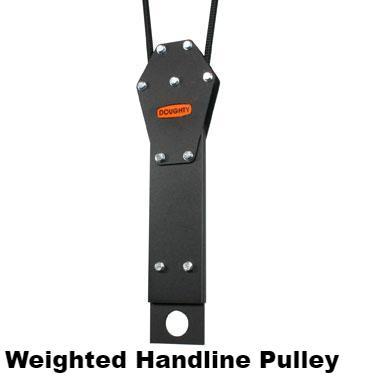

  • Doughty Weighted Handline Pulley

Doughty Theatre Curtain Track (Six Track) Kit- Line Operated System

Product No. T63908

Regular price $1,101.96 USD
SIZE
Shipping calculator
Please select country
Please enter correct zip code
Payment methods
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Product details

Theatre Curtain Track (Six Track) Kit - Line Operated System

Doughty Theatre Curtain Track, known as 'Six Track,' is a modular curtain track system suitable for a wide range of stage and theatre applications, offering a professionally tailored solution to your needs.

The line-operated system can be straight or curved and it, as the name indicates, is operated with an 8mm diameter polyester hauling line. The line can be controlled by hand with a pulley, or with a wall/floor mounted Manual Track Drive, allowing a high level of professionalism. This system allows the operator to stand at one end of the stage and use the line to open/close the curtains.

This theatre curtain track kit includes all the components required to install your chosen one - a track, adjustable support brackets, a nut and bolt set, runners, pulleys, hauling line and line supports.

A walk-along system is also available.

User Manual - Applications of Doughty Curtain Track - Blog on Theatre Curtain Track

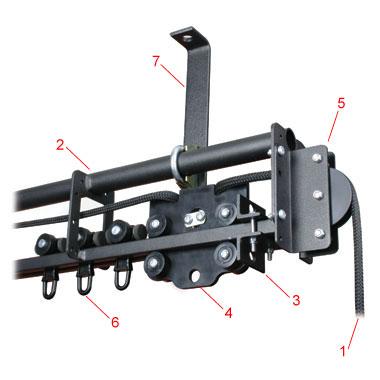

COMPONENTS OF THE THEATRE CURTAIN TRACK KIT (LINE-OPERATED)

Stage Curtain Track (Line-operated system)

1. Hauling Line
2. Straight track
3. End stops (2 pairs per kit)
4. Master runner  (1 per kit)
5. Pulleys (1  return pulley & 1 twin head pulley)
6. Ball raced runners (1 per 11.8'' / 300mm of track)
7. Adjustable support brackets (1 per 59'' / 1500mm of track)
8. Line supports, and weighted hand pulley (See User Manual)
9. Fixing Kit  (for joining track sections)



STAGE CURTAIN PULLEY SYSTEM

A. For system less than 16.4' or 5m:

Stage Curtain Pulley System Less than 5m

B. For system more than 16.4' or 5m:

Stage Curtain Pulley System More than 5m

Line supports and single guide pulleys are recommended on systems 5.0m and longer. Line support provides support for sagging hauling lines or lines spanning a large distance. It is recommended that pre-stretched polyester cord is used to minimize lines sagging. Single Guide Pulley is used to preventing the hauling lines from sagging and chaffing for trouble-free operation.

For more details, please refer to the User Manual attached.


    Note:
    1. Other support brackets and fasteners may be required depending on individual installation methods.
    2. If space is a concern for your track installation, Doughty Rail System, a low profile and semi-professional product, can be a great and budget solution to small venues where space is tight.

      Doughty Engineering

      Doughty Engineering is a UK-based entertainment equipment manufacturer and began the manufacture of products in 1985. Now, it is one of the world’s leading manufacturers of rigging, suspension and lifting equipment for film/TV, theatre and concert halls.

      Quality and safety are key issues for Doughty. All our products are subjected to the most rigorous testing possible and, where appropriate, are approved by the TÜV product services. Such products show the TÜV logo.

      Doughty® are members of ESTA (Entertainment Services and Technology Association) and PLASA (Professional Light and Sound Association) and adhere strictly to the standards of trading expected
