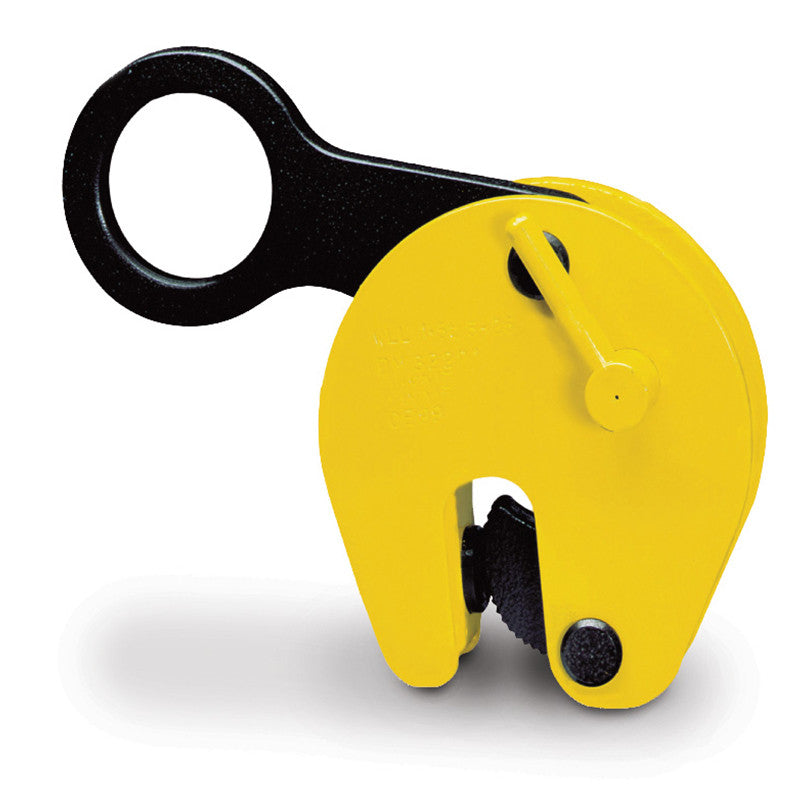

The Camlock TTR Girder Clamp can be used on girders and rolled steel joists up to a surface hardness of 300 Brinell (32HRc). TTR Girder Clamps are specially designed for handling structural beams with the flange in the vertical, or “H”, position.
- Used to lift and transport structural beams up to a surface hardness of 300 Brinell (32HRc) with the flanges in the upright position
- Versatile tool for transporting girders and joists. Can be used to lift and stack girders horizontally.
- The hook rings are designed to be as a near to the center of gravity as possible, resulting in a near horizontal lift
- Clamp is fitted with a cam-operated locking mechanism
- Short beams may be lifted with a single clamp, longer beams should use 2 clamps in combination with a spreader beam
- Design factor 4:1
| Product Code | Dimensions (in) * | Weight(lbs) | |||||
| A | B | C | D | E | F | ||
| TTR750 | 5.375 | 7.5 | 2 | 1.75 | 2.375 | 3.5 | 7.7 |
| TTR1500 | 7.5 | 10.625 | 2.625 | 2.625 | 3 | 4.875 | 22 |
| TTR3000 | 8.25 | 9.875 | 3.5 | 2.625 | 3.375 | 5 | 26.5 |

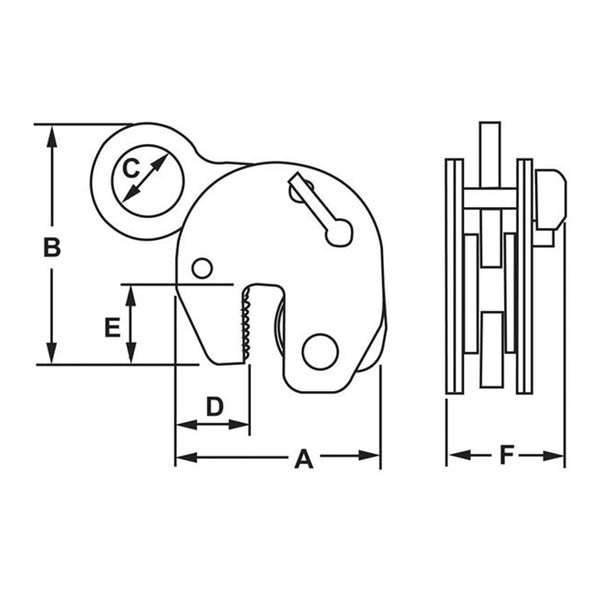

* Refer to product drawing above
| Product Code | Working Load Limit | Flange (in) | |
| Minimum (lbs) | Maximum (lbs) | ||
| TTR750 | 90 | 1,600 | 1/4 to 5/8 |
| TTR1500 | 350 | 3,300 | 1/4 to 1 |
| TTR3000 | 700 | 6,600 | 1/4 to 1 |
