3M™ DBI-SALA® Window and Door Jamb Anchor

• DESCRIPTION
• SPECIFICATIONS
• FEATURES
• VIDEO + RESOURCES

3M™ DBI-SALA® Window and Door Jamb Anchor

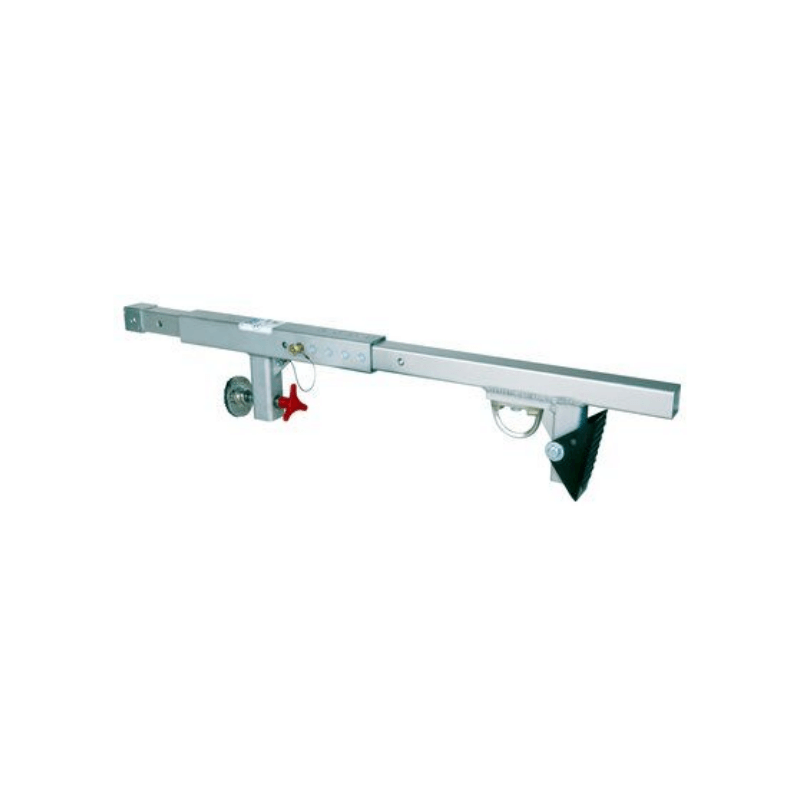

The 3M™ DBI-SALA® Window and Door Jamb Anchor installs into 21.5'' - 51.5'' door/window jambs. With a compact and lightweight aluminum design, this anchorage connector features a built-in adjustment knob and telescoping design as well as an integrated D-ring tie-off point. Portable and reusable, its non-penetrating design eliminates site damage so that it can be utilised in almost any situation. The 3M™ DBI-SALA® Window and Door Jamb Anchor is built from top quality, rugged and corrosion resistant materials that guarantee high strength and durability to stand up to the toughest of environments.

For any inquiries please contact us via Chat.

SPECIFICATIONS

• Capacity: 310 lbs
• Weight: 1.39 lbs

• Dimensions: 56.4'' x 7.1'' x 2.5''

• Overall Length: 143 ft
• Anchor Material: Aluminum
• Attachment Type: Clamp
• Install Type: Reusable
• iSafe Equipped: No
• Recommended Industry: Construction, General Industrial, Mining, Oil & Gas
• Standards:  OSHA 1910.140, OSHA 1926.502

FEATURES

• Installs into 21.5'' - 51.5'' door/window jamb openings
• Non-penetrating design eliminates site damage
• Portable and reusable
• Compact and lightweight aluminium design
• Built-in adjustment knob and telescoping design
• Rugged and corrosion resistant materials
• Integrated D-ring tie-off point

RESOURCES

Catalog

3M™ DBI-SALA® Fall Protection For Tools Product Catalog

Instructions

3M™ DBI-SALA® Window and Door Jamb Anchor Instructions

Certificates

2100080: Certificate of Compliance, Declaration of Conformity
