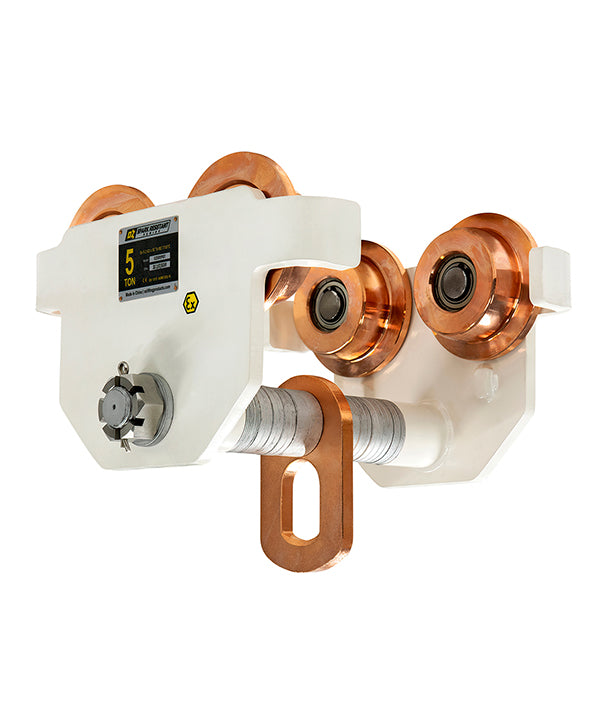

  • OZ Lifting Spark Resistant Push Beam Trolleys– The Oz Lifting spark resistant push beam trolley is designed for safe use in potentially explosive atmospheres. When working in explosive zones there are extremely strict guidelines and requirements for the equipment you use. OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C.

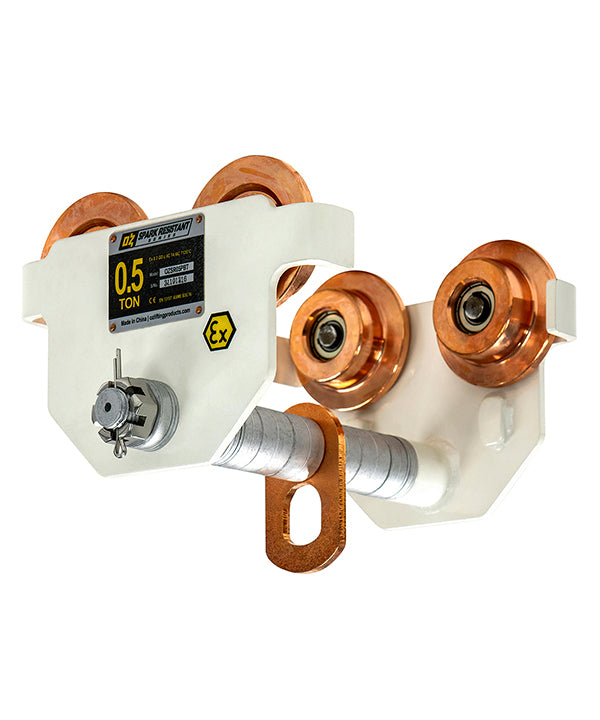

  • OZ Lifting Spark Resistant Push Beam Trolleys– The Oz Lifting spark resistant push beam trolley is designed for safe use in potentially explosive atmospheres. When working in explosive zones there are extremely strict guidelines and requirements for the equipment you use. OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C.

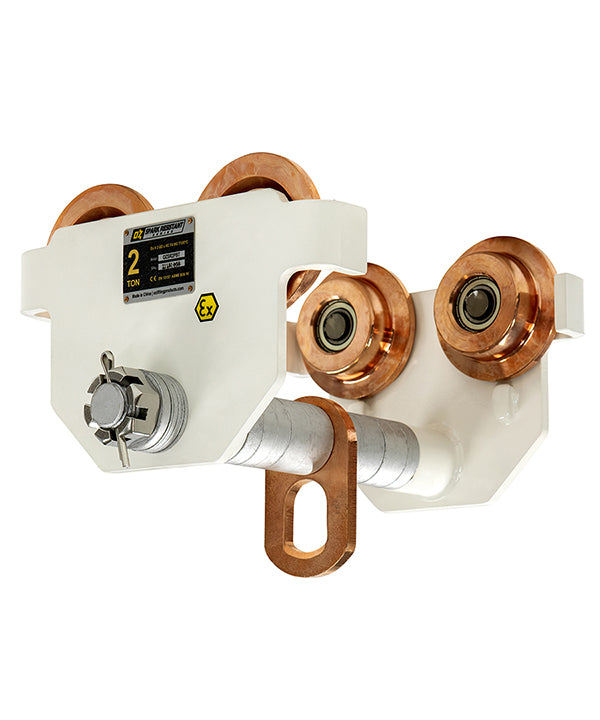

  • OZ Lifting Spark Resistant Push Beam Trolleys– The Oz Lifting spark resistant push beam trolley is designed for safe use in potentially explosive atmospheres. When working in explosive zones there are extremely strict guidelines and requirements for the equipment you use. OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C.

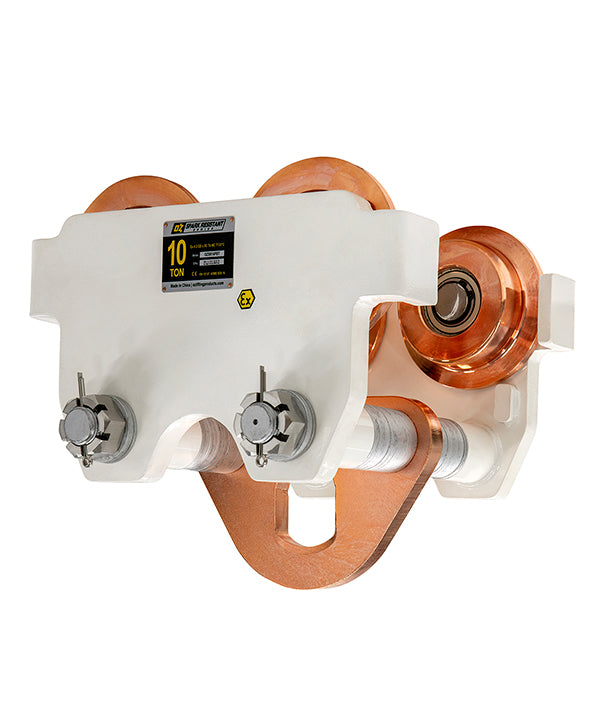

  • OZ Lifting Spark Resistant Push Beam Trolleys– The Oz Lifting spark resistant push beam trolley is designed for safe use in potentially explosive atmospheres. When working in explosive zones there are extremely strict guidelines and requirements for the equipment you use. OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C.

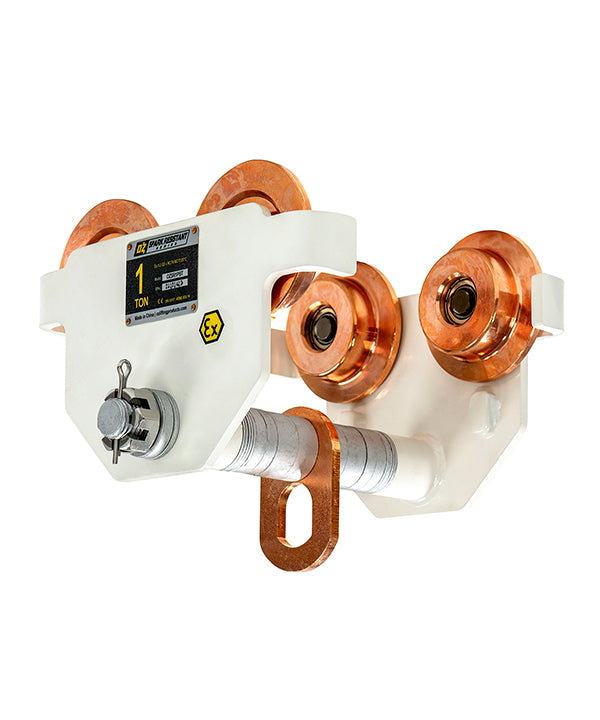

  • OZ Lifting Spark Resistant Push Beam Trolleys– The Oz Lifting spark resistant push beam trolley is designed for safe use in potentially explosive atmospheres. When working in explosive zones there are extremely strict guidelines and requirements for the equipment you use. OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C.

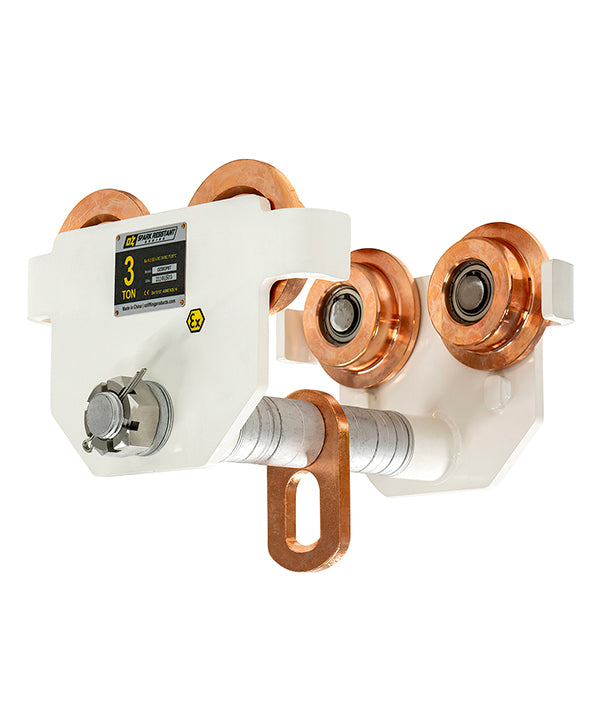

  • OZ Lifting Spark Resistant Push Beam Trolleys– The Oz Lifting spark resistant push beam trolley is designed for safe use in potentially explosive atmospheres. When working in explosive zones there are extremely strict guidelines and requirements for the equipment you use. OZ Lifting Products’ Spark Resistant Push Beam Trolleys are manufactured in compliance with the EU’s explosion-proof standard ATEX94/9/EC and the Machinery Directive 2006/42/EC. The explosion-proof level can reach: EX II2 GD c IIIC T135°C.

Carros de viga de empuje resistentes a chispas de elevación OZ

Ningún producto. OZSR05PBT

Precio habitual $603.73 $603.73
New Year Sale – Tiered Savings Sitewide
$25 off $250 – With Code NEWYEAR25
$50 off $500 – With Code NEWYEAR50
$100 off $1000 – With Code NEWYEAR100
Sale ends soon…

View our Promotion Policy

CAPACIDAD
Fecha de entrega estimada
Seleccione el país
Ingrese el código postal correcto
Métodos de pago
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Detalles del producto

Carros de viga de empuje resistentes a chispas de elevación OZ

El levantamiento de Oz carro de viga de empuje resistente a chispas está diseñado para un uso seguro en atmósferas potencialmente explosivas. Cuando se trabaja en zonas explosivas, existen directrices y requisitos extremadamente estrictos para el equipo que se utiliza.  Estos carros de viga están diseñados para usarse con polipastos manuales o eléctricos.



Los carros con viga de empuje resistentes a chispas de OZ Lifting Products se fabrican de conformidad con la norma a prueba de explosiones de la UE ATEX94/9/EC y la Directiva de maquinaria 2006/42/EC. El nivel a prueba de explosiones puede alcanzar: EX II2 GD c IIIC T135°C. Son adecuados para atmósferas potencialmente explosivas, incluidas las zonas 1 y 2 (gas), así como las zonas 21 y 22 (polvo).

CARACTERÍSTICAS

  • Recubrimiento antichispas
  • Ruedas de carro chapadas en cobre y fardo de elevación.
  • Etiquetas de identificación remachadas de cobre
  • Se adapta a la mayoría de vigas I, S y W.
  • Ruedas de carro con rodamientos de bolas de precisión
  • Placa anticaída
  • Certificado de prueba individual y número de serie
Estándares: CE, ATEX–94/9/EC (Ex II 2 GD c IIC T4 IIIC T135°C), AS1418.2, ASME B30.11, ASME B30.16 (para uso con polipastos manuales o eléctricos)

    OZSR05PBT OZSR1PBT OZSR2PBT OZSR3PBT OZSR5PBT  OZSR10PBT
Capacidad (toneladas)   .5 1 2 3 5  10
 Curva de radio mínimo (pies)   2.62   3.28  3.61 4.26   4.59  6.56
Dimensiones del producto (pulg.) un 11.61 12.24 16.89 17.52  17.99 19.29
  b 7.83 9.69 10.87 13.07  14.84 16.69
  c 7.36 8.74 10.34 12.17 13.90 15.59
  GRAMO 4.13 4.92 5.91 6.73  7.72 7.48
Grosor máximo de brida (pulg.) mi  1.18 1.50 1.50 1.57  1.65 1.77
 Ancho de brida ajustable (pulg.)    1.97-8.00 2.50-8.00   3.64-12.00 3.94-12.00   4.50-12.00 4.88-12.00
Peso neto (libras)   16 23 42 64 95 196

Dimensiones de rueda y fianza.

 TAMAÑO 0.5T 1T 2T  3T   5T 10 toneladas
mi (pulg) 3.11 3.74  4.25  5.12  5.63 6.93
F (pulg.) 2.17 2.68  3.15  3.94 4.33  5.35
G (pulg.) 3.50 4.02 5.12   6.02 7.24  7.68
H (pulg.) 1.26 1.58 2.05  2.48  2.95  4.72
yo (en) 0.57 0.59  0.71 0.87   1.18 1.77
J (pulg.) 0.98 1.18  1.50 1.58  1.97  2.84
K (pulg) 1.97 2.44 2.95  3.35   4.25 11.42
L (pulg.) 0.24 0.32  0.47  0.55  0.63 0.98
