Allegro Pneumatic 20" Jet Fan
Ningún producto. 037-9518-20
Precio habitual
$4,485.62 USD
Fecha de entrega estimada
Ingrese el código postal correcto
Métodos de pago
Detalles del producto

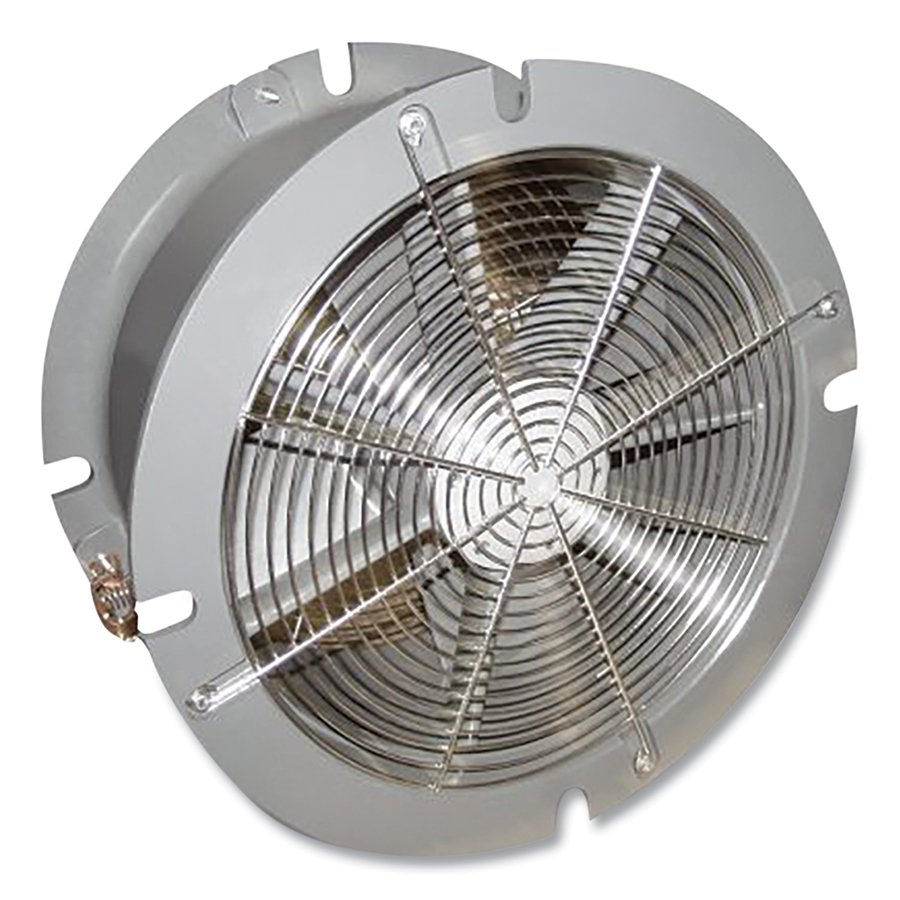

Allegro Pneumatic Jet Fan, 20 in dia Inner, 4 Blades, 10500 ft³/min, 60 to 292 SCFM, 40 to 100 psig
-
Heavy-duty aluminum fan can be used as a blower or exhaust by simply reverse mounting
-
Compressed air is pushed through a nozzle at the end of each blade creating the fan to propel at speeds up to 10,500 CFM (20-inch model) or 16,000 CFM (24-inch model) at 100 psig quickly and efficiently
- Heavy-duty ball bearings are permanently lubricated and sealed for the life of the fan
Specifications
| Air Consumption [Max] | 292 SCFM |
| Air Consumption [Min] | 60 SCFM |
| Blade Material | Heavy-Duty Aluminum |
| Brand | ALLEGRO |
| Color | Gray |
| Country of Origin | US |
| Dia. [Max] | 24.75 in |
| Dia. [Min] | 20 in |
| Fan Type | Blower; Exhaust |
| Hazmat | NO |
| Height [Nom] | 9.875 in |
| Inlet Pressure [Max] | 100 psig |
| Inlet Pressure [Min] | 40 psig |
| Inlet Size | 3/4 in |
| Inlet Type | NPT |
| MPI Catalog | NO |
| Material | Aluminum; Stainless Steel Fan Shaft |
| Mounting | Side-Mounted Inlet Connector |
| No. of Blades | 4 |
| Power Source | Pneumatic |
| Prop 65 | NO |
| Speed [Max] | 10500 ft³/min |
-
A spark-resistant fan with recessed handles for easy portability or it can be rolled.
