Adaptive Technologies U-Bracket Speaker Mount

Adaptive Technologies Group U-Bracket Speaker Mount

Adaptive Technologies Group |

SKU: UB-0850

Model: UB-0850

14 fixed widths, UB-0850 to UB-325-13: Pick the exact width of your loudspeaker for a clean fit.
40 to 150 lb at 10:1: High safety margin for permanent speaker installs on walls and ceilings.
Down tilt up to 60° (90° on QSC models): Aim the speaker down toward the audience from overhead.
Hardware and isolation gaskets included: Friction lock holds the aim and reduces sound transfer.

Ver descripción completa Datos técnicos

Incluido

Adaptive Technologies Group U-Bracket Speaker Mount

Adaptive Technologies Group UB Metric Hardware Kit

Adaptive Technologies Group UB-3RDX-60 100lb 3rd Axis Adjustment for U-Brackets

Adaptive Technologies Group UB-MT-500NPS 80lb Tube Adapter

Adaptive Technologies Group Fixed Width U-Bracket Speaker Mount

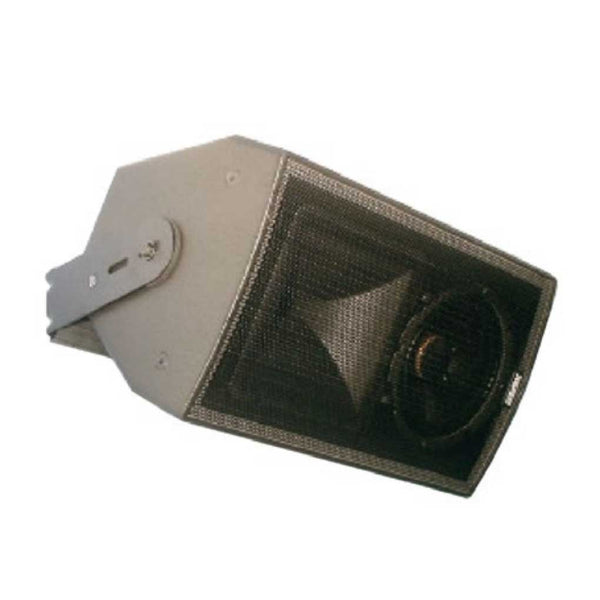

The Adaptive Technologies Group fixed width U-Bracket speaker mount secures and aims loudspeakers from walls, ceilings, under balconies and overhangs. The speaker rotates in the arms for down tilt up to 60 degrees (90 degrees on the UB-225-9, UB-263-12 and UB-325-13), and the brackets can also go under truss, on tripod stands or on pipe and threaded rod.

English standard hardware and sound isolation gaskets are included, and base holes are offset on 12, 16 and 20 in centers for wall studs. Brackets are packed two per carton.

Key Features and Highlights

Fixed widths by SKU: Fourteen models from UB-0850 to UB-325-13.
WLL 40 to 150 lb: Rating by model; 10:1 design factor.
Down tilt up to 60 degrees: Up to 90 degrees on the UB-225-9, UB-263-12 and UB-325-13.
Stud-ready base: Holes offset on 12, 16 and 20 in centers.
Hardware and gaskets included: Gaskets add a friction lock and block sound transfer.

Who Is This Product For?

Ideal for: Installers who need speaker hanging brackets and ceiling brackets for loudspeakers on walls, ceilings, balconies and truss in venues, houses of worship and commercial spaces.

Important: Metric hardware (UB-M06-BK, UB-M08-BK, UB-M10-BK) is sold separately. Rated for indoor use. Always install safety cables.

Specifications

Design Factor: 10:1
Tilt: Down tilt up to 60 degrees; up to 90 degrees (UB-225-9, UB-263-12, UB-325-13)
Stud Centers: 12, 16, 20 in
Included: English standard hardware, sound isolation gaskets
Material: Structural steel alloy, black powder coat
Pack: 2 per carton
Use: Indoor

Explore Adaptive Technologies Group Equipment

Explore the complete Adaptive Technologies Group collection for professional rigging and loudspeaker mounting equipment.

Shop more speaker mounting brackets in our Brackets collection and the full Rigging Hardware for Live Events range.

For bulk orders, project requirements or pricing, Request a Quote. Have questions about compatibility or product selection? Contact Us.

Preguntas frecuentes

How do I choose the right U-Bracket speaker mount width?

Each U-Bracket model has a fixed width, from the UB-0850 up to the UB-325-13. Measure the width of your loudspeaker at its mounting points and choose the model that matches, then check that the speaker weight stays within that model’s rating.

Can the U-Bracket speaker mount be used on a ceiling or truss?

Yes. The U-Bracket mounts on walls, ceilings, under balconies and overhangs, and can also hang under truss, sit on tripod stands or attach to pipe and threaded rod. Base holes on 12, 16 and 20 in centers line up with wall studs.

Is hardware included with the U-Bracket speaker mount?

Yes. Each U-Bracket comes with English standard hardware and sound isolation gaskets, which add a friction lock and reduce sound transfer to the structure. If your speaker uses metric threads, order the UB-M06-BK, UB-M08-BK or UB-M10-BK kit separately.
