Adaptive Technologies Group Saddle Bracket Truss Mount

Adaptive Technologies Group Saddle Bracket Truss Mount

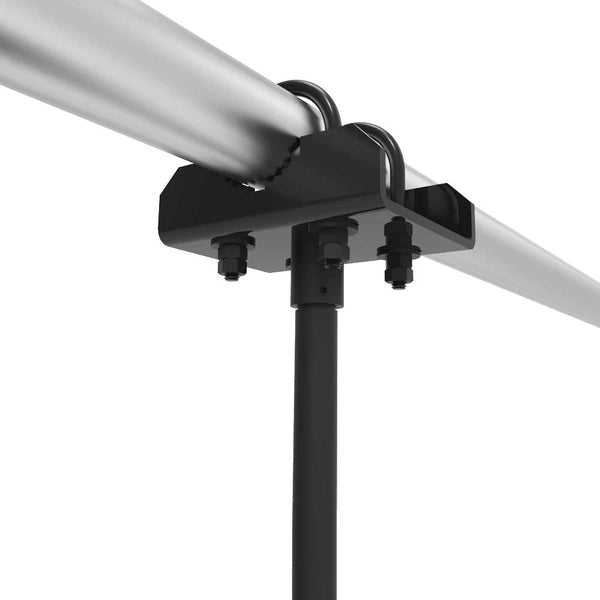

The Adaptive Technologies Group Saddle Bracket Truss Mount attaches threaded pipe drops to truss chords from 1-3/8 in to 2-1/2 in OD. The PS-500NPS-2 takes 1/2 in pipe and the PS-150NPS-2 takes 1-1/2 in pipe.

A built-in set screw locks the pipe, and the bracket is made from black powder-coated steel with a 5:1 design factor.

Key Features and Highlights

• Two pipe sizes: 1/2 in (PS-500NPS-2) and 1-1/2 in (PS-150NPS-2).
• Truss chords 1-3/8 to 2-1/2 in OD: Saddle bracket with U-bolt kit.
• Load ratings: 140 lb (63 kg) and 240 lb (109 kg), 5:1.
• Set screw lock: Built-in set screw secures the pipe.
• Black powder coat: Structural steel alloy.

What's in the Box

• 1 saddle bracket assembly
• 1 U-bolt kit

Who Is This Product For?

Ideal for: Installers dropping speaker and display mounts on pipe from truss.

Important: Use with PIPE-1.5-500-PR and Adaptive pipe extensions as needed. Always install safety cables.

Specifications

• Part Numbers: PS-500NPS-2, PS-150NPS-2
• Pipe Size: 1/2 in (PS-500NPS-2); 1-1/2 in (PS-150NPS-2)
• Truss Chord: 1-3/8 to 2-1/2 in OD
• WLL (Working Load Limit): 140 lb (63 kg) PS-500NPS-2; 240 lb (109 kg) PS-150NPS-2
• Design Factor: 5:1
• Material: Structural steel alloy
• Finish: Black powder coat
