Adaptive Technologies Group MP-500NPT-GSA 100lb Gimballed Ceiling Mount

Adaptive Technologies Group MP-500NPT-GSA 100 lb Gimballed Ceiling Mount

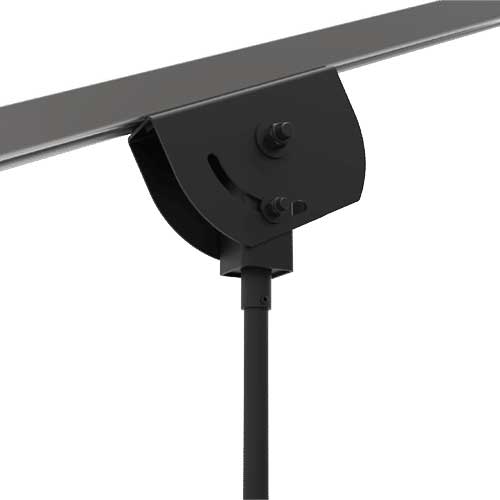

The Adaptive Technologies Group MP-500NPT-GSA is a gimballed ceiling attachment for hanging loudspeakers, displays and other objects from sloped ceilings and roofs, up to 90 degrees off vertical. It also mounts to Unistrut or can be bolted through strut.

It uses standard 1/2 in Schedule 40 pipe and holds up to 100 lb (45.3 kg) at a 7:1 design factor.

Key Features and Highlights

• Gimballed: Works on angles up to 90 degrees off vertical.
• 1/2 in pipe: Standard NPT or NPS threaded steel pipe.
• 100 lb (45.3 kg) WLL: 7:1 design factor.
• Ceiling, strut or overhang: Flexible mounting.
• Wood beams: Pairs with the BC-GSA-100 Glulam attachment.

What's in the Box

• 1 gimballed strut adapter
• 2 hex bolts, 3/8-16 x 1.25 in
• 2 nyloc nuts, 3/8-16
• 2 flat washers, 3/8 in
• 1 instruction sheet

Who Is This Product For?

Ideal for: Installers hanging audio and video equipment from sloped ceilings and strut.

Important: Always install safety cables.

Specifications

• Part Number: MP-500NPT-GSA
• Pipe Size: 1/2 in NPT or NPS
• Angle: Up to 90 degrees off vertical
• WLL (Working Load Limit): 100 lb (45.3 kg)
• Design Factor: 7:1
• Material: Structural steel, black powder coat
• Shipping Weight: 8 lb (3.6 kg)
