Adaptive Technologies Group MP-1.5NPT-GSA 150lb Gimballed Ceiling Mount

Adaptive Technologies Group MP-1.5NPT-GSA 150 lb Gimballed Ceiling Mount

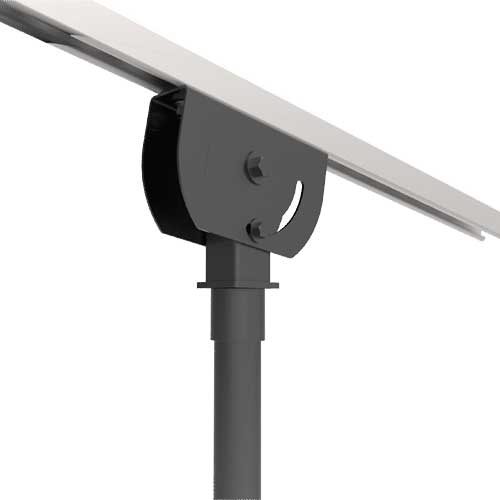

The Adaptive Technologies Group MP-1.5NPT-GSA is a gimballed strut attachment for hanging loudspeakers, displays and other objects from strut on sloped ceilings and roofs, up to 90 degrees off vertical.

It uses standard 1-1/2 in NPT or NPS pipe and holds up to 150 lb (68 kg) at a 7:1 design factor.

Key Features and Highlights

• Gimballed: Works on angles up to 90 degrees off vertical.
• 1-1/2 in pipe: Standard NPT or NPS threaded steel pipe.
• 150 lb (68 kg) WLL: 7:1 design factor.
• Strut or through-bolt mounting: Use 1/2-13 spring nuts (not included) or bolt through.
• Wood beams: Pairs with the BC-GSA-100 Glulam attachment.

What's in the Box

• 1 gimballed strut adapter
• 2 flat washers, 3/8 in
• 2 flange bolts, 1/2-13 x 2 in
• 2 retainer nuts, 1/2-13
• 2 nyloc nuts, 1/2-13
• 1 instruction sheet

Who Is This Product For?

Ideal for: Installers suspending audio and video equipment from strut on sloped ceilings.

Important: Spring nuts are not included. Always install safety cables.

Specifications

• Part Number: MP-1.5NPT-GSA
• Pipe Size: 1-1/2 in NPT or NPS
• Angle: Up to 90 degrees off vertical
• WLL (Working Load Limit): 150 lb (68 kg)
• Design Factor: 7:1
• Material: Structural steel, black powder coat
• Shipping Weight: 6.5 lb (3 kg)
