Adaptive Technologies Group CG-SH-1-245-IH Channel Strut Sound Isolation Bracket

Adaptive Technologies Group CG-SH-1-245-IH Strut Sound Isolation Hanger

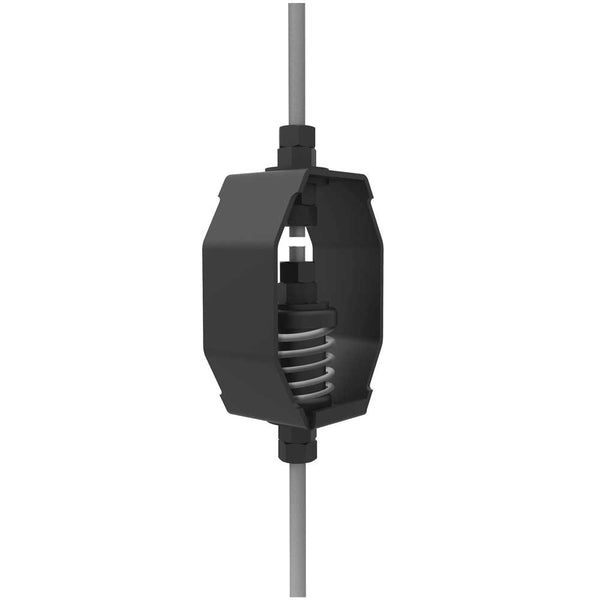

The Adaptive Technologies Group CG-SH-1-245-IH vibration isolation hanger reduces the vibration and noise that suspended equipment and piping pass into the building structure.

It combines a high-deflection color-coded spring, a no-short spring cap and a noise isolation pad in a hanger bracket, rated 175 lb (79.3 kg) at a 7:1 design factor.

Key Features and Highlights

• Spring isolation: High-deflection color-coded spring.
• No-short spring cap: Plus noise isolation pad.
• 175 lb (79.3 kg) WLL: 7:1 design factor.
• Threaded rod included: Black powder-coated steel.

What's in the Box

• 1 isolation hanger
• 1 all-thread rod
• 1 hardware kit

Who Is This Product For?

Ideal for: Installers hanging loudspeakers and equipment where noise transfer matters.

Important: Always install safety cables.

Specifications

• Part Number: CG-SH-1-245-IH
• WLL (Working Load Limit): 175 lb (79.3 kg)
• Design Factor: 7:1
• Isolation: Color-coded spring, no-short cap, isolation pad
• Material: Structural steel, black powder coat
