CM Cyclone Army Style Trolley Hoist
Product No. 4521
🎄 Due to the busy Christmas period, please note that orders placed between Monday 16th December and Thursday 2nd January may take longer than usual to be delivered.
Shipping calculator
Payment methods
Product details

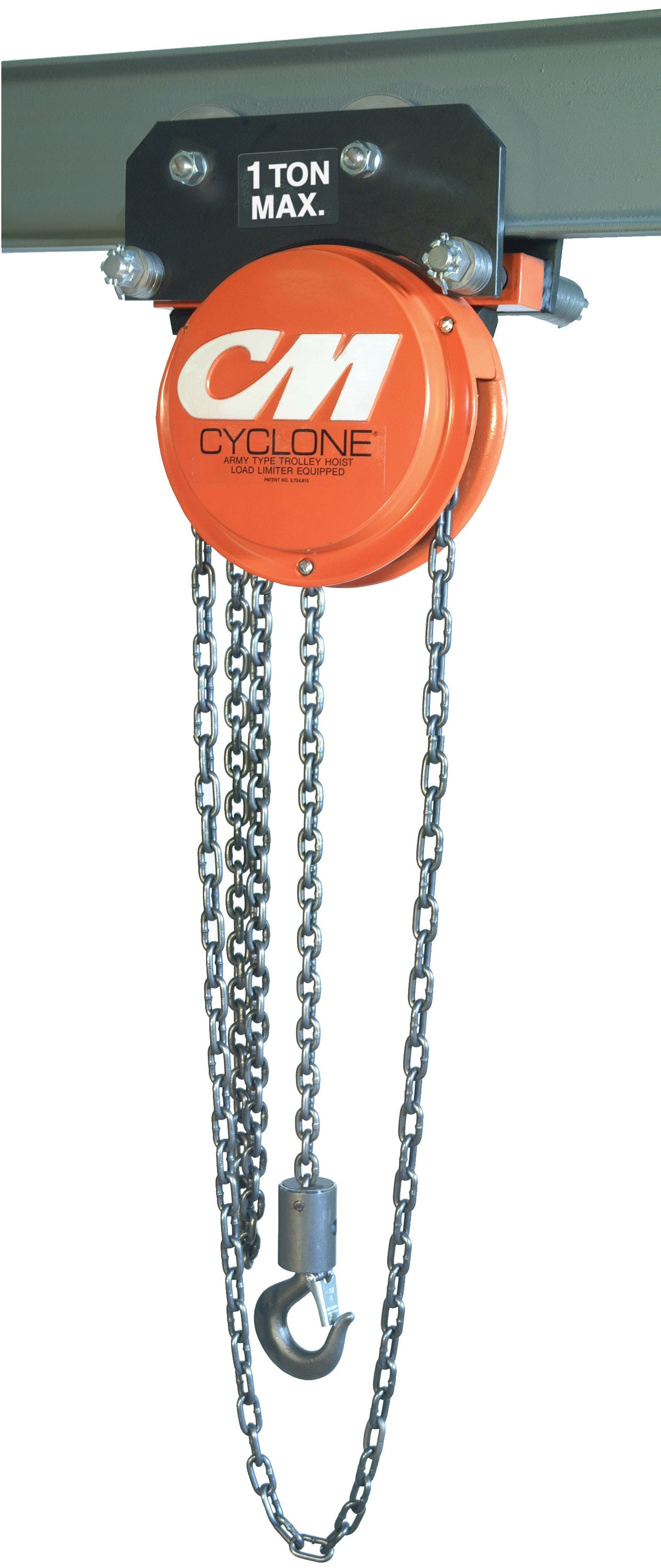

The CM Cyclone Army Type Trolley Hoist offers the same quality and performance as the Cyclone in a compact, low headroom integral trolley mount. The Cyclone Army Type Trolley Hoist offers rugged steel loadbars connected directly to the hoist frame, universal tread trolley wheels for operation on sloped or flat flanged beams, and a standard load limiter that ensures automatic overload protection. Columbus McKinnon offers a lifetime warranty on this metric rated trolley hoist.
Product Literature
RELATED CONTENT
• Capacity: 1/4 Ton; 1/2 Ton; 1 Ton; 1.5 Ton; 2 Ton; 3 Ton; 4 Ton; 5 Ton; 6 Ton; 8 Ton; 10 Ton; or 12 Ton
• Lift: 10'; 15'; or 20'
| PRODUCT CODE | RATED CAPACITY (TONS) | STANDARD LIFT (FT) | HAND CHAIN PULL TO LIFT RATED LOAD (LBS) | HAND CHAIN OVERHAULED TO LIFT LOAD 1' (FT) | APPROX. SHIPPING WEIGHT (LBS) |
| 4521 | 1/4 | 10 | 23 | 22.5 | 69 |
| 4766 | 1/4 | 15 | 23 | 22.5 | 77 |
| 4790 | 1/4 | 20 | 23 | 22.5 | 84 |
| 4522 | 1/2 | 10 | 46 | 22.5 | 69 |
| 4767 | 1/2 | 15 | 46 | 22.5 | 89 |
| 4791 | 1/2 | 20 | 46 | 22.5 | 84 |
| 4524 | 1 | 10 | 69 | 30 | 82 |
| 4768 | 1 | 15 | 69 | 30 | 90 |
| 4792 | 1 | 20 | 69 | 30 | 98 |
| 4525 | 1.5 | 10 | 80 | 40.5 | 141 |
| 4769 | 1.5 | 15 | 80 | 40.5 | 152 |
| 4793 | 1.5 | 20 | 80 | 40.5 | 164 |
| 4526 | 2 | 10 | 83 | 52 | 140 |
| 4770 | 2 | 15 | 83 | 52 | 151 |
| 4794 | 2 | 20 | 83 | 52 | 163 |
| 4527 | 3 | 10 | 85 | 81 | 190 |
| 4771 | 3 | 15 | 85 | 81 | 208 |
| 4795 | 3 | 20 | 85 | 81 | 226 |
| 4528 | 4 | 10 | 87 | 104 | 203 |
| 4772 | 4 | 15 | 87 | 104 | 221 |
| 4796 | 4 | 20 | 87 | 104 | 239 |
| 4529 | 5 | 10 | 74 | 156 | 279 |
| 4773 | 5 | 15 | 74 | 156 | 304 |
| 4797 | 5 | 20 | 74 | 156 | 329 |
| 4530 | 6 | 10 | 89 | 156 | 284 |
| 4774 | 6 | 15 | 89 | 156 | 309 |
| 4798 | 6 | 20 | 89 | 156 | 334 |
| 4531 | 8 | 10 | 91 | 208 | 529 |
| 4775 | 8 | 15 | 91 | 208 | 568 |
| 4799 | 8 | 20 | 91 | 208 | 607 |
| 4532 | 10 | 10 | 93 | 260 | 743 |
| 4776 | 10 | 15 | 93 | 260 | 775 |
| 4800 | 10 | 20 | 93 | 260 | 807 |
| 4533 | 12 | 10 | 95 | 312 | 1069 |
| 4777 | 12 | 15 | 95 | 312 | 1115 |
| 4805 | 12 | 20 | 95 | 312 | 1161 |
• Rugged steel loadbars connected directly to hoist frame
• Reduced headroom, side clearances and end approach for easy maneuvering of heavy loads in tight places
• Standard Load Limiter automatic overload protection
• Plain and geared trolley mounts in capacities from 1/4 to 12 tons
• Universal tread trolley wheels for operation on sloped or flat flanged beams
• Standard hand chain drop 2 feet less than lift (example: 8 foot lift hoist has 6 foot hand chain drop)
• Chain containers, zinc-plated load and hand chain, aluminum unwelded hand chain, Latchlok hooks, bronze hooks, bullard hooks, larger beam trolleys, trolley guards, and units without Load Limiter optional, depending on capacity
• Lifetime warranty
• Metric rated
• Made in U.S.A.
