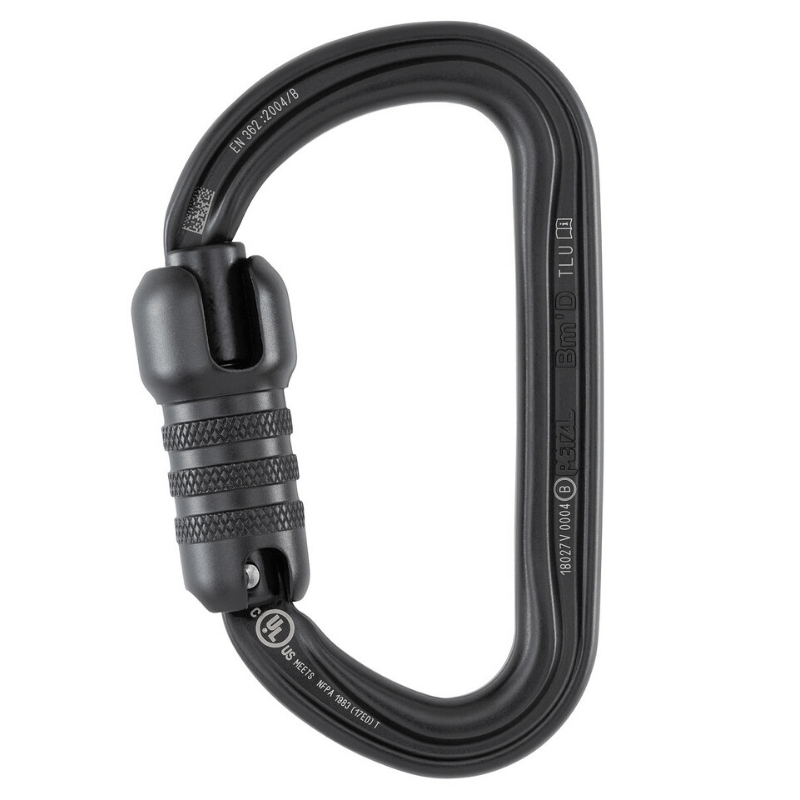

Petzl Bm’D Carabiner

The Petzl Bm’D is a lightweight asymmetrical carabiner made of aluminum. It has a D-shape particularly suited for connection to diverse equipment such as descenders or positioning lanyards. The fluid interior design and Keylock system facilitate handling and limit the risk of having a catch point. The Bm’D carabiner has the TRIACT-LOCK automatic locking system with triple-action gate opening. The sleeve is reinforced for greater front and lateral gate strength.

For any inquiries please contact us via Chat.

SPECIFICATIONS

• Material(s): Aluminum
• Locking System: TRIACT-LOCK
• Weight: 0.23 lbs
• Color: Black
• Major Axis Strength: 32 kN
• Minor Axis Strength: 16 kN
• Open Gate Strength: 10 kN
• Gate Opening: 0.7''
• Certification(s): CE EN 362, EAC, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12

FEATURES

• Aluminum carabiner is lightweight to reduce equipment weight carried by the user

• D-shape is particularly suited for connection to equipment such as descenders or positioning lanyards

• Sleeve is reinforced for greater front and lateral gate strength

• Easier handling:

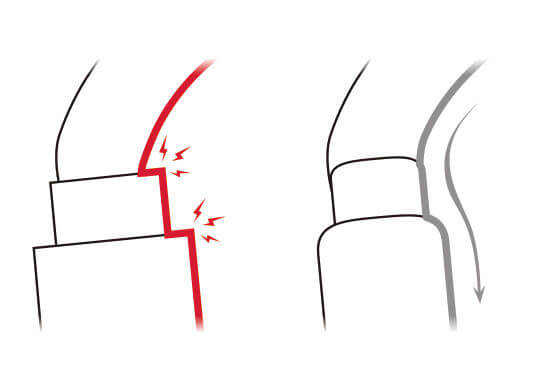

  - Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner

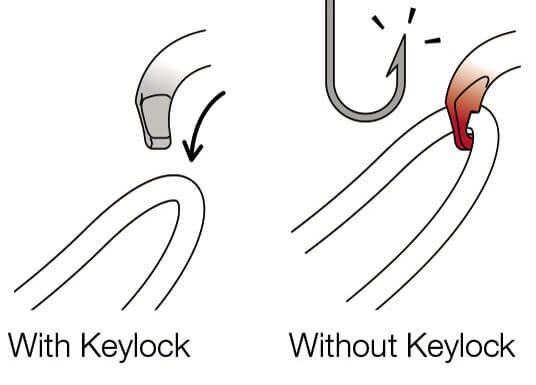

  - Keylock system to avoid any involuntary snagging of the carabiner

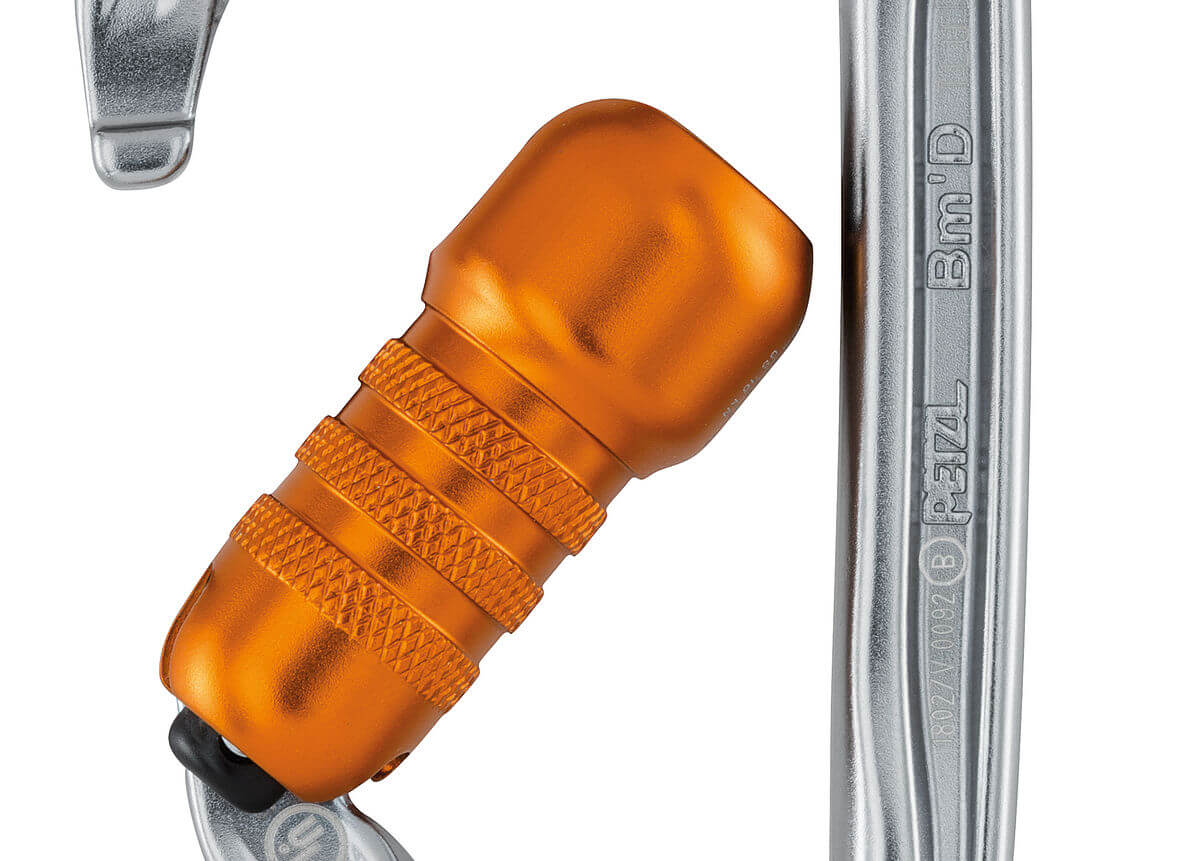

• H-shaped cross-section:
  - Ensures an optimal strength/weight ratio
  - Protects markings from abrasion

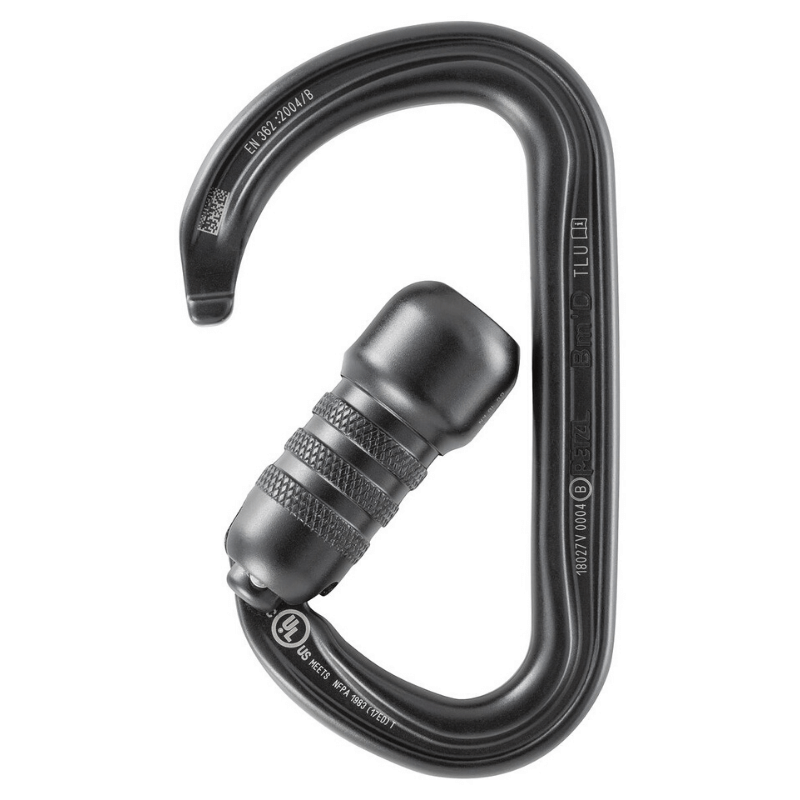

• TRIACT-LOCK automatic locking system with triple-action gate opening

• Can be used with a CAPTIV positioning bar to promote loading of the carabiner on the major axis, to keep it integrated with the device and to limit the risk of rotation

RESOURCES

Technical Notice

Declaration of Conformity

PPE Inspection Procedure
