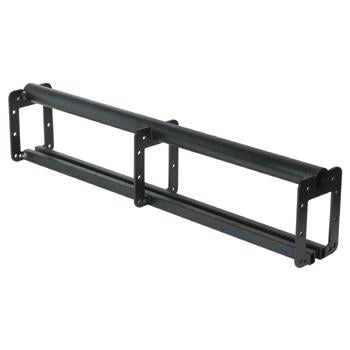

Doughty Theatre Curtain Track (Six Track) Straight Sections serve as the core component of any straight theatre curtain track system. Manufactured to precision, these straight track sections are available in standard lengths from 0.8' to 9.8', with custom lengths available upon request to suit specific stage requirements.

Engineered for seamless integration, each Six Track straight section is pre-drilled to accept all Doughty components, ensuring a reliable and customizable curtain movement system. The recommended maximum single track length is 32.8’, with a maximum overlapped track length of 59’, providing flexible configuration options for various stage sizes.

When custom lengths are needed, these tracks can be cut on-site and terminated using a Bolt-On End Plate, or used mid-track with an Adaptor Plate to allow runner pass-through. Each section includes a joint plate to ensure precise alignment during installation. For a complete solution, theatre curtain track kits that include all necessary components are also available.

Downloads:

User Manual

Key Features:

• Available in standard lengths from 0.8' to 9.8' with custom options on request
• Pre-drilled for compatibility with all Doughty Six Track components
• Supports a maximum single track length of 32.8' and overlapped track length of 59'
• Includes joint plate for precise alignment during installation
• Compatible with Bolt-On End Plate and Adaptor Plate for custom-cut sections

Specifications:

• Material: Steel
• Finish: Black Powder Paint

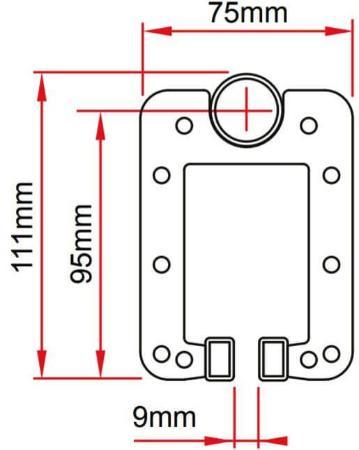

• Dimensions: 3' x 4.4'
• Length & Weight:
  T63705 - 0.8' & 1.4 lbs
  T63706 - 1.64' & 2.6 lbs
  T63707 - 2.46' & 4.39 lbs
  T63708 - 3.28' & 5.93 lbs
  T63710 - 6.56' & 9.85 lbs
  T63715 - 9.84' & 14.79 lbs

References:

• Bolt-On End Plate
• Adaptor Plate
• Theatre Curtain Track Blog

Doughty Engineering, established in the UK in 1985, is a globally recognized manufacturer of rigging, suspension, and lifting equipment for the entertainment industry. All products undergo rigorous testing and, where applicable, are TÜV certified for safety and performance. Doughty® is a member of ESTA and PLASA, adhering to the highest standards in entertainment technology manufacturing.
