Doughty Theatre Curtain Track (Six Track) End Plate/Adaptor Plate

Doughty Theatre Curtain Track (Six Track) End Plate/Adaptor Plate

Doughty Six Track is a theatre curtain track system made up from a variety of interchangeable parts to provide a flexible efficient system. Six Track straight sections can be cut on-site and fitted with an Adaptor Plate or End Plate. A minimum of four fixings is required per joint. For any inquiries, please contact us via chat.

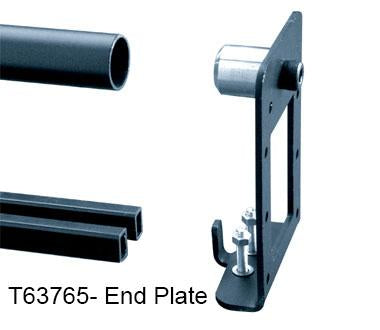

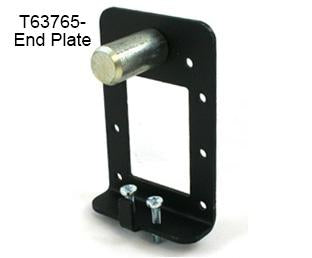

End Plate (T63765): It is used to terminate a section of Six Track which has been cut to a customized size on site. By using this plate you can greatly reduce installation time by not using special 'one-off' sections. Besides, on-site welding is not required. Two 5mm diameter holes are required to be drilled.

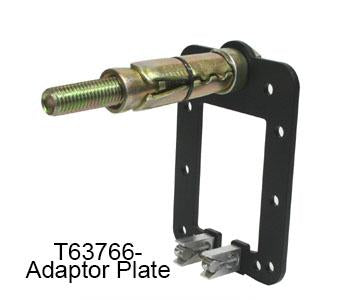

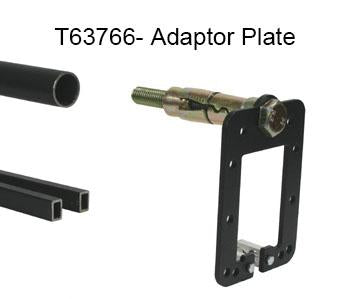

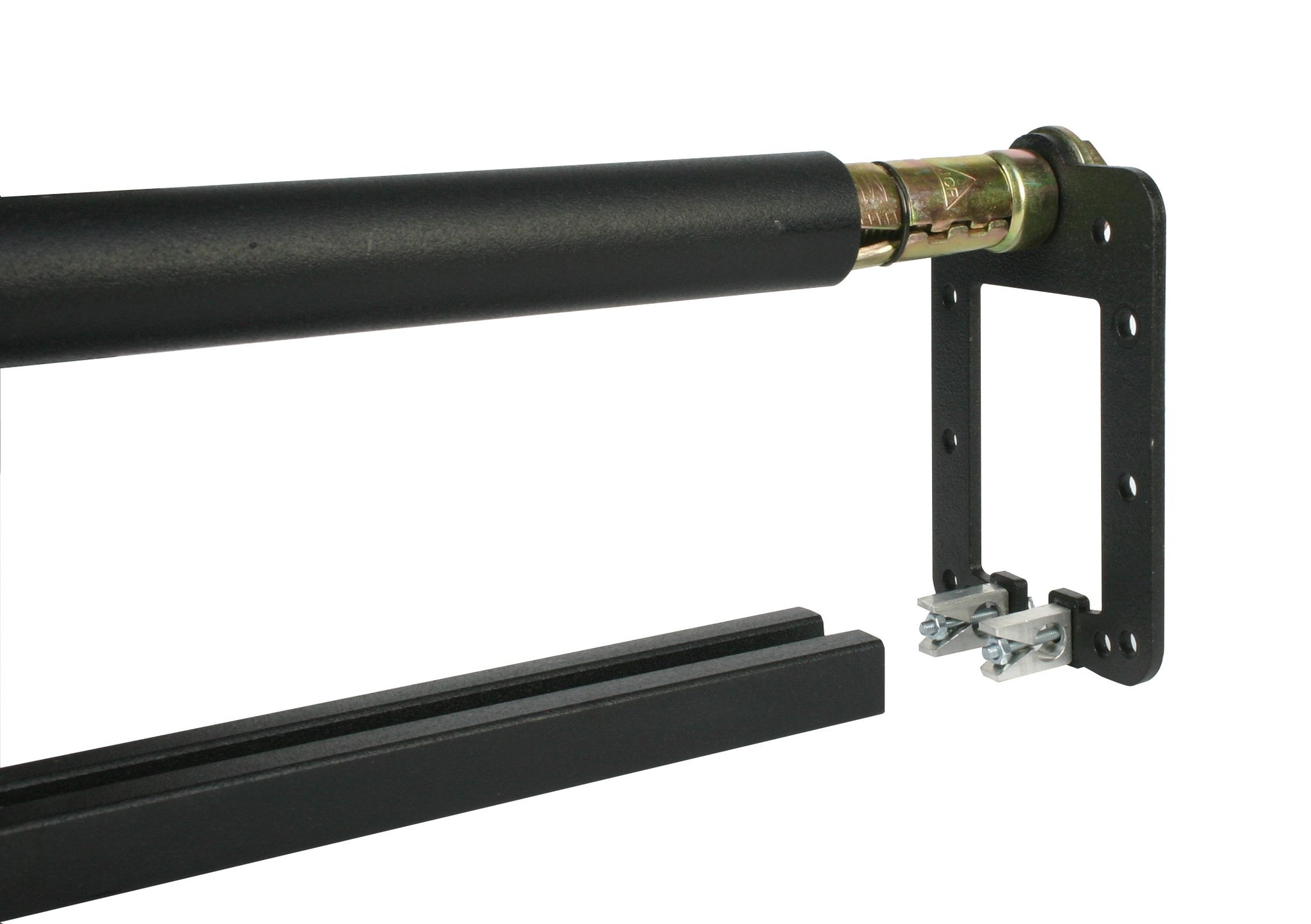

Adaptor Plate (T63766): It uses three expanding plugs to terminate a standard piece of track which has been cut to a special length. This plate allows runners to pass through it, allowing it to be used in the middle of the track as well.

Downloads:

User Manual

Key Features:

• Compatible with Doughty Six Track curtain track systems
• End Plate (T63765) enables termination of custom-cut track sections
• Adaptor Plate (T63766) allows runners to pass through, ideal for mid-track placement
• Reduces installation time and eliminates need for on-site welding
• Requires minimal drilling: two 5mm holes for End Plate, three expanding plugs for Adaptor Plate

Specifications:

• Product Type: End Plate / Adaptor Plate
• End Plate Model: T63765
• Adaptor Plate Model: T63766
• Drilling Requirement (End Plate): Two 5mm diameter holes
• Fixing Requirement: Minimum of four fixings per joint

References:

• Six Track Straight Sections
• Blog on Theatre Curtain Track
• Doughty Six Track User Manual

Doughty Engineering is a UK-based manufacturer of rigging, suspension, and lifting equipment for entertainment venues. Established in 1985, Doughty is a global leader in theatre, TV, and film hardware, known for its commitment to quality and safety. Products are TÜV-tested and Doughty is a proud member of ESTA and PLASA.
