Oz levantando el carrito de ajuste rápido

Ningún producto. OZ05QAT

Precio habitual $162.07 USD
CAPACIDAD
Fecha de entrega estimada
Seleccione el país
Ingrese el código postal correcto
Métodos de pago
amazon_pay american_express apple_pay diners_club discover google_pay master shopify_pay visa
Detalles del producto

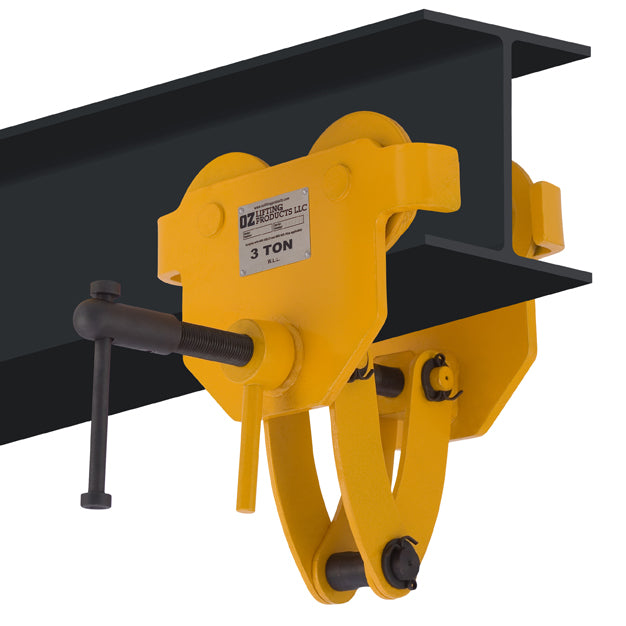

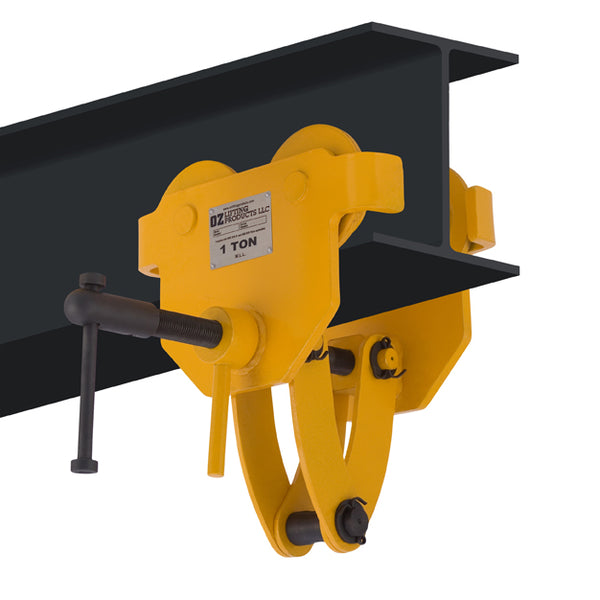

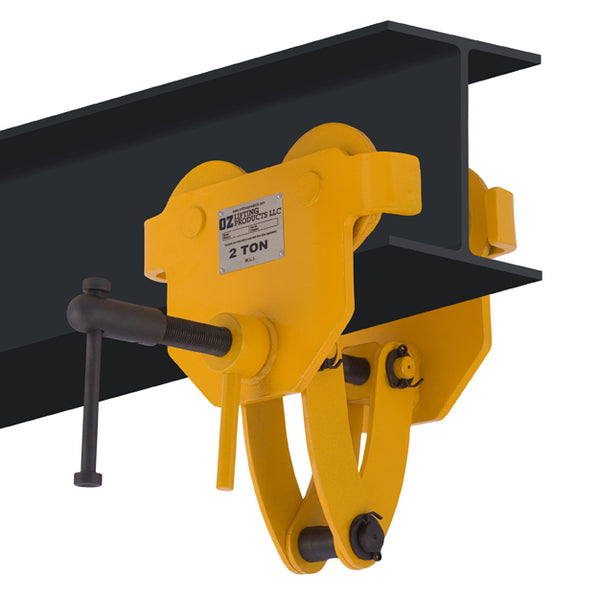

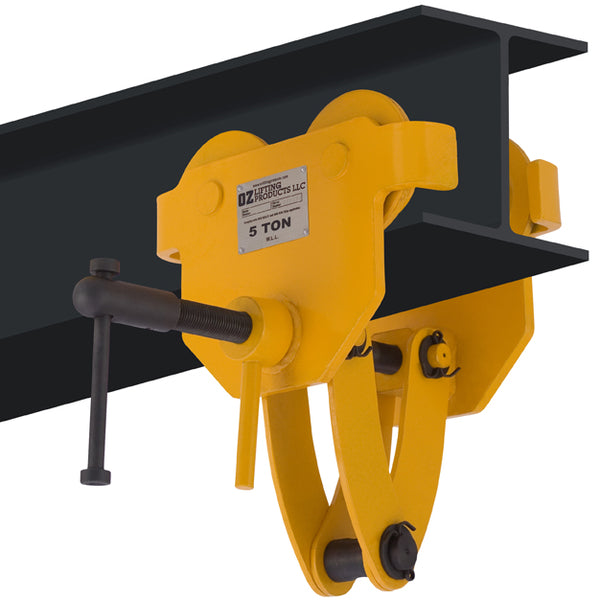

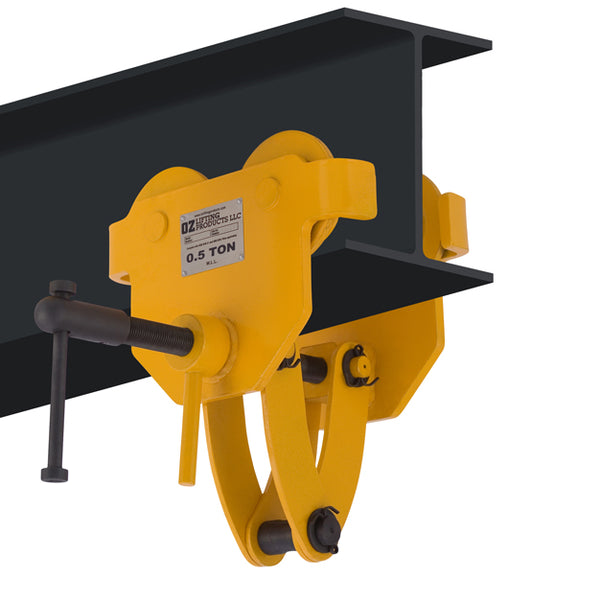

Oz levantando el carrito de ajuste rápido

El levantamiento de Oz Carrido de ajuste rápido está diseñado para un accesorio súper rápido a la mayoría de las vigas I, S y W. El carrito presenta un bloqueo de mango de seguridad para mayor protección y está disponible en capacidades de elevación que van desde 0.5 toneladas y 10 toneladas. El carrito está diseñado para su uso con polipastos manuales o alimentados.

Características

  • Construcción liviana y robusta.
  • Ajuste súper cicatizado a la mayoría de las vigas I, S y W (ver mediciones a continuación)
  • Bloqueo de mango de seguridad
  • Protección de pintura de enmelaje horneado duradero
  • Ruedas de carrito de rodamiento de bolas de precisión
  • Placa anti-gota
  • Etiqueta de identificación de acero inoxidable
  • Certificado de prueba individual y número de serie
Normas - CE, ASME B30.11, ASME B30.16
(para usar con polipastos manuales o potenciados)

Oz05qat Oz1qat Oz2qat Oz3qat Oz5qat Oz10qat
Carga de trabajo segura (LBS) 1,000 2,000 4,000 6,000 10,000 20,000
Ancho de brida ajustable (IN) 3.63-7.12 2.48-8.27 2.99-8.27 2.99-8.27 3.94-12.01 6.89-12.01
Espesor de brida máxima (in) 1.44 2 2.17 1.42 3.07 2.13
Información dimensional (IN) A 11.75 13.98 14.71 14.17 18.50 18.90
B 8.00 9.53 11.06 12.91 14.84 17.91
C .75 .88 .88 .97 1.11 1.65
(mínimo máximo) D 5.87-7.12 5.75-7.22 6.06-7.22 6.35-7.97 8.81-10.61 9.00-10.51
Radio de la curva mínima (FT) 3.28 3.28 3.61 4.26 4.60 5.57
Peso neto (LBS) 13 25 38 57 102 205

*Las dimensiones son solo de referencia y están sujetas a cambios sin previo aviso.

Oz05qat Oz1qat Oz2qat Oz3qat Oz5qat Oz10qat
E (en) 3.22 4.02 5.00 5.79 6.30 7.34
F (en) 2.28 2.96 3.55 4.34 4.81 5.96
