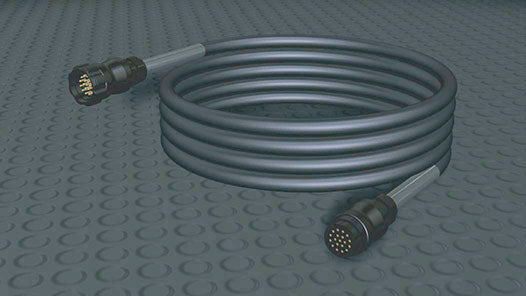

Motion Labs 19 Pin Overmolded Multicable, 12/14 AWM
- 19 Pin, VSC Compatible: Aluminium circular connectors with a bonded ground ring on pins 13 to 18.
- Overmolded Strain Relief: Rubberised overmold replaces metal backshells and resists pull, flex and twist.
- 12/14 AWM Cable: 600V, 90°C multicable with UL/CSA connectors. Cable is not UL listed.
- 25 ft to 150 ft: Six lengths, from 14 lb at 25 ft to 84 lb at 150 ft.
Motion Labs 19 Pin Overmolded Multicable, 12/14 AWM
The Motion Labs 19 Pin Overmolded Multicable is a 12/14 AWM multicable rated 600V and 90°C, fitted with overmolded 19 pin circular connectors and a bonded ground ring. The VSC compatible connectors have aluminium bodies, and the cable is available in lengths from 25 ft to 150 ft.
Key Features and Highlights
- 19 Pin, VSC Compatible: Circular connectors with aluminium bodies and crimp or solder termination, UL/CSA certified.
- Overmolded Strain Relief: A rubberised overmold replaces the metal backshell and holds the connector and cable as one piece.
- Bonded Ground Ring: Ground ring on pins 13 to 18.
- 12/14 AWM Cable: Rated 600V and 90°C.
- Six Lengths: 25, 50, 75, 100, 125 or 150 ft, weighing from 14 lb to 84 lb.
- Ready to Label: 6 in clear heat shrink on each end for your labels.
Why Choose This Product?
On a mechanical connector, the conductors can become stressed at the terminations and the insert can loosen and spin. Overmolding locks the cable and connector together, which Motion Labs states improves shock absorption, pull strength and flex relief. It also removes torsion between the cable and connector, reducing the risk of burnt or pushed-back pins, shorts and hot spots.
Who Is This Product For?
Ideal for: lighting and production crews and rental houses that run 19 pin multicable.
Important: The connectors are UL/CSA certified, but the 12/14 AWM cable is not UL listed.
Materials and Construction
Motion Labs uses a two-step overmolding process. First, an injected polymer encapsulates the conductors and pins or sockets in a custom mold. Then a rubberised outer layer is molded over the assembly, replacing the metal backshell. To check your 19 pin cables before each job, Motion Labs also makes the CT-004 touchscreen cable tester.
