Green Pin® JJ Turnbuckle CP G-6313 - Van Beest

Green Pin® JJ Turnbuckle CP - Van Beest

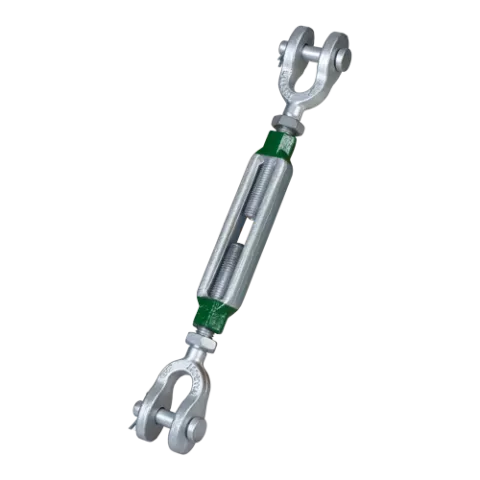

The Green Pin® JJ Turnbuckle CP is a high-quality turnbuckle with jaw-jaw end-fittings and cotter pins, generally manufactured to ASTM F1145-92 standards. This versatile component is suitable for both lifting and lashing applications, offering enhanced flexibility in heavy-duty operations. Hot dipped galvanization ensures long-term durability, even in challenging environments. The Green Pin® JJ Turnbuckle CP is available in a wide range with thread diameters from 3/4" (take up of 6") up to 2 3/4" (take up of 24").

Engineered for strength and reliability, this turnbuckle is crafted from drop forged high tensile steel SAE 1035 or 1045 and delivers a minimum breaking load (MBL) of five times the working load limit (WLL). Certified to multiple international standards, it’s an ideal choice for professionals demanding performance and safety.

Whether used in marine, construction, or industrial rigging applications, the Green Pin® JJ Turnbuckle CP ensures secure and stable tensioning.

Key Features:

• Jaw-jaw end-fittings with cotter pins for secure connections
• Meets ASTM F1145-92 (formerly U.S. Federal Specification FF-T-791b)
• Suitable for both lifting and lashing applications
• Hot dipped galvanized finish for superior corrosion resistance
• Available in a wide range of sizes from 3/4" to 2 3/4" thread diameter

Specifications:

• Product Code: G-6313
• Material: drop forged high tensile steel SAE 1035 or 1045
• Safety factor: MBL equals 5 x WLL
• Finish: hot dipped galvanized
• Temp. range: -20°C up to +200°C

References:

• Certification: 2.1, 2.2, 3.1, MTCa, CE
• Standard: generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
• Available Sizes and Technical Data:
