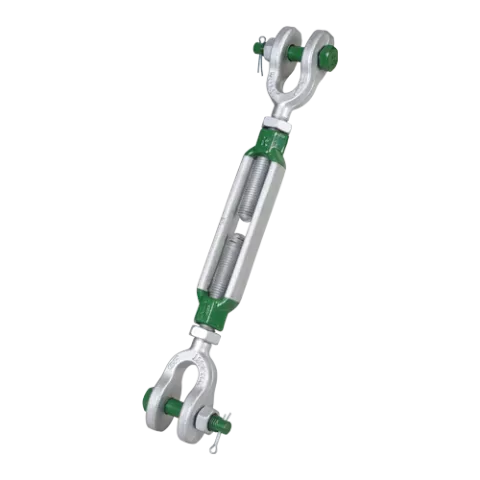

Green Pin® JJ Turnbuckle BN - Van Beest


Turnbuckle with jaw-jaw end-fitting and safety bolt, generally to ASTM F1145-92.

The Green Pin® JJ Turnbuckle BN is a turnbuckle with jaw-jaw end-fitting and a safety bolt, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. The turnbuckle also offers a double safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. The Green Pin® JJ Turnbuckle BN is available in a range with a diameter thread of 3/8" (take up of 6") up to 2 3/4" (take up of 24").





Key Features:

  • Jaw-jaw end-fitting with safety bolt for secure connections
  • Conforms generally to ASTM F1145-92 standard
  • Suitable for both lifting and lashing applications
  • Double safety design: cotter pin and safety bolt prevent accidental unscrewing
  • Available in multiple sizes with take up lengths from 6" to 24"




Specifications:

  • Product Code: G-6323
  • Material: Drop forged high tensile steel SAE 1035 or 1045
  • Finish: Hot dipped galvanized
  • Temperature Range: -20°C up to +200°C
  • Safety Factor: MBL equals 5 x WLL




References:

  • Certification: 2.1, 2.2, 3.1, MTCa, CE
  • Standard: Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
  • Available Sizes and Technical Specifications:


Article code working load limit (ton) take up (inch) diameter thread (inch) length closed position (mm) length open position (mm) length closed position (mm) opening jaw (mm) length inside (mm) diameter pin (mm) thickness jaw eye (mm) diameter jaw eye (mm) Net weight (KG)
SSGPGG1006 0.54 6 3/8 273 409 304 12 21 7 9 21 0.55
SSGPGG1206 1 6 1/2 304 435 343 16 26 10 11 25 0.97
SSGPGG1209 1 9 1/2 379 588 418 16 26 10 11 25 1.15
SSGPGG1212 1 12 1/2 455 740 494 16 26 10 11 25 1.46
SSGPGG1606 1.59 6 5/8 346 469 406 18 32 13 14 33 1.75
SSGPGG1609 1.59 9 5/8 421 622 480 18 32 13 14 33 2.14
SSGPGG1612 1.59 12 5/8 498 774 557 18 32 13 14 33 2.43
