Green Pin® EJ Turnbuckle G-6315 - Van Beest

Ningún producto. SSGPGO2518

Precio habitual $178.89 $178.89
ARTICLE CODE
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Fecha de entrega estimada
Seleccione el país
Ingrese el código postal correcto
Métodos de pago
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Detalles del producto

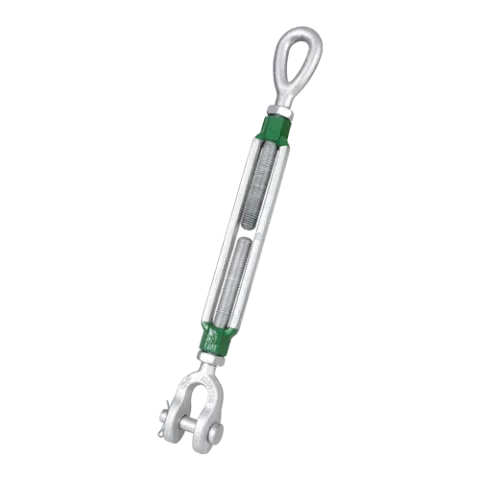

Green Pin® EJ Turnbuckle - Van Beest


The Green Pin® EJ Turnbuckle is a turnbuckle with eye-jaw end-fittings, generally to ASTM F1145-92. The jaw is fitted with a safety bolt for sizes with a diameter thread up to 5/8" and fitted with a cotter pin for sizes with a diameter thread 3/4" and up. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin® EJ Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8" (take up of 6") up to 2 3/4" (take up of 24").

Turnbuckle with eye-jaw end-fitting and cotter pin or safety bolt (depending on size), generally to ASTM F1145-92



Downloads:

Technical Datasheet




Key Features:

  • Eye-jaw end-fitting design with cotter pin or safety bolt (depending on size)
  • Complies generally with ASTM F1145-92 standards
  • Usable for both lifting and lashing applications
  • Hot dipped galvanized finish for extended durability
  • Available with thread diameters from 3/8" (6" take up) to 2 3/4" (24" take up)




Specifications:

  • Product Code: G-6315
  • Material: drop forged high tensile steel SAE 1035 or 1045
  • Safety Factor: MBL equals 5 x WLL
  • Finish: hot dipped galvanized
  • Temperature Range: -20°C up to +200°C




References:

  • Certification: 2.1, 2.2, 3.1, MTCa, CE
  • Standard: generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b
  • SSGPGO2518




Article code working load limit (ton) take up (inch) diameter thread (inch) length closed position (mm) length open position (mm) opening jaw (mm) inside length jaw (mm) diameter pin jaw (mm) thickness eye jaw (mm) diameter eye jaw (mm) diameter eye (mm) inside width eye (mm) inside length eye (mm) length closed position (mm) Net weight (KG)
SSGPGO2518 4,54 18 1 776 1190 31 50 22 20 54 24 37 76 117 7.1
