Doughty Weld Coupler

Ningún producto. T57230

Precio habitual $50.90 $50.90
COLOUR
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Fecha de entrega estimada
Seleccione el país
Ingrese el código postal correcto
Métodos de pago
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Detalles del producto

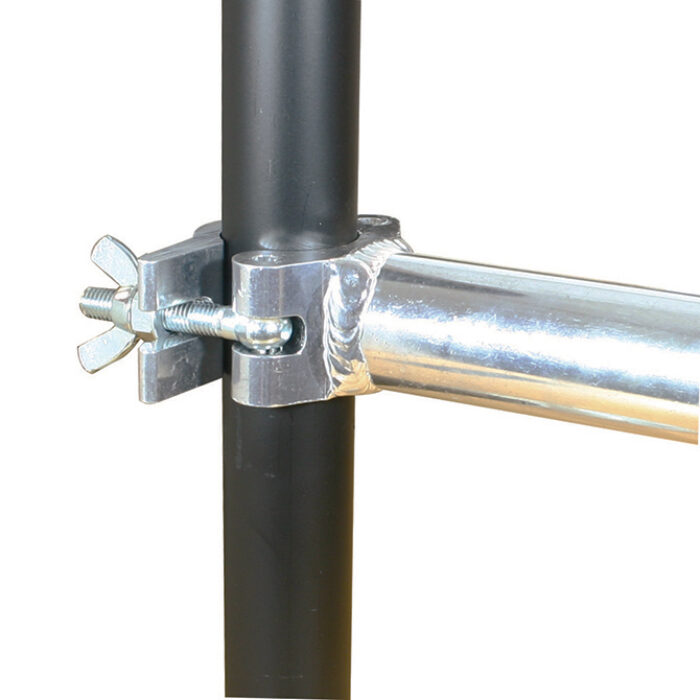

Doughty Weld Coupler


A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide.

This clamp is suitable for welding and can be used in the construction of special one off items.

Ideal for applications where custom fabrication is required, the Doughty Weld Coupler offers strength and flexibility for bespoke rigging solutions.


Downloads:

Data Sheet



Key Features:

  • Constructed from high tensile extruded aluminium
  • Compatible with 48mm – 51mm (1.89″ – 2.01″) diameter tubes
  • Clamp width of 50mm (1.97″) for stable connections
  • Designed for welding and permanent installations
  • Ideal for customized and one-off construction projects

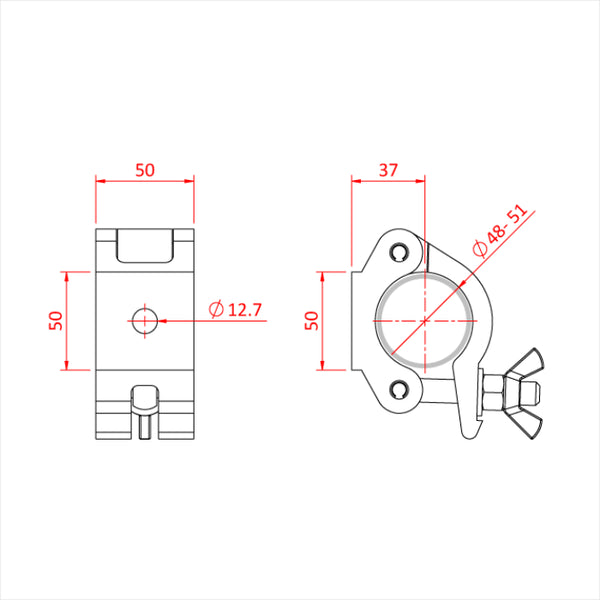

Specifications:

  • WLL: Not Rated
  • Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
  • Clamp Width: 50mm (1.97")



References:

  • Doughty Engineering Official Documentation
  • Product Code: T57230
  • Manufacturer: Doughty Engineering


Enhance your rigging setup with the Doughty Weld Coupler – engineered for strength, precision, and custom fabrication.
