Doughty Aluminium Braced Boom Arms

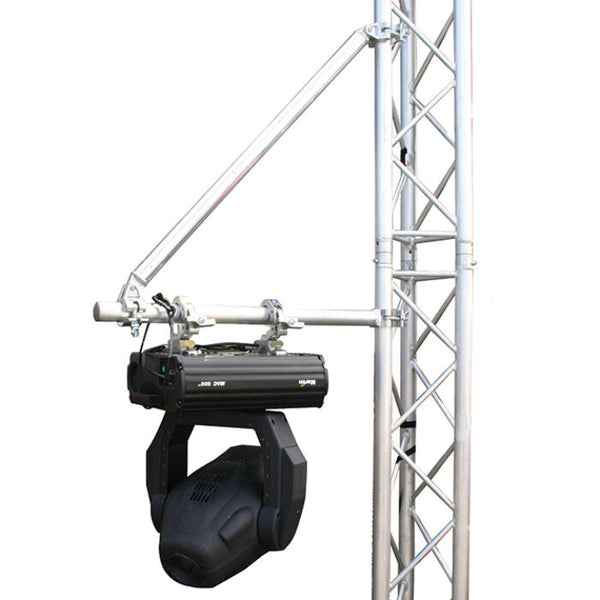

An aluminium Braced Boom Arm is ideal for flying heavy luminaries such as moving heads from vertical bars or trusses. Suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tube, the diagonal brace eliminates movement or flexing in the boom arm. Manufactured with two articulated joints, most mounting situations can be accommodated.
Available as a 1000mm (39.37″) Boom Arm complete with the brace or the brace is available on its own.
Custom sizes are available to special order.
Downloads:
Key Features:
- Designed for flying heavy luminaries such as moving heads
- Fits 48mm to 51mm (1.89″ – 2.01″) diameter vertical tubes or trusses
- Diagonal brace minimizes movement and flexing
- Two articulated joints allow versatile mounting options
- Available in silver or black powder paint finish
Specifications:
- WLL: 100Kg

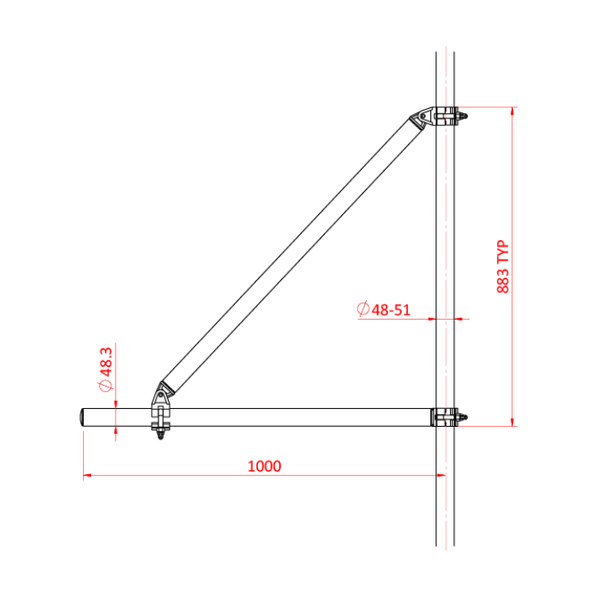

- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Finish: Silver Powder Paint, Black Powder Paint
- Clamp Width: 50mm (1.97")

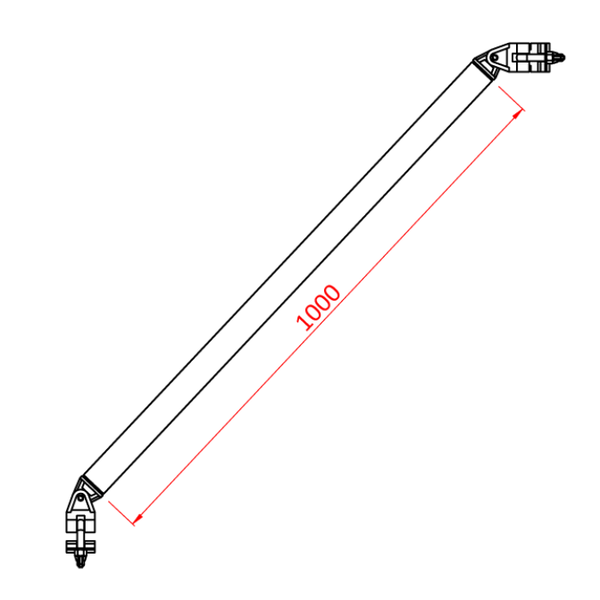

- Length: 1000mm (39.37″) Boom Arm
References:
- Doughty Engineering Product Range
- Stage and Studio Rigging Applications
- Technical Specification Sheet
