Doughty 38mm Half Coupler - Atom Clamps

Ningún producto. T58970

Precio habitual $34.62 $34.62
COLOUR
Save $25 when you subscribe to our newsletter (for orders over $250). Subscribe now
Fecha de entrega estimada
Seleccione el país
Ingrese el código postal correcto
Métodos de pago
amazon_payamerican_expressapple_paydiners_clubdiscovergoogle_paymasterpaypalshopify_payvenmovisa
Detalles del producto

Doughty 38mm Half Coupler - Atom Clamps

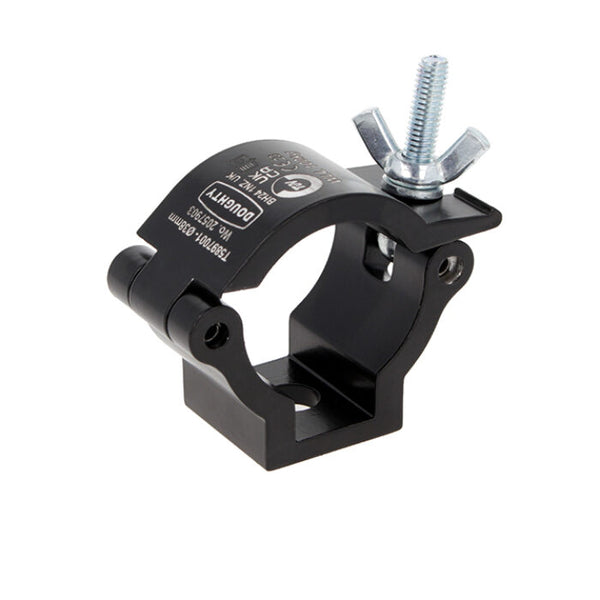

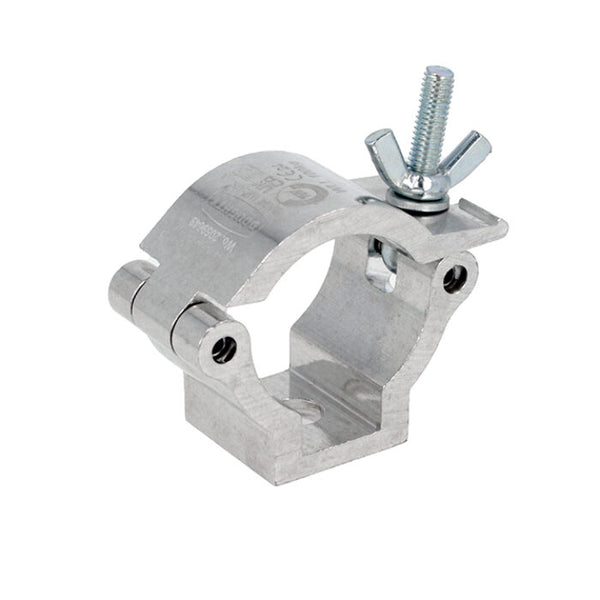

A high tensile extruded aluminium clamp that is suitable for 38mm (1.5″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M10 nut or bolt head. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.






Downloads:

User Manual




Key Features:

  • Constructed from high tensile extruded aluminium for strength and durability
  • Compatible with 38mm (1.5″) diameter tubes
  • Working Load Limit (WLL) of 100Kg
  • Slotted design securely holds an M10 nut or bolt head
  • Available in polished silver or powder coated black finish

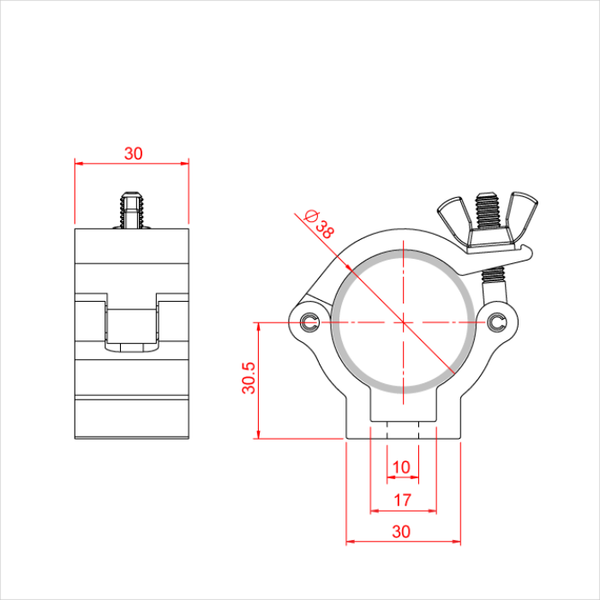

Specifications:

  • WLL: 100Kg
  • Tube Diameter: 1½"-38mm
  • Clamp Width: 30mm (1.18")
  • Material: High tensile extruded aluminium
  • Finish: Polished silver or powder coated black




References:

  • Doughty Engineering
  • Product Code: T58970 / T5897001
  • Data Sheet
